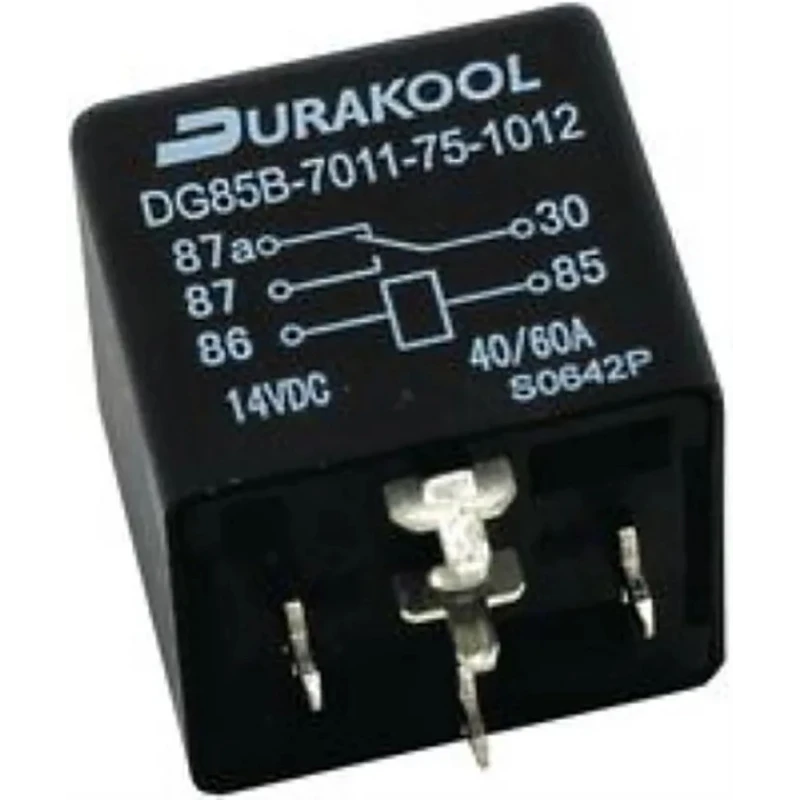

Durakool PCB Power Relay 12V dc Coil 60A Switching Current SPDT DG85B-7011-75-1012
Specifications
| Country of Origin | China |
|---|---|
| Brand | Durakool |
| Height | 25mm |
| Length | 28.3mm |
| Model | DG85B-7011-75-1012 |
| Width | 28.3mm |
| Mount Type | PCB |
| Contact Material | Silver Tin Oxide Indium |
| Series | DG85B |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 60A |
| Terminal type | Quick Connect |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 90Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 30V ac |
| Coil Power | 1.81W |
Key Features
- This relay is designed for PCB mounting with quick connect terminals for easy installation.
- It operates efficiently within a temperature range of -40°C to 125°C.
- The relay supports switching voltages up to 30V dc and 30V ac, suitable for varied electrical applications.
- The coil resistance is 90 ohms, consuming 1.81W of coil power during operation.
- Contact materials consist of Silver Tin Oxide Indium, ensuring low contact resistance of 100 milliohms.

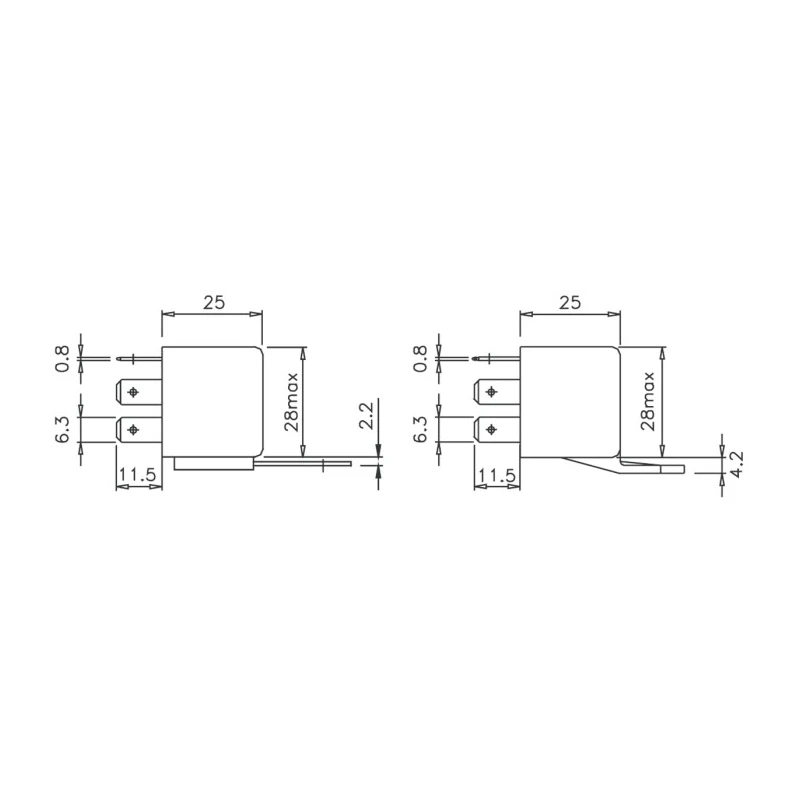

- The relay dimensions are compact, measuring 28.3mm in length, 28.3mm in width, and 25mm in height.
- It complies with RoHS standards, reflecting environmentally responsible manufacturing.
- This relay is well-suited for automotive and general-purpose electrical control circuits.
Product Description
Durakool DG85B-7011-75-1012 PCB Power Relay is a precision-engineered electrical component designed to provide reliable switching in automotive and industrial PCB-mounted applications. Featuring a 12V dc coil voltage and a switching current capacity of 60A, this SPDT relay excels in controlling medium to high current DC circuits with robustness and efficiency.
This power relay supports a maximum switching voltage of 30V dc and 30V ac, enabling its use in a variety of control and automation scenarios. The coil resistance of 90 ohms and coil power consumption of 1.81W ensure energy-efficient operation while maintaining responsive switching.
The relay's quick connect terminal type and industry-standard size dimensions of 28.3mm length, 28.3mm width, and 25mm height facilitate straightforward installation on PCBs, minimizing assembly effort. Its durable contacts made from Silver Tin Oxide Indium alloys offer low contact resistance of 100 milliohms, supporting sustained electrical performance and reliability.
Operating reliably across a wide temperature range from -40°C to 125°C, the DG85B-7011-75-1012 relay is suitable for demanding environments commonly found in automotive and industrial control applications. Furthermore, it meets RoHS compliance standards, confirming its environmentally responsible design and manufacture.
This relay is ideal for use in DC motor control, signal conditioning, and general power relay roles within electrical and automation systems. The robust construction and high inrush current resistance enhance longevity under repeated switching cycles.
This relay is designed for PCB mounting with quick connect terminals for easy installation. Durakool's DG85 series ensures a high life cycle and resistance to inrush current. Compact dimensions facilitate integration into a variety of equipment and control boards.
Silver Tin Oxide Indium contacts provide durability and low resistance. Compliant with RoHS environmental standards for safe industrial use.
For professionals seeking reliable, high-capacity power relays for automotive or industrial PCB circuits, the Durakool DG85B-7011-75-1012 offers performance and dependability. Explore more Power Relays and electrical components in the EnvMart catalogue to find matching solutions tailored to your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a maximum switching current capacity of 60A, making it suitable for medium to high current DC circuits.
This model operates with a coil voltage of 12V dc.
The relay measures 28.3mm in length, 28.3mm in width, and 25mm in height, allowing for compact PCB mounting.
It features a Single Pole Double Throw (SPDT) contact configuration.
The relay operates efficiently within a temperature range of -40°C to 125°C.
It is equipped with quick connect terminals for easy installation on PCBs.
The contacts are made from Silver Tin Oxide Indium, which provides low contact resistance.
This relay supports a maximum switching voltage of 30V dc and 30V ac.
The coil resistance is 90 ohms, consuming 1.81W of coil power during operation.
Yes, the relay complies with RoHS standards, indicating environmentally responsible manufacturing.
It is well-suited for automotive and general-purpose electrical control circuits, including DC motor control and signal conditioning.
The contact resistance is 100 milliohms, which supports sustained electrical performance.
