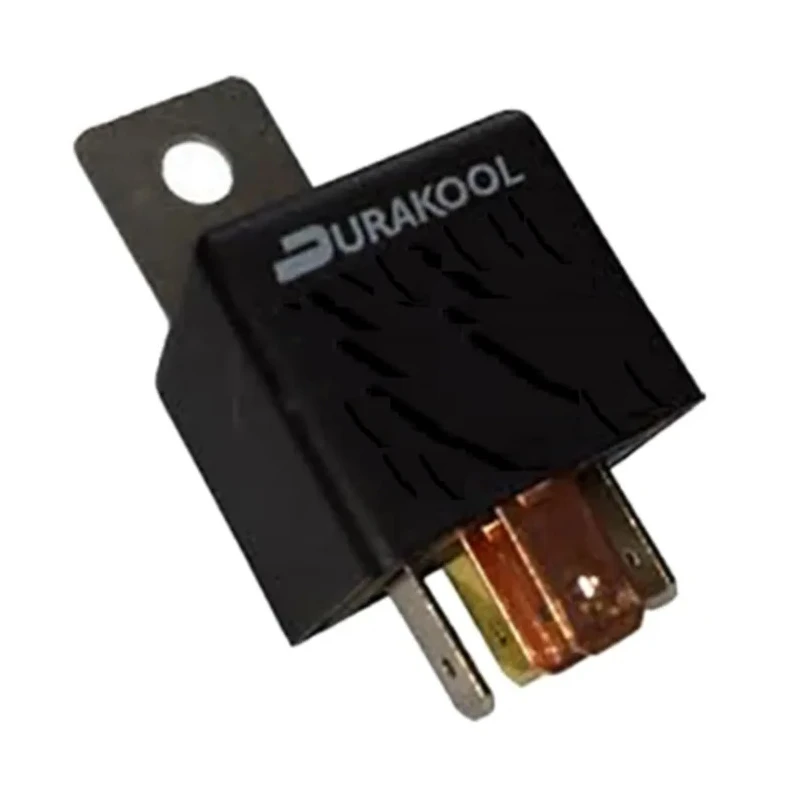

Durakool Power Relay 24V DC Coil 60A Switching Current SPDT DG85F-7011-96-1024-M1
Specifications
| Country of Origin | China |
|---|---|
| Brand | Durakool |
| Height | 47.4mm |
| Length | 28.3mm |
| Model | DG85F-7011-96-1024-M1 |
| Width | 28.3mm |
| Contact Material | Silver Tin Oxide Indium |
| Series | DG85F |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 60A |
| Terminal type | Quick Connect |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Coil Resistance | 250Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 24V ac |
| Coil Power | 2.3W |
Key Features
- Features a Single Pole Double Throw (SPDT) contact configuration.
- Designed with quick connect terminal type for easy installation.
- Coil resistance is 250 ohms, consuming 2.3W coil power.
- Operates within a temperature range of -40°C to 125°C for high reliability.
- Constructed with silver tin oxide indium contacts ensuring low contact resistance of 100mΩ.
- Industry standard dimensions with length and width of 28.3mm and height of 47.4mm.
- Suitable for DC motor control and high continuous DC current capacity.
Product Description
Durakool DG85F-7011-96-1024-M1 power relay is a high-quality PCB mount non-latching relay designed for industrial, domestic, and commercial use. It features a 24V DC coil voltage and supports switching currents up to 60A, making it highly suitable for controlling DC motors and other high-current DC loads. The relay utilizes a Single Pole Double Throw (SPDT) contact configuration and quick connect terminals for efficient and reliable switching.
The coil resistance of 250Ω and coil power of 2.3W ensures energy-efficient operation. Its robust design allows operation in extreme temperatures ranging from -40°C to 125°C, providing reliable performance in harsh environments. The relay's contact material uses silver tin oxide indium, which guarantees a low contact resistance of 100mΩ, enhancing switching performance and longevity.

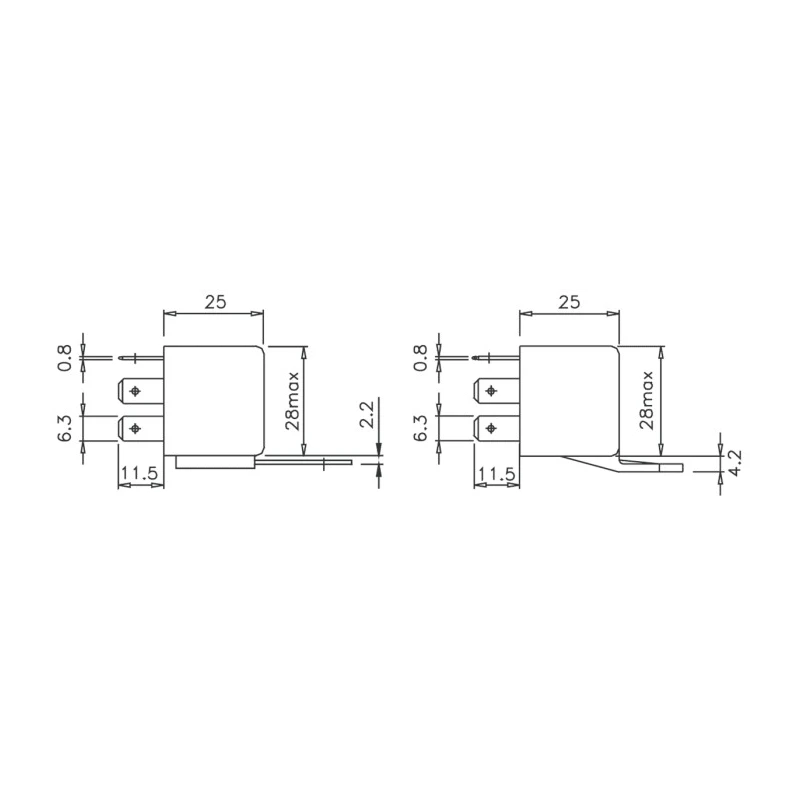

With dimensions of 28.3mm length, 28.3mm width, and 47.4mm height, the relay conforms to industry standard size and footprint, allowing easy integration into standard PCBs and systems. It holds compliance with important standards such as RoHS, ANSI/ESD S20.20:2014, and BS EN 61340-5-1:2007, ensuring environmental and safety quality.
The Durakool DG85 series is widely used in industrial automation, electrical control systems, HVAC, manufacturing, and other commercial applications requiring reliable power relay switching. Quick connect terminals simplify installation while supporting high inrush current capabilities and continuous DC current loads.
This power relay is manufactured in China and delivered as new condition, ready for immediate deployment in your electrical or automation systems. Features a Single Pole Double Throw (SPDT) contact configuration. Designed with quick connect terminal type for easy installation.
Coil resistance is 250 ohms, consuming 2.3W coil power. Operates within a temperature range of -40°C to 125°C for high reliability. Constructed with silver tin oxide indium contacts ensuring low contact resistance of 100mΩ.
Industry standard dimensions with length and width of 28.3mm and height of 47.4mm. Complies with RoHS, ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards. Suitable for DC motor control and high continuous DC current capacity.
Explore further Power Relay options from Durakool and other major brands at EnvMart’s Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of up to 60A, making it suitable for high-current DC loads.
The dimensions of this relay are 28.3mm in length, 28.3mm in width, and 47.4mm in height, conforming to industry standards.
The relay operates with a coil voltage of 24V DC, which is essential for its activation.
It features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching applications.
The coil resistance is 250 ohms, and it consumes 2.3W of power during operation.
This unit can operate within a temperature range of -40°C to 125°C, ensuring reliability in extreme conditions.
The contacts are made of silver tin oxide indium, which contributes to a low contact resistance of 100mΩ.
It complies with RoHS, ANSI/ESD S20.20:2014, and BS EN 61340-5-1:2007 standards, ensuring safety and environmental quality.
It is designed with quick connect terminals, facilitating easy and efficient installation.
This power relay is suitable for DC motor control and other high continuous DC current applications.
The contact resistance of this model is 100mΩ, enhancing its switching performance.
This relay is manufactured in China, ready for deployment in various electrical or automation systems.
