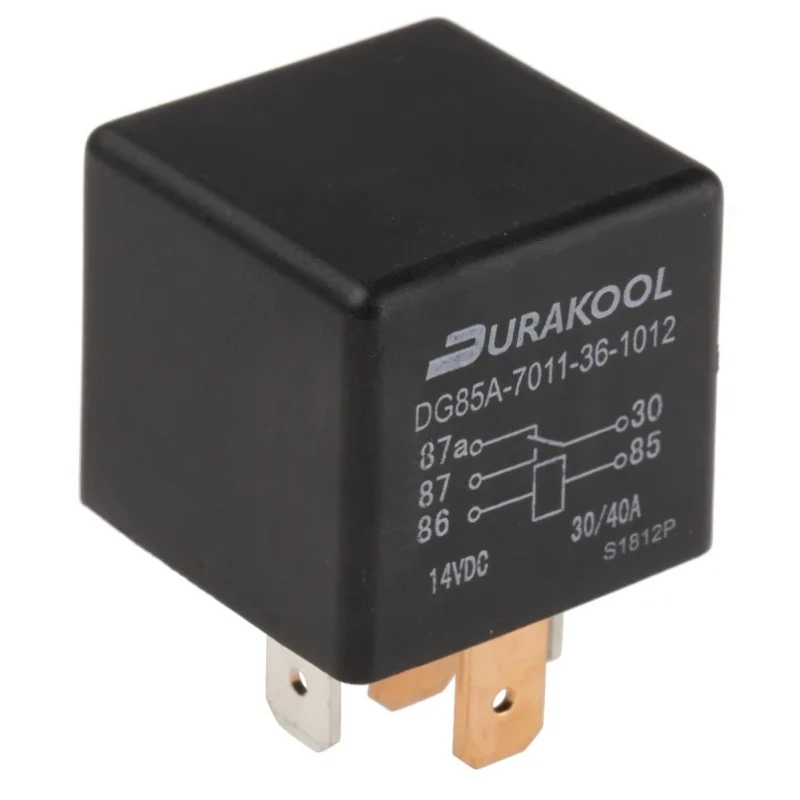

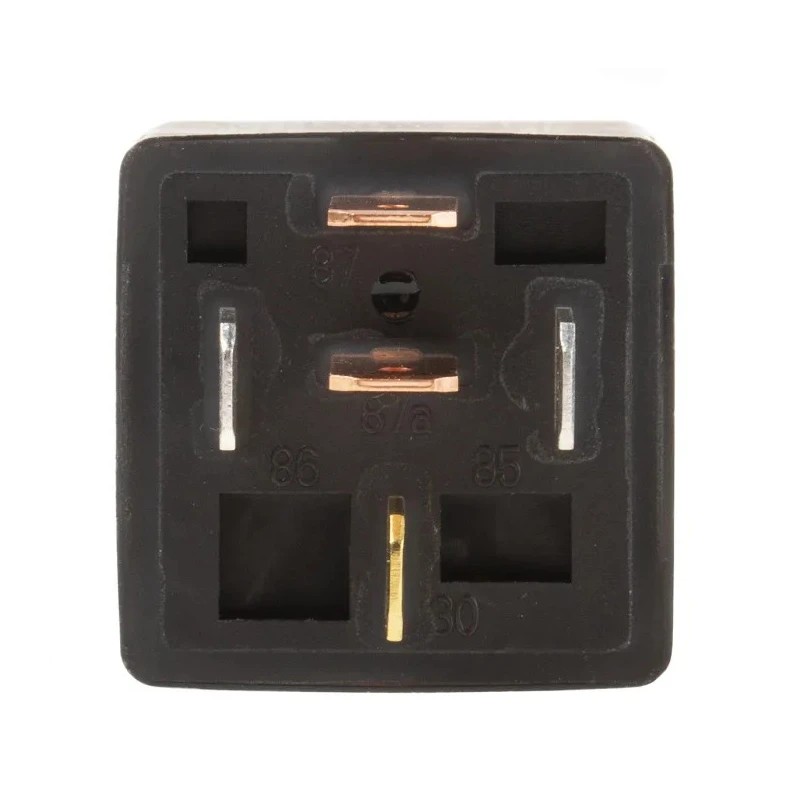

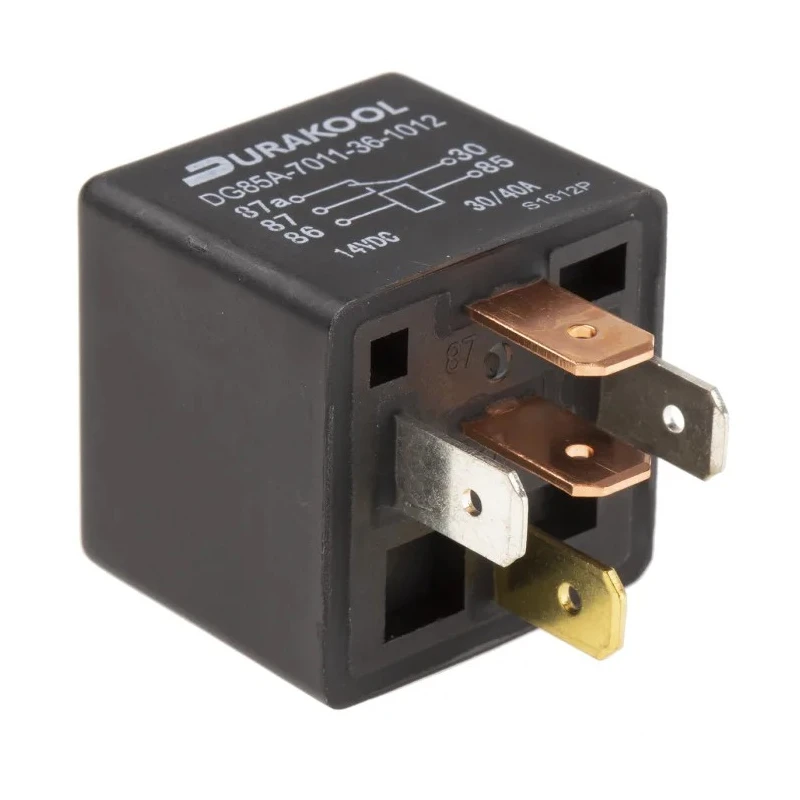

Durakool Power Relay, 12V dc Coil, 40A Switching Current, SPDT DG85A-7011-36-1012
Specifications
| Country of Origin | China |
|---|---|
| Brand | Durakool |
| Height | 25mm |
| Length | 28.3mm |
| Model | DG85A-7011-36-1012 |
| Width | 28.3mm |
| Contact Material | Silver Tin Oxide Indium |
| Series | DG85A |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 40A |
| Terminal type | Quick Connect |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 90Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 30V ac |
| Coil Power | 1.81W |
Key Features
- This power relay features a durable 12V DC coil designed for high reliability.
- SPDT contact configuration allows for versatile switching applications.
- Supports a maximum switching current of 40 amps for robust load handling.
- High resistance to inrush current ensures long operational life.

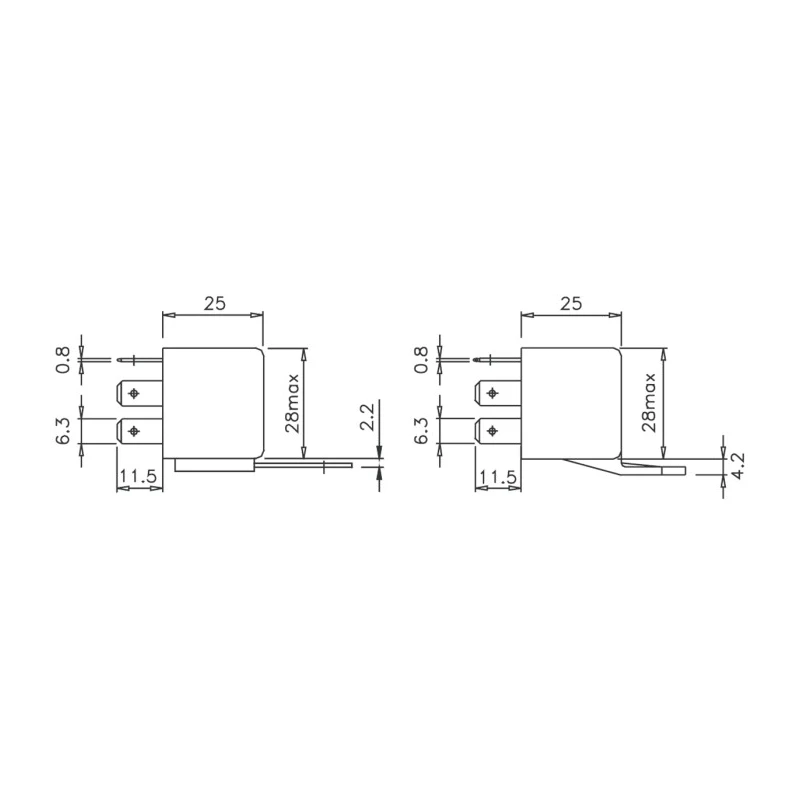

- Compact dimensions with 28.3mm length and width, and 25mm height.
- Coil resistance of 90 ohms and coil power consumption of 1.81 watts.
- Operates over a wide temperature range from -40°C to 125°C.
- Silver tin oxide indium contacts provide low contact resistance of 100 milliohms.
Product Description
Durakool DG85A-7011-36-1012 Power Relay is a high-quality automotive and general-purpose miniature power relay featuring a 12V DC coil and supporting a 40A switching current with SPDT contact configuration. Designed for durability and long service life, this relay exhibits high resistance to inrush current and is ideal for DC motor control and other automotive applications.
The relay has a compact industry-standard size with dimensions of 28.3mm in length and width, and 25mm in height, making it suitable for space-constrained installations. The coil resistance is rated at 90Ω, with a coil power consumption of 1.81W, ensuring efficient operation.
This product provides reliable switching at DC and AC voltages up to 30V, with a high maximum operating temperature tolerance of up to 125°C and minimum operating temperature down to -40°C, making it suitable for harsh environments.
The silver tin oxide indium contact material offers excellent conductivity and reduces contact resistance to 100 milliohms, assuring dependable electric connection. Installed using quick connect terminals, this relay simplifies maintenance and replacement tasks.
Compliant with RoHS standards, this relay meets current environmental and safety regulations. It is manufactured in China and widely utilized in automotive, industrial automation, and electrical control systems for effective power switching and motor control.
This power relay features a durable 12V DC coil designed for high reliability. SPDT contact configuration allows for versatile switching applications. Supports a maximum switching current of 40 amps for robust load handling.
High resistance to inrush current ensures long operational life. Compact dimensions with 28.3mm length and width, and 25mm height. Coil resistance of 90 ohms and coil power consumption of 1.81 watts. Operates over a wide temperature range from -40°C to 125°C.
Silver tin oxide indium contacts provide low contact resistance of 100 milliohms. Equipped with quick connect terminals for easy installation. RoHS compliant and manufactured in China. Explore more products in Power Relays and automotive relays at EnvMart for your industrial, automotive, and electrical automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 40 amps, allowing it to handle robust load applications.
This power relay has compact dimensions of 28.3mm in length and width, and 25mm in height, making it suitable for space-constrained installations.
The relay operates at a coil voltage of 12V DC with a power consumption of 1.81 watts.
The relay features a Single Pole Double Throw (SPDT) contact configuration, which allows for versatile switching applications.
The contact material of this model is silver tin oxide indium, which provides low contact resistance of 100 milliohms.
This relay operates over a wide temperature range from -40°C to 125°C, making it suitable for harsh environments.
It is equipped with quick connect terminals, which simplify the installation and maintenance process.
This model supports switching voltages of up to 30V for both DC and AC applications.
Yes, this power relay is RoHS compliant, meeting current environmental and safety regulations.
The coil resistance for this model is rated at 90 ohms, ensuring efficient operation.
This relay is manufactured in China.
This power relay is widely utilized in automotive, industrial automation, and electrical control systems for effective power switching and motor control.
