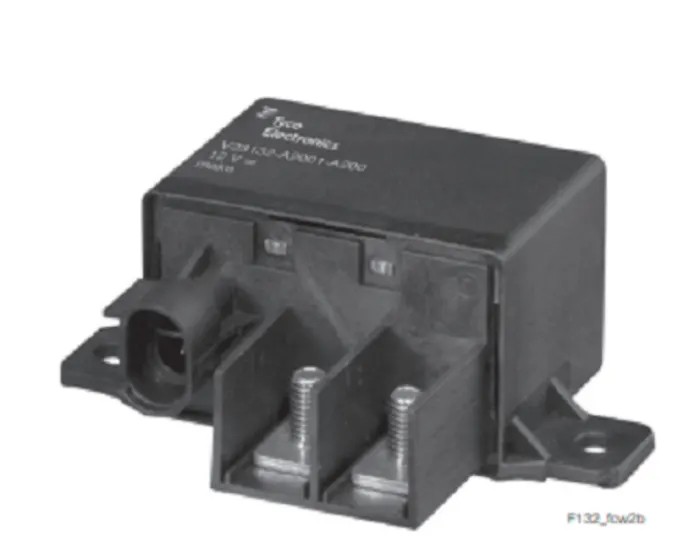

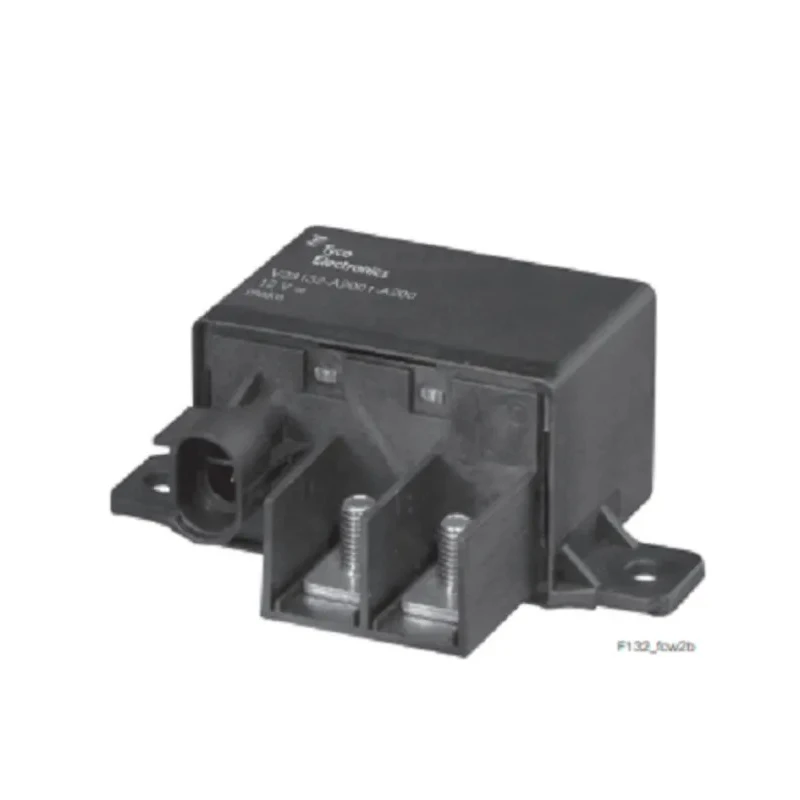

TE Connectivity Automotive Relay 12V DC Coil Voltage 20A Switching Current SPST 1416010-1
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 45mm |
| Length | 74.2mm |
| Depth | 40mm |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Coil Resistance | 37Ω |
| Coil Power | 3.9W |
Key Features
- Coil power rating of 3.9 watts ensures efficient operation.
- Coil resistance is 37 ohms providing reliable coil performance.
- Contact configuration is SPST for single pole single throw switching.
- Equipped with quick connect terminal type for easy installation.
- Operating temperature range from -40°C up to 125°C for durability in harsh environments.
- Compact size with height 45mm, depth 40mm, length 74.2mm.
- Contact material made from silver alloy to maintain low contact resistance.
- High continuous current rating of 130A at 85°C and switching capability up to 300A.
Product Description
TE Connectivity Model 1416010-1 Automotive Relay is engineered for reliable performance in automotive electrical systems with a 12V DC coil voltage and 20A maximum switching current, in an SPST contact configuration. This relay is suitable for controlling engine components, glow plugs, heated front screens, preheating systems such as those for diesel engines and catalytic converters, and switches for loading ramps and start/stop systems.
It features a coil power consumption of 3.9W and coil resistance of 37 ohms, ensuring efficient coil activation while minimizing power loss. The relay has quick connect terminals facilitating fast and secure wiring connections during installation.
With operating temperatures ranging from -40°C to 125°C, it withstands extreme environmental conditions, suitable for automotive and industrial applications exposed to heat and cold. Its compact dimensions of 74.2mm length, 45mm height, and 40mm depth allow integration in restricted spaces.
The relay contacts use silver alloy material, providing minimal contact resistance and reliable electrical conductivity. It supports a high limiting continuous current of 130A at 85°C and a peak switching current capability of up to 300A, making it ideal for high current automotive circuits.
Designed to resist heat, moisture, and vibration, this sealed and dustproof relay ensures durability and robust operation in demanding environments. The product is manufactured in Portugal, maintaining strict quality standards.
Coil power rating of 3.9W ensures efficient operation. 37Ω coil resistance with quick connect terminals. SPST contact configuration for single pole switched applications. Wide operating temperature range from -40°C to 125°C.
Compact dimensions: 74.2 x 40 x 45 mm (L x D x H). Silver alloy contact material for low resistance and durability. High continuous current of 130A and switching current up to 300A. Sealed design providing resistance to dust, moisture, and vibration.
This TE Connectivity automotive relay is an essential component for automotive electrical control and industrial automation applications. Browse our Electronics & Electricals > Relays & Contactors > Automotive Relay category for more high-quality Automotive Relay solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The automotive relay operates at a coil voltage of 12V DC.
It has a maximum switching current of 20A.
This relay features an SPST (Single Pole Single Throw) contact configuration.
The relay has dimensions of 74.2mm in length, 40mm in depth, and 45mm in height.
The coil power rating is 3.9 watts, ensuring efficient operation.
It operates within a temperature range of -40°C to 125°C.
It is equipped with quick connect terminals for easy installation.
The contacts are made from silver alloy, which helps maintain low contact resistance.
The relay supports a high continuous current rating of 130A at 85°C.
It has a peak switching current capability of up to 300A.
This relay is manufactured in Portugal.
It is suitable for controlling engine components, glow plugs, heated front screens, and more in automotive systems.
