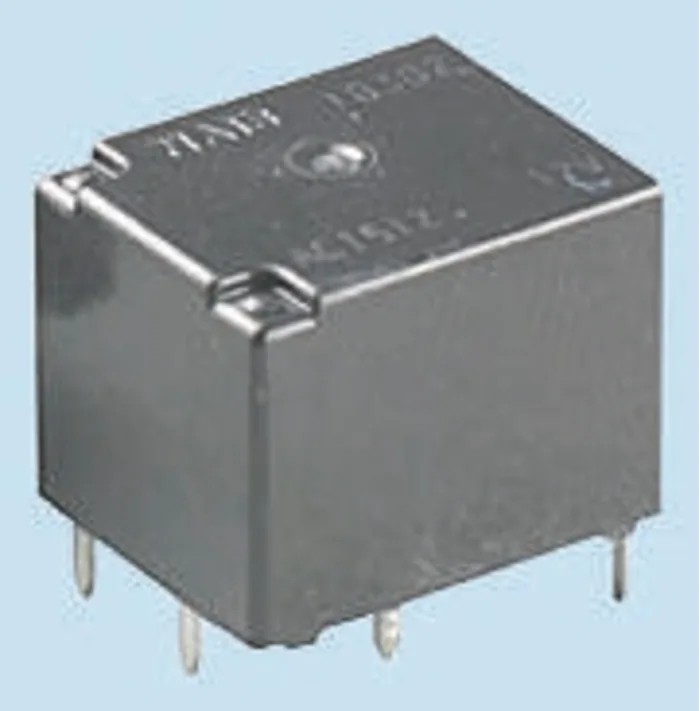

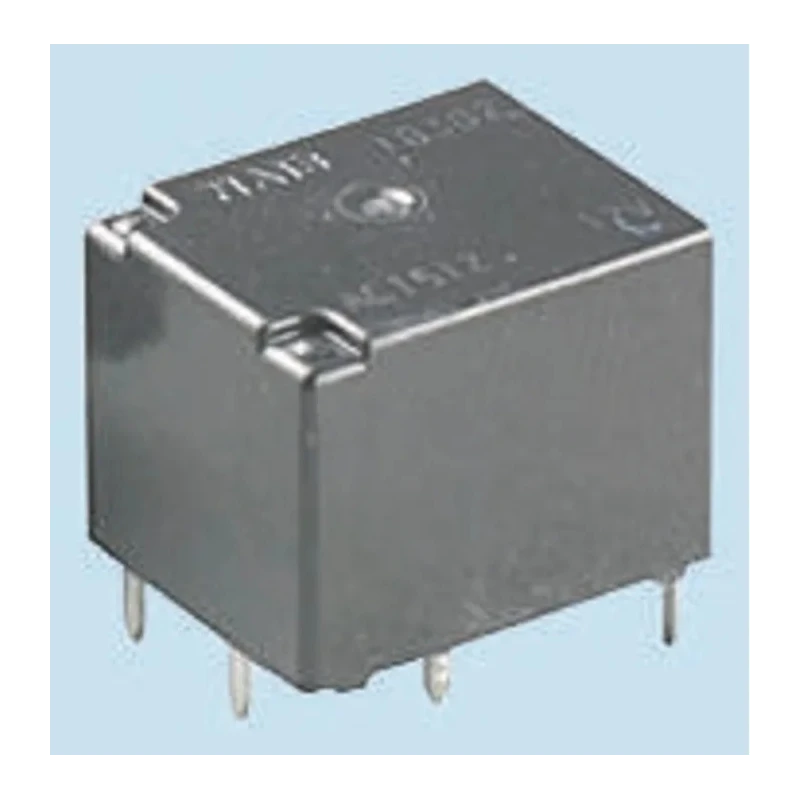

Panasonic PCB Automotive Relay 12V DC Coil Voltage 20A Switching Current DPDT ACT212

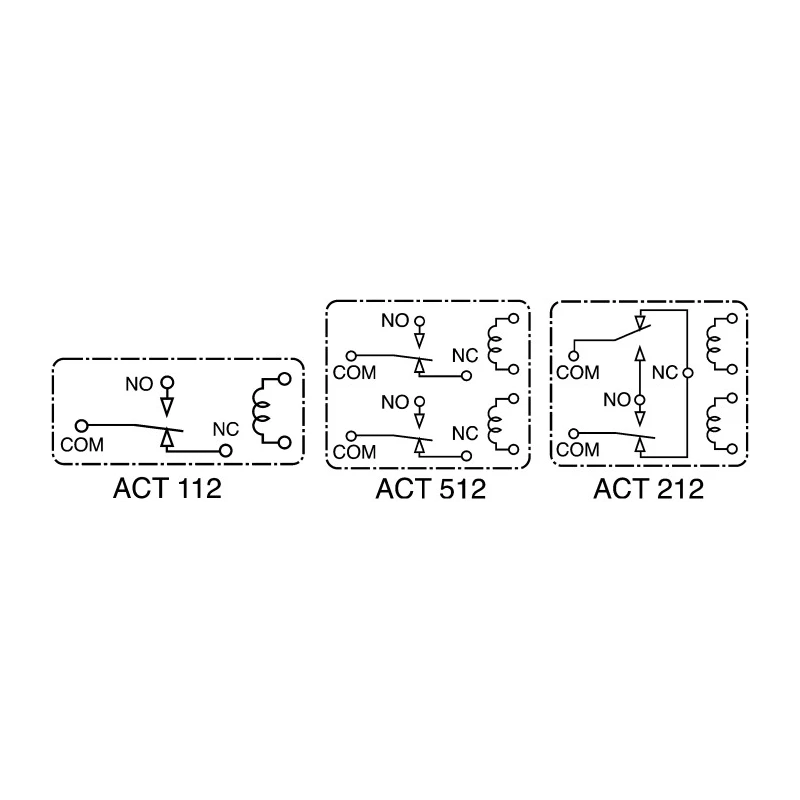

Panasonic ACT212 PCB Automotive Relay features a 12V DC coil voltage and supports a maximum switching current of 20A, making it ideal for various automotive control and signal switching applications. This relay utilizes a DPDT (Double Pole Double Throw) contact configuration, allowing for the control of two separate circuits with a single device, enhancing system flexibility and reliability.

The coil power consumption is rated at 800mW with a coil resistance of 180 Ohms, ensuring efficient operation with minimal energy loss. The relay’s silver alloy contact material is selected for superior electrical conductivity and resistance to corrosion, leading to longer operational life.

Designed primarily for PCB mounting, the relay uses solder terminals facilitating straightforward assembly in automated or manual soldering processes. Its compact physical dimensions (17.4mm length, 14mm depth, and 13.5mm height) allow integration into dense circuit layouts.

The device is built to operate reliably within a temperature range of -40°C to 85°C, supporting usage in harsh automotive and industrial environments. The coil-to-contact isolation of 500Vrms provides electrical safety and protects sensitive electronics from high voltage spikes.

Manufactured in Japan, the ACT212 upholds strict quality and manufacturing standards expected in automotive electronics, ensuring dependable performance in critical applications.

This relay is widely applicable in automotive systems, industrial automation, control panels, and signal conditioning where precise, reliable switching is necessary. Its robust design supports long-term durability and stable operation under demanding conditions.

Equipped with DPDT contact configuration suitable for dual circuit control. Coil power consumption is 800mW ensuring low power usage. Features silver alloy contact material to enhance conductivity and durability. Designed for PCB mounting with solder terminal type for easy installation.

Wide operating temperature range from -40°C to 85°C for harsh environments. Compact dimensions: 17.4mm length, 14mm depth, and 13.5mm height. Isolation rating of 500Vrms between coil and contacts ensuring operational safety.
