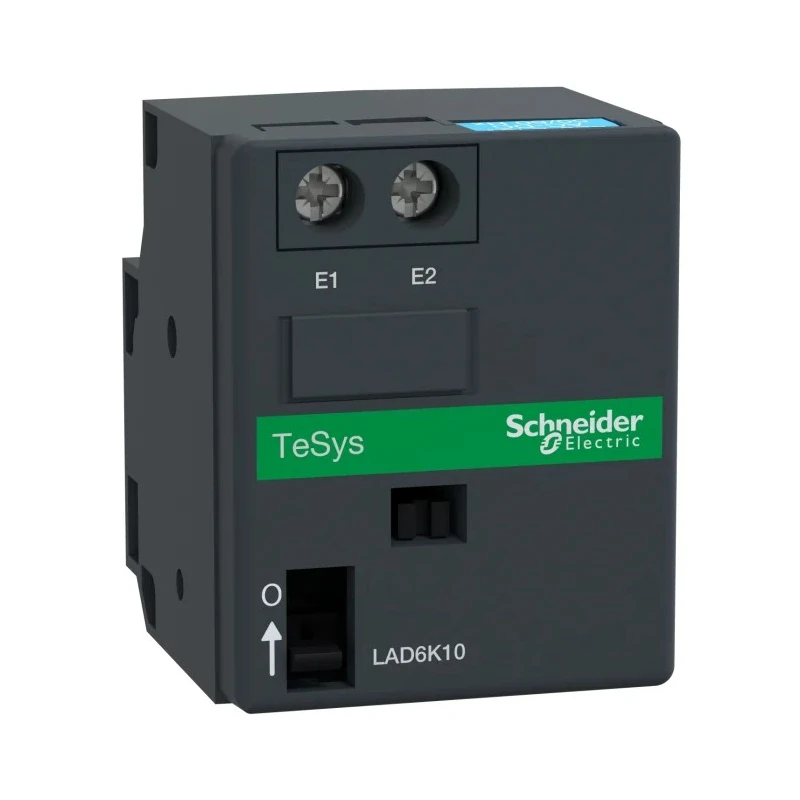

Schneider Electric TeSyS D Contactor Latching Block for use with LC1 Series LAD6K10M

Schneider Electric LAD6K10M is a TeSyS D series Contactor Latching Block designed for use with LC1 Series contactors. This accessory provides a mechanical latch feature that holds the contactor armature closed when the coil is de-energised, maintaining the contactor's state during interrupted cycles and reducing power consumption by permitting coil de-energisation.

The mechanical latch is engaged on coil energisation, and can be released through an electrical delatching pulse lasting longer than 100 milliseconds. This delatching can be performed remotely or by using the front panel button. It is important that the unlatch coil and the contactor or relay are not energised simultaneously to avoid damage.

The product operates under constraints including a maximum on-time of 30 seconds for the coil (not rated for continuous operation) and a maximum operation frequency of 36 operations per hour, making it suitable for industrial automation and control applications where energy efficiency and reliable contactor state retention are critical.

This Contactor Latching Block is manufactured in France, meeting Schneider Electric quality standards and is an essential accessory for automation and control gear implementing LC1 Series contactors in industrial environments, electrical panels, and machinery controls.

This latching block mechanically holds the contactor armature closed during coil de-energisation. Suitable for use with LC1 Series contactors, from the TeSyS D product series. Mechanical latch enables power consumption reduction by allowing coil de-energisation after activation.

Electrical delatching requires a pulse longer than 100ms, delivered remotely or via front panel button. Maximum coil energisation time is 30 seconds; simultaneous energisation of unlatch coil and contactor is prohibited.

Maximum operation frequency is 36 cycles per hour. Explore more high-quality Contactor Accessories and automation control products suitable for industrial, commercial, and manufacturing applications on EnvMart.
