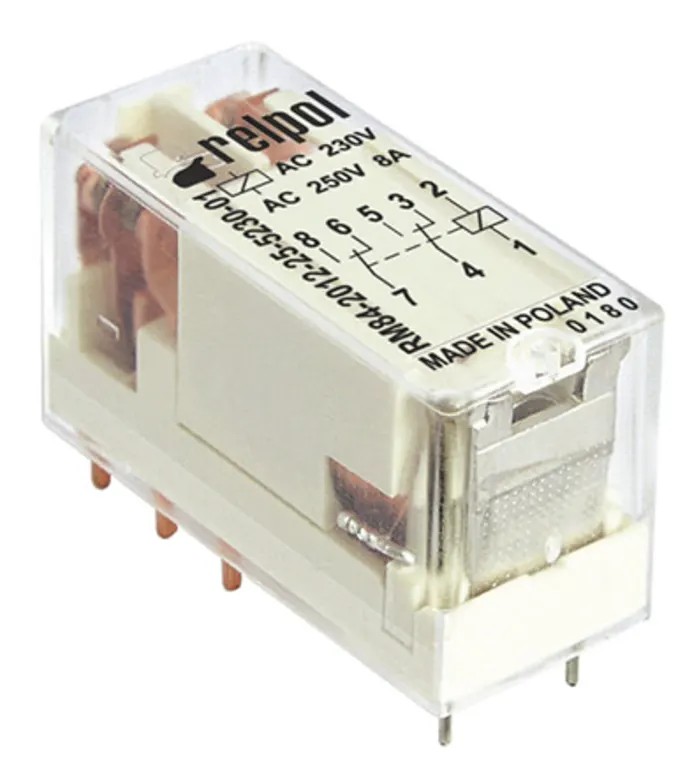

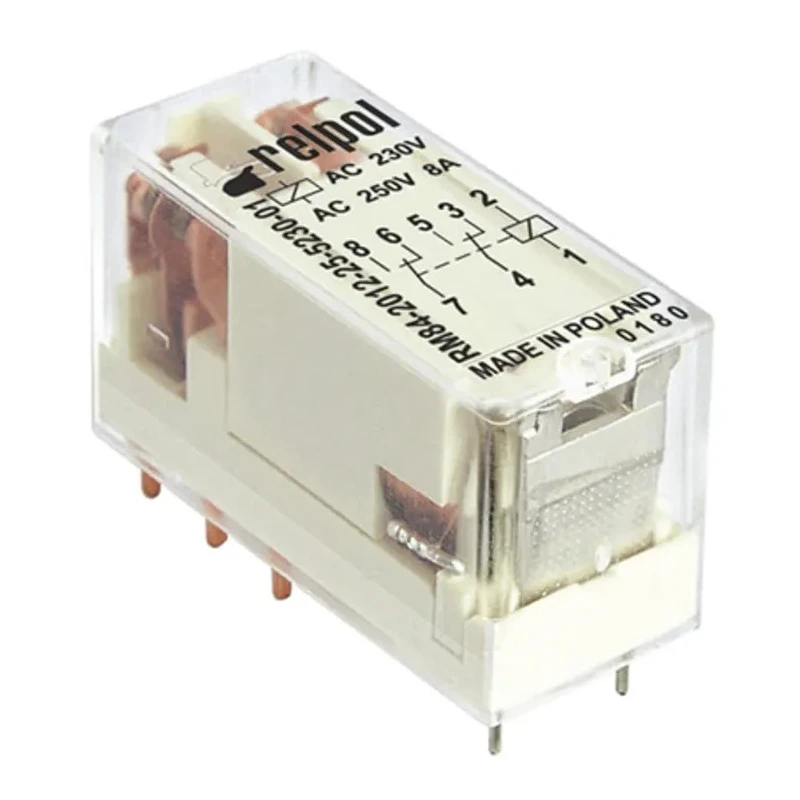

Relpol PCB Power Relay 12V AC Coil 8A Switching Current DPDT RM84-2012-35-5012
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | Relpol |
| Height | 15.7mm |
| Length | 29mm |
| Model | RM84-2012-35-5012 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RM84 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS, EAC |
| Coil Resistance | 100Ω |
| Coil Voltage | 12V ac |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 440V |
| Coil Power | 750mW |
Key Features
- This power relay is designed for PCB mounting with a plug-in terminal type.
- The relay series is RM84, providing miniature dimensions for space-efficient installation.
- The coil resistance is 100Ω with a coil power of 750mW for efficient operation.
- Switching voltages include 24V DC and 440V AC with a maximum switching power of 2kVA.
- The operating temperature range is from -40°C to 70°C suitable for various industrial conditions.
- Contacts are made of silver alloy material ensuring low contact resistance of 100mΩ for reliable signal transmission.
- This relay complies with RoHS and EAC standards for environmental and safety requirements.
- The relay’s compact size measures 29mm length, 15.7mm height, and 12.7mm width.
Product Description
The Relpol RM84-2012-35-5012 is a high-quality PCB power relay equipped with a 12V AC coil and supports a switching current of 8A in a DPDT (Double Pole Double Throw) configuration.
Designed specifically for printed circuit board mounting, this relay features plug-in terminals and belongs to the RM84 series of miniature industrial relays which are widely used in automation and electrical control systems.
With miniature dimensions of 29mm length, 15.7mm height, and 12.7mm width, it allows compact integration into various electronic assemblies. The coil resistance of 100Ω and coil power consumption of 750mW ensure efficient relay activation and operation.
The relay supports switching of DC voltage up to 24V and AC voltage up to 440V, with a rated switching power of 2kVA, making it suitable for a range of industrial electrical loads.
Operating reliably within a temperature range from -40°C to 70°C, it is engineered to perform under harsh environmental conditions encountered in industrial, laboratory, manufacturing, and automation applications.
Contact points are manufactured from silver alloy for high conductivity and durability, providing a low contact resistance of 100mΩ which guarantees consistent and reliable contact performance.
Designed for PCB mounting with plug-in terminals for ease of installation. Miniature RM84 series relay suitable for compact electronic assemblies. 12V AC coil with 100Ω resistance and 750mW power consumption. Double pole double throw (DPDT) contact configuration.
Capable of switching up to 8A current at 24V DC and 440V AC voltages. Operating temperature range from -40°C to 70°C for industrial resilience. Silver alloy contacts reduce contact resistance and enhance reliability. Complies with RoHS and EAC environmental and safety standards.
The Relpol RM84-2012-35-5012 power relay is ideal for incorporation into industrial automation equipment, HVAC control systems, manufacturing machinery, and various electrical systems requiring reliable switching.
Explore more Power Relays and electrical components in the Electronics & Electricals section of EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay supports a switching current of 8A.
The relay has dimensions of 29mm in length, 15.7mm in height, and 12.7mm in width.
The coil voltage for this model is 12V AC.
It is designed for PCB mounting with a plug-in terminal type.
The relay can switch AC voltage up to 440V and DC voltage up to 24V.
The operating temperature range is from -40°C to 70°C.
The contacts are made of silver alloy, which ensures low contact resistance.
This relay features a Double Pole Double Throw (DPDT) contact configuration.
The coil resistance is 100Ω.
The coil power consumption is 750mW.
It complies with RoHS and EAC standards for environmental and safety requirements.
This relay is suitable for use in industrial automation equipment, HVAC control systems, and various electrical systems requiring reliable switching.
