Chauvin Arnoux Handheld Multimeter 1 kV AC/DC Voltage Measurement CA 5001 P01196521E

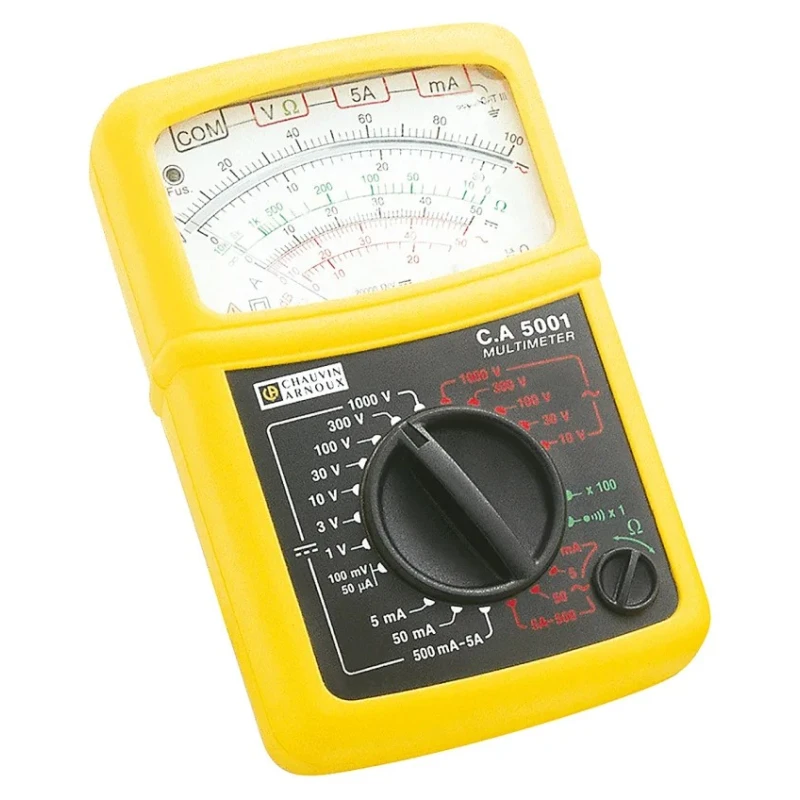

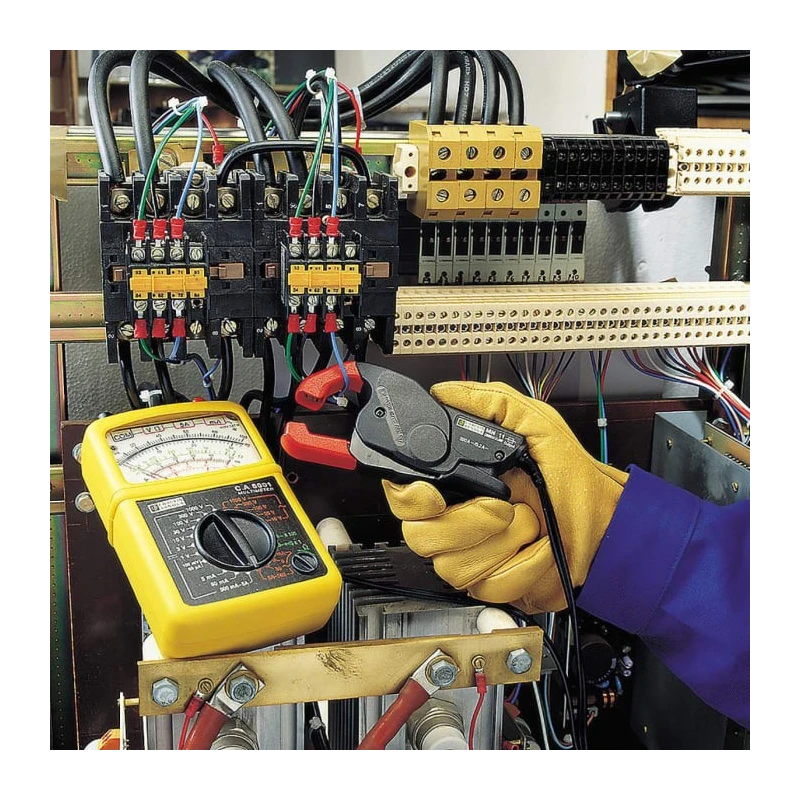

Chauvin Arnoux CA 5001 is a handheld analogue multimeter designed specifically for the needs of electricians requiring accurate measurements of AC and DC voltages up to 1 kV, as well as current and resistance readings. This instrument features an ergonomic, shockproof casing and a folding multi-purpose stand, allowing it to be used effectively both in fieldwork environments such as construction sites and indoors in laboratory settings.

The device provides an analogue display complemented by an anti-parallax mirror, making readings straightforward, fast, and reliable. It measures AC current, AC voltage, DC current, DC voltage, and resistance with maximum AC and DC voltage limits of 1 kV each. The multimeter offers multiple measurement ranges for DC current (from 50 μA up to 5 A) and AC current (from 5 mA up to 5 A), along with resistance up to 1 MΩ. It supports frequency measurement from 10 Hz to 100 kHz and includes a dB scale from 0 to 22 dB, enabling additional measurement options.

The CA 5001 comes complete with a set of silicon leads featuring straight and angled banana plugs, safety test probes, and a 1.5 V LR6 battery. The battery type is AA, with alkaline batteries available separately. Its dimensions are 160 mm length, 105 mm width, and 56 mm height, and it weighs approximately 500 g, supporting portability and ease of use.

Certified to comply with IEC 61010-1 and IEC 61326-1 standards, this multimeter ensures robust safety protocols, including 600 V category III rating. It is ideal for electrical diagnostics, installation verification, troubleshooting, and maintenance applications across industrial, construction, laboratory, and commercial environments.

Measures AC current, AC voltage, DC current, DC voltage, and resistance. Shockproof casing with folding multi-purpose stand for versatile deployment. Analogue display with anti-parallax mirror for accurate, simple readings.

Includes silicon leads, safety test probes, and 1.5 V LR6 battery in kit. Supports frequency measurement from 10 Hz to 100 kHz. Complies with IEC 61010-1 and IEC 61326-1 safety standards. Lightweight and compact, suitable for field and laboratory use.

Battery type AA; alkaline replacements available separately. Dimensions: 160 x 105 x 56 mm, weight approx. 500 g.

This Chauvin Arnoux CA 5001 Multimeter is a dependable tool for professionals requiring precise and safe analogue measurements across a variety of electrical testing tasks. Explore more measuring instruments in the EnvMart catalogue for comprehensive solutions.
