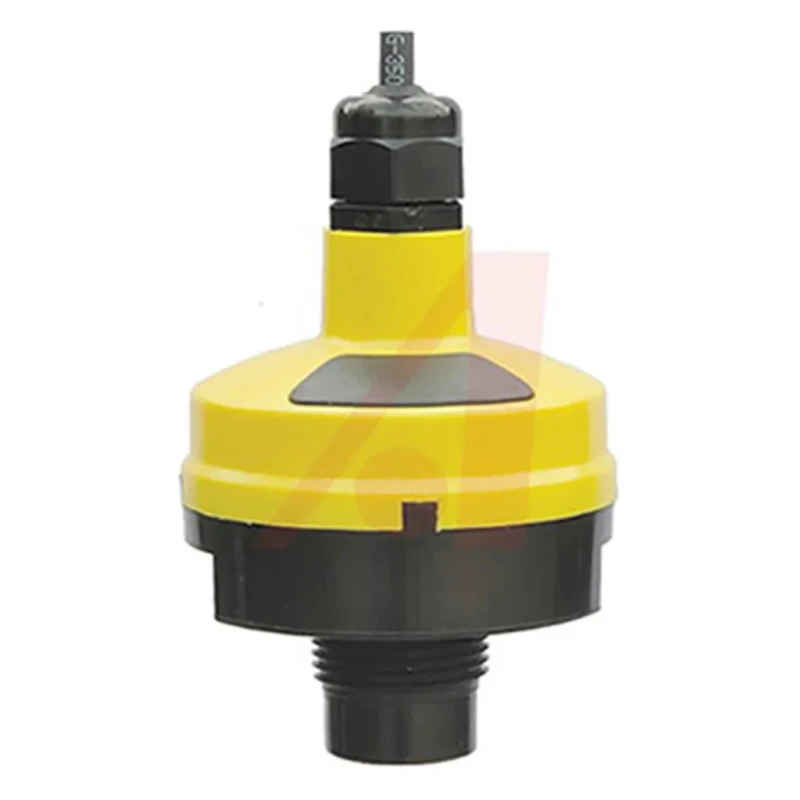

Flowline EchoPod Series Multi Function Ultrasonic Transmitter Ultrasonic Level Sensor Vertical Mount Polycarbonate DL14-00

Flowline DL14-00 is a multi function ultrasonic transmitter and level sensor designed for precise liquid level monitoring in industrial and commercial applications. It features a vertical mount configuration with a robust polycarbonate housing and a Viton gasket ensuring chemical resistance and durability under demanding conditions.

This ultrasonic sensor provides continuous level measurement up to 1.25 meters (49.2 inches), making it suitable for tanks, skids, and sump applications. Its narrow 2-inch beam width and short dead band optimize performance for smaller tanks and confined spaces.

The device includes four programmable relays rated at 1A/60VA designed for controlling pumps, valves, and providing fail-safe alarms. It supports versatile pump configurations including single pump with three alarms, lead-lag dual pumps with two alarms, or duplex pumping with two alarms. The PVDF transducer and 6P polycarbonate enclosure ensure excellent resistance to harsh chemical environments and corrosive liquids.

Automatic temperature compensation maintains accurate measurements despite temperature fluctuations. The product supports USB connectivity through a dedicated adapter, enabling straightforward configuration using Flowline’s free WebCal software.

This ultrasonic level sensor is widely utilized in industrial sectors including water treatment, chemical processing, manufacturing plants, and agricultural systems. Its compliance with CE, cFMus, and RoHS standards confirms its suitability for safety and environmental requirements. It is not certified for hazardous areas.

Standard process mounting uses a 1-inch NTP fitting, with cable length provided as 1.2 meters. It perfectly suits applications involving corrosive, sticky, or dirty liquids requiring reliable, non-contact level sensing.

Package includes the Flowline EchoPod DL14-00 Ultrasonic Level Sensor with USB adapter and mounting provisions. The sensor provides continuous level measurement up to 1.25 meters. Equipped with a Viton gasket to ensure chemical resistance.

Features a narrow 2-inch beam width optimized for small tanks. Includes four programmable relays for pump or valve control and fail-safety. Compatible with Flowline's DataLoop, DataView, DataPoint, and Commander product ranges.

USB adapter interface is provided for configuration via WebCal software. Supports operating temperatures from -35°C to 60°C. Capable of withstanding pressures up to 30 psi. Designed for corrosive, sticky, or dirty liquids applications.
