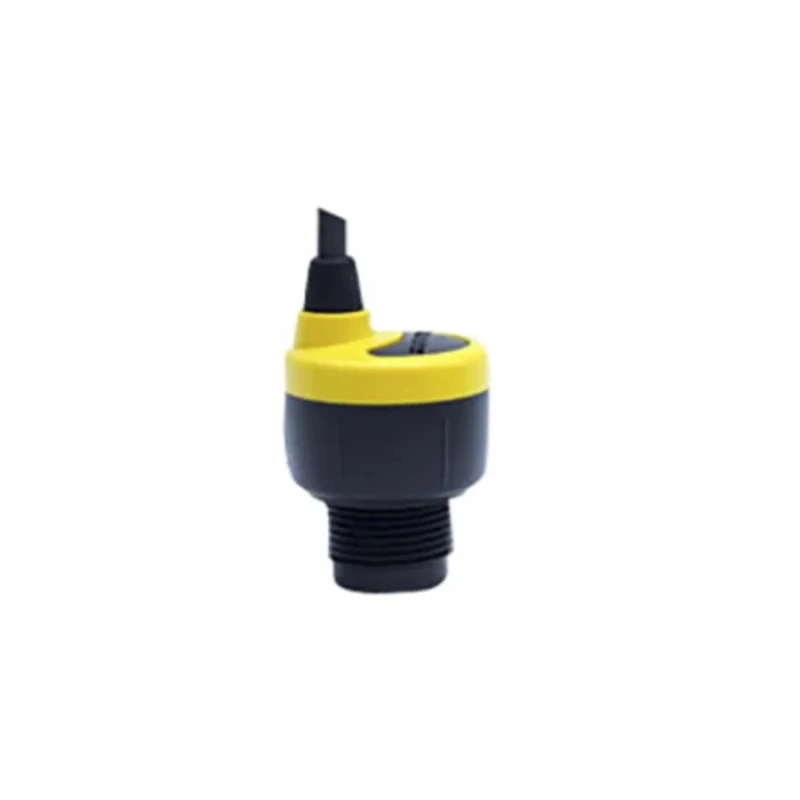

Flowline Multi Function Ultrasonic Transmitter Ultrasonic Level Sensor, Vertical Mount, Viton Gasket, Polycarbonate DL14-11

Flowline DL14-11 is a Multi Function Ultrasonic Transmitter Ultrasonic Level Sensor designed for vertical mounting with durable polycarbonate housing and Viton gasket. It operates at 24V DC and is engineered for accurate continuous level measurement up to 49.2 inches (1.25 meters). Its narrow 2-inch beam width and 2-inch dead band make it ideal for small tanks and confined spaces.

This sensor incorporates four programmable relays rated at 1A/60VA, which can be configured for switch, pump, or valve control with multiple alarm settings supporting fail-safety operations. The device’s sturdy design includes a PVDF transducer and 6P polycarbonate enclosure, delivering excellent resistance to corrosive and sticky liquids commonly found in industrial, manufacturing, water treatment, and chemical process applications.

The DL14-11 supports automatic temperature compensation to maintain measurement accuracy across a wide range of environmental conditions, from -35°C to 60°C. It includes a USB adapter with fob for simplified programming using Flowline’s WebCal software, enhancing integration into existing control systems.

With a process mount of 1 inch NPT (1 inch G) and a cable length of 1.2 meters, this device is ideally suited for tanks, skids, IBCs, sumps, and other process tank level measurement applications in industrial and commercial settings.

Provides precise level measurement with a range up to 1.25 meters. Four programmable relays for versatile control and alarm functions. Durable polycarbonate housing and Viton gasket suitable for harsh environments. Compatible with Flowline DataLoop, DataView, DataPoint, and Commander systems.

Automatic temperature compensation for consistent performance. USB interface for easy configuration and setup. Rated for maximum pressure of 30 psi, supporting diverse industrial processes.

This product is CE, cFMus, and RoHS compliant and meets industry standards to ensure safety and performance. It is an excellent choice for accurate ultrasonic liquid level detection and control across a variety of industrial domains.
