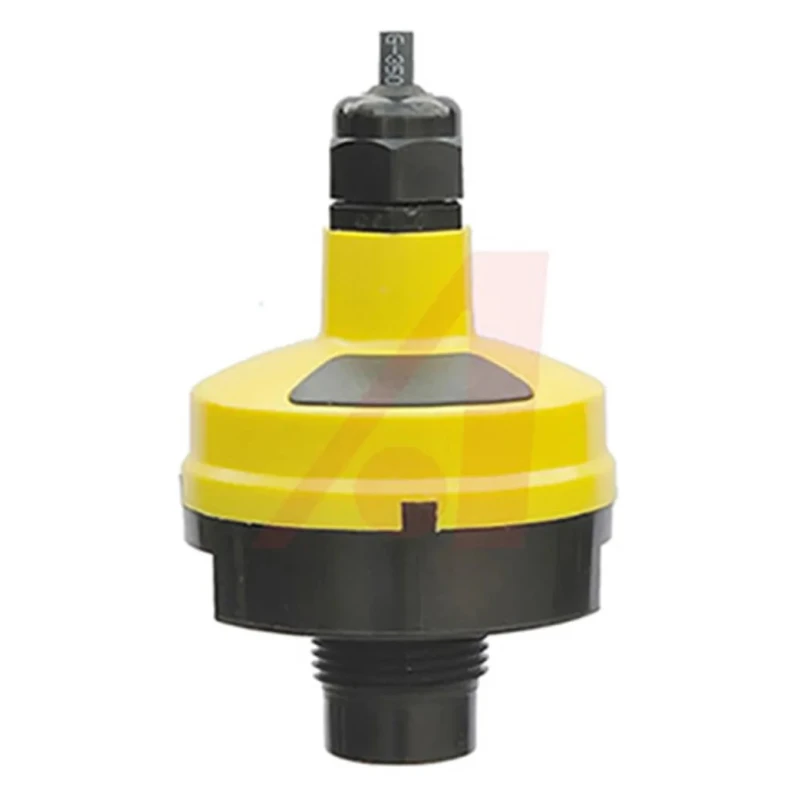

Flowline EchoPod Series Ultrasonic Level Transmitter Vertical Mount, Polycarbonate Housing, Viton Gasket DL24-00
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Flowline |
| Model | DL24-00 |
| Cable Length | 1.2m |
| Mount Type | Vertical |
| Housing Material | Polycarbonate |
| Series | EchoPod |
| Maximum Operating Temperature | 60°C |
| Maximum Pressure | 30psi |
| Minimum Operating Temperature | -35°C |
| Interfaces | USB adapter |
| Maximum Current | 20mA |
| Device Type | Ultrasonic Level Transmitter |
| Maximum dc Voltage | 24V dc |
| Standards/Approvals | CE, RoHS Compliant |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Gasket Material | Viton |
Key Features
- Provides accurate level measurement up to 3 meters with a narrow 2-inch beam width.
- Equipped with polycarbonate housing and Viton gasket for chemical resistance.
- Includes 1.2-meter cable and USB configuration adapter.
- Supports 4 programmable relays with selectable hysteresis and fail-safe operation.
- Operates between -35°C and 60°C with a maximum pressure rating of 30 psi.
- Output current ranges from 4mA to 20mA for integration with controllers.
- Optimized for small tank applications and corrosive environments.
- Complies with CE and RoHS standards ensuring quality and safety.
Product Description
Flowline DL24-00 is an EchoPod Series Ultrasonic Level Transmitter designed for accurate, non-contact liquid level sensing in industrial and process applications. Featuring a vertical mount and robust polycarbonate housing combined with a Viton gasket, this sensor is ideally suited for corrosive, sticky, or dirty liquids.
This level transmitter provides continuous measurement up to 3.0 meters (approximately 9.8 feet) with optimized narrow beam technology for small tanks, minimizing dead bands and improving measurement accuracy. The device outputs a current signal ranging from 4mA to 20mA compatible with most process control systems.
Equipped with four programmable relays, the DL24-00 offers versatile control for pumps, valves, and alarms with fail-safe logic and selectable hysteresis. USB connectivity allows for easy configuration via Flowline’s free WebCal software. With an operating temperature range from -35°C to 60°C and maximum pressure tolerance of 30 psi, it withstands challenging operating environments.
The polycarbonate housing and PVDF transducer provide exceptional chemical resistance, while the 1.2-meter cable length ensures flexible installation. Compliance with CE and RoHS standards guarantees safety and environmental compliance. This ultrasonic sensor is made in the United States and is suitable for industrial, laboratory, water treatment, HVAC, and process control applications involving tanks, skids, IBCs, sumps, and small process tanks.
Provides accurate level measurement up to 3 meters with a narrow 2-inch beam width. Polycarbonate housing and Viton gasket for chemical resistance. Includes four programmable relays for versatile control applications. Equipped with USB adapter for easy device configuration.
Suitable for corrosive, sticky, or dirty liquids. Operates at temperatures from -35°C to 60°C and maximum pressure of 30 psi. Output current from 4mA to 20mA compatible with process controllers. Complies with CE and RoHS standards.
Ideal for tank, sump, and process application level measurement. Explore the full range of Flowline sensors and ultrasonic level transmitters available for comprehensive level control solutions on EnvMart.
Explore more products in our Ultrasonic Level Sensor category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This ultrasonic level transmitter provides accurate level measurement up to 3.0 meters (approximately 9.8 feet).
It operates effectively between -35°C and 60°C, making it suitable for various environments.
The device is constructed with a polycarbonate housing, which offers chemical resistance for various applications.
The output current ranges from 4mA to 20mA, allowing integration with most process control systems.
It has a maximum pressure rating of 30 psi, suitable for various liquid level sensing applications.
The DL24-00 is designed for vertical mounting, which is optimal for specific tank configurations.
It includes a 1.2-meter cable and a USB configuration adapter for easy setup and configuration.
This model is optimized for sensing corrosive, sticky, or dirty liquids, making it versatile for various applications.
It complies with CE and RoHS standards, ensuring quality and safety for industrial use.
The DL24-00 features four programmable relays with selectable hysteresis and fail-safe operation.
The USB interface allows for easy configuration via Flowline’s free WebCal software, simplifying setup.
This ultrasonic level transmitter is made in the United States.
