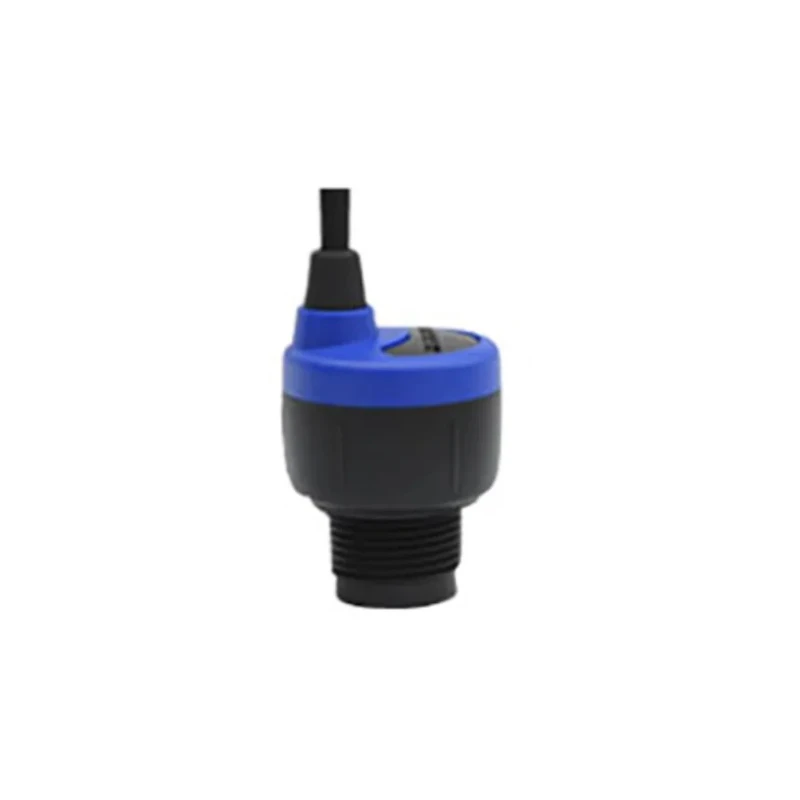

Flowline EchoPod Series Ultrasonic Level Sensor Vertical Mount Polycarbonate Housing Viton Gasket DX10

Flowline DX10 Ultrasonic Level Sensor is designed for continuous, non-contact level measurement in industrial and commercial applications. The sensor features a vertical mount and a durable polycarbonate housing with a Viton gasket, making it suitable for corrosive, sticky, or dirty liquids.

Operating reliably across a temperature range of -35°C to 60°C and withstanding pressures up to 30 psi, this sensor is ideal for small tank environments due to its narrow 2 inch beam width and short 2 inch dead band. The device is powered by 24V DC and draws a maximum current of 15mA.

The sensor ensures accuracy through automatic temperature compensation and benefits from quick and simple setup using Flowline's Free WebCal Software and USB Adapter. Provided with a 1.2 meter cable, it offers flexible installation options.

Flowline DX10 is CE, cFMus, and RoHS compliant but is not certified for hazardous areas. Its robust PVDF transducer and polycarbonate enclosure construction provide long-lasting performance in demanding industrial, water treatment, manufacturing, laboratory, and HVAC environments.

Robust Polycarbonate housing with Viton gasket for chemical resistance. Vertical mount type optimized for tank applications. 1.2 meter cable for flexible connection. Temperature operating range from -35°C to 60°C. Maximum pressure handling of 30 psi.

Automatic temperature compensation for accuracy. Quick configuration via USB Adapter and WebCal Software. Compliance with CE, cFMus, and RoHS standards. Non-contact ultrasonic level measurement technology.

This ultrasonic sensor is suitable for use in industrial automation, water management, chemical processing, and laboratory instrumentation. Explore highly reliable and accurate level sensors from Flowline at EnvMart for your precise measurement needs.
