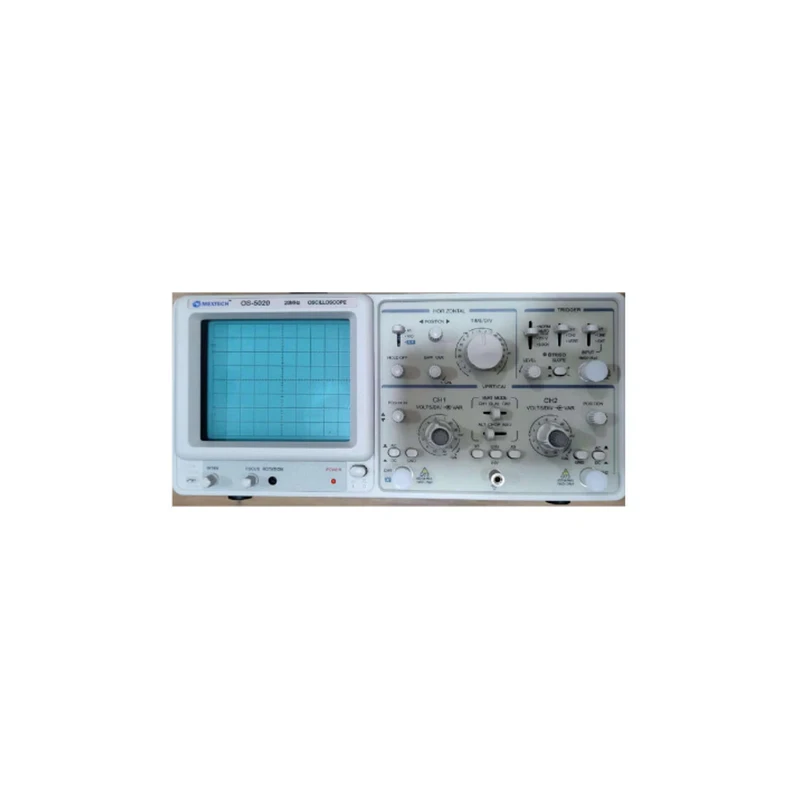

Mextech Analogue Oscilloscope OS-5020

Name: Mextech Analogue Oscilloscope OS-5020
Brand: MEXTECH
SKU: ADKXU
Price: 276.87 USD
Availability: InStock



SKU ADKXU Category Oscilloscope Brand MEXTECH Condition New

Specifications

Country of Origin	India
Package Contents	MEXTECH OS-5020 ANALOGUE OSCILLOSCOPE / Main Unit / Instruction manual / 1m AC supply Power wire / 2ms probes
Accuracy	X1- ≤±3% / x5MAG- ≤±5%
Variable Ratio	≥2.5
Bandwidth(-3dB)	x1-DC(AC10Hz)~20MHz / x5-DC(AC10Hz) )~7MHz /
Max. Input Voltage	400V with the frequency ≤ 1kHz Max. Effective readout would be 160Vp-p(56Vrms sine wave) when the probe is set as1
Coupling	AC-5Hz to the whole frequency Range
Linearity	The amplitude change would be within±0.1V when the waveform moves vertically in the middle of the Division. x1
Brand	Mextech
Model	OS-5020
SENSITIVITY	5mV-20V/DIV in 1-2-5 sequence / altogether 12 steps / CH1 / CH2 to 1mV/DIV with x5 magnification.
Input Impedance	1MΩ±5% // 25pF±5pF
Polarity	+/-
Rising Time	x1- ≤17.5ns / x5-≤50ns
DC Balance	5mV-20V/DIV- ±0.5DIV
Vertical Mode	CH1 / CH2 / ALT / CHOP / ADD(CH1+CH2 / CH1-CH2)
Input Coupling	AC / GND / DC
CH2 INV BAL	≤1DIV
Trigger Sources	INT / EXT / LINE
INT Trigger Source	CH1 / CH2 / VERT.
Trigger Modes	NORM / AUTO(TV-H) / TV-V / LEVEL LOCK.
Sweep Time	0.5s-0.2us/DIV / in 1-2-5 sequence / altogether 20 steps
Movement by x10 MAG	less than 2DIV in CRT center
Input impedance with EXT	1MΩ±5%//25pF±5pF
Trigger Signals Max Input Voltage	400V(DC+A Cpeak) AC frequency

Key Features

High luminance,internal graticule CRT
Japanese electronic encoder,light,handy and reliable
Fully sealed long live vertical mode switch
ALT Triggering Function. Two indepen dent signals simultaneous observation
Build-in 6 Digit Frequency Counter
20MHz Dual Channel
10 times sweep magnification
TV Synchronization, X-Y mode

Product Description

The Mextech OS-5020 Analogue Oscilloscope offers engineers and technicians a reliable tool for visualizing electronic waveforms. Supporting up to 20 MHz bandwidth, it allows for accurate signal observation in analog circuits, audio testing, and component behavior analysis. The OS-5020 is equipped with fine-tune controls, a robust power supply, and stable trigger options. Whether used in academic environments or maintenance labs, this oscilloscope provides a cost-effective and essential solution for waveform analysis and electronic troubleshooting.

Available on EnvMart, these Oscilloscopes are perfect for visualizing and analyzing electronic signals with precision. Mextech Oscilloscopes offer accuracy and reliability, making them ideal for electronics testing, research, and laboratory applications.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Mextech OS-5020 has a bandwidth of up to 20 MHz for x1 settings and 7 MHz for x5 settings.

The maximum input voltage for the Mextech OS-5020 is 400V with a frequency of ≤ 1kHz, with a maximum effective readout of 160Vp-p when the probe is set as 1.

The Mextech OS-5020 offers sensitivity settings from 5mV to 20V/DIV in a 1-2-5 sequence, with a total of 12 steps for CH1 and CH2 to 1mV/DIV with x5 magnification.

The Mextech OS-5020 supports AC, GND, and DC input coupling options.

The Mextech OS-5020 features NORM, AUTO (TV-H), TV-V, and LEVEL LOCK trigger modes.

The rising time for the Mextech OS-5020 is ≤ 17.5ns for x1 settings and ≤ 50ns for x5 settings.

The input impedance of the Mextech OS-5020 is 1MΩ ± 5% with a capacitance of 25pF ± 5pF.

The Mextech OS-5020 has a sweep time range from 0.5s to 0.2us/DIV in a 1-2-5 sequence, offering a total of 20 steps.

The package contents of the Mextech OS-5020 include the main oscilloscope unit, an instruction manual, a 1m AC supply power wire, and 2ms probes.

The accuracy of the Mextech OS-5020 is ≤ ±3% for x1 settings and ≤ ±5% for x5 settings.

The Mextech OS-5020 supports vertical modes including CH1, CH2, ALT, CHOP, and ADD (CH1+CH2 / CH1-CH2).

The Mextech OS-5020 is manufactured in India.
