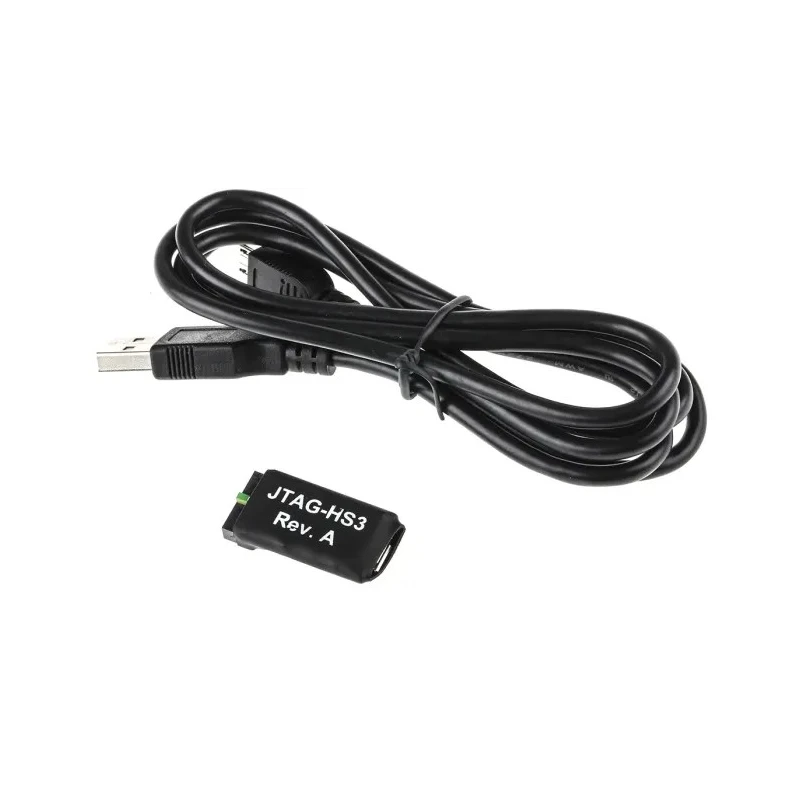

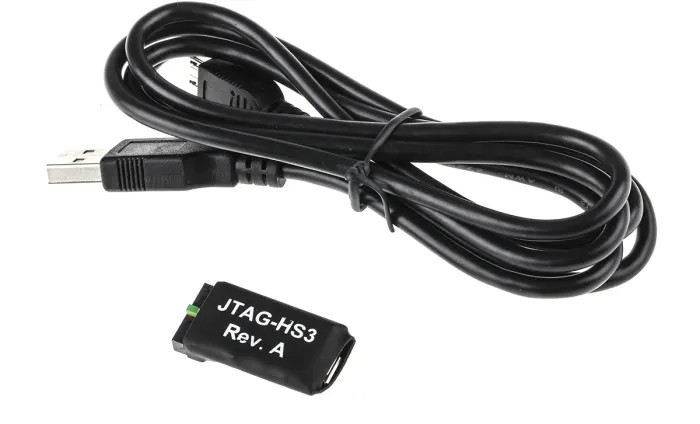

Digilent 410-299 High-Speed JTAG-HS3 FPGA Programming Cable for Xilinx Tools 410-299

Free Delivery in India | Lowest Global Shipping Charges

Digilent 410-299 High-Speed JTAG-HS3 FPGA Programming Cable for Xilinx Tools 410-299

Name: Digilent 410-299 High-Speed JTAG-HS3 FPGA Programming Cable for Xilinx Tools 410-299
Brand: Digilent
SKU: 144007
Price: 69.3 USD
Availability: InStock



Category Development Tool Accessories Brand Digilent Condition New

Specifications

Country of Origin	India
Brand	Digilent
Model	410-299
Interfaces	USB 2
Accessory Type	Programming Cable
For Use With	Xilinx Tool, JTAG-HS3
PC connector	MicroUSB
JTAG connector	2 x 7-pin 2mm

Key Features

Allows high-speed programming and debugging of Xilinx FPGA and SoC devices.
Separate Vref drives JTAG signal voltages from +1.8V to +5V.
USB 2.0 HS port providing JTAG bus operation up to 30 Mbit/sec.
Compatible with Xilinx ISE 14.1 and Vivado 2013.3 or newer software versions.

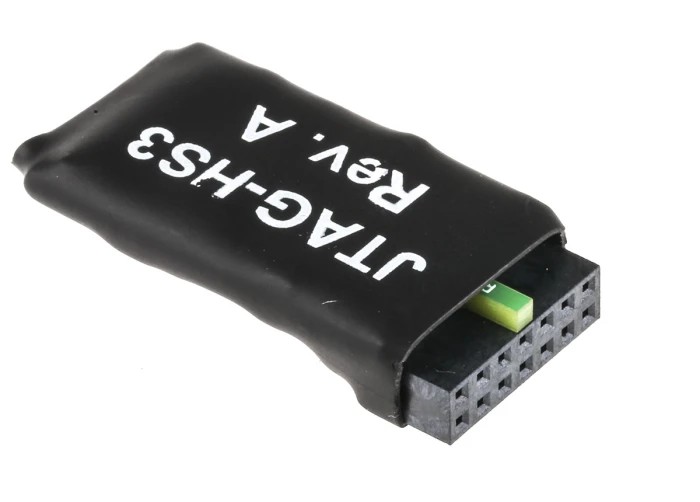

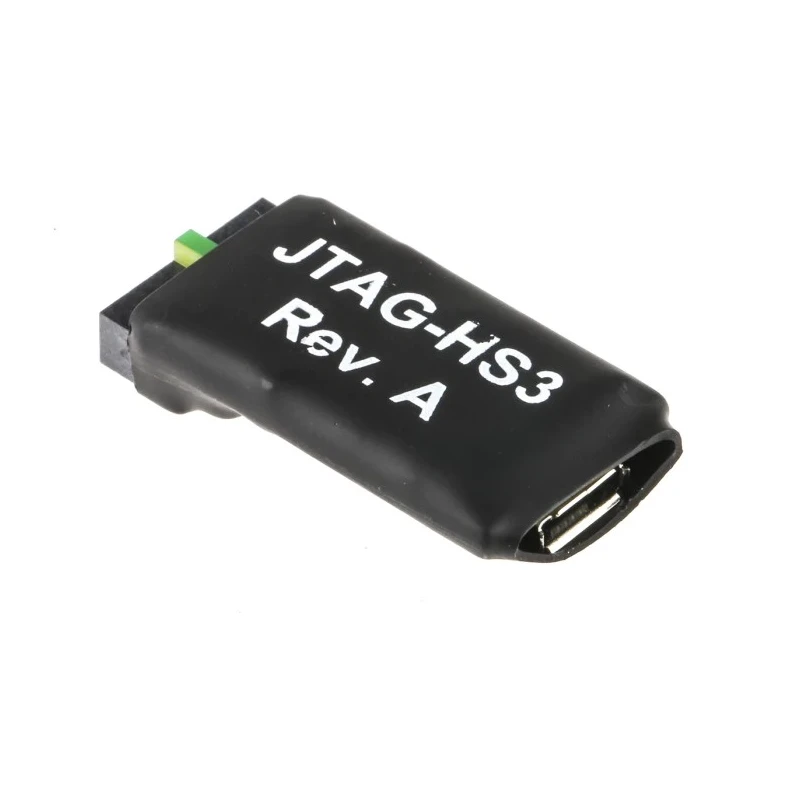

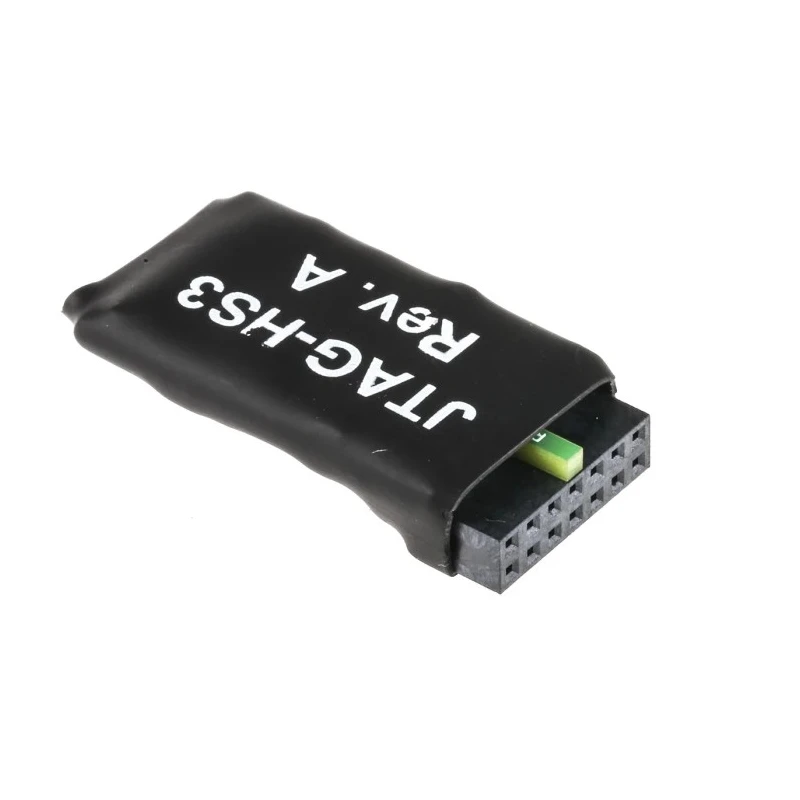

MicroUSB connector for PC interface and 2 x 7-pin 2mm JTAG connector for target device.
Open-drain buffer on pin 14 to allow processor reset of Xilinx Zynq platforms.
Supports a wide range of Xilinx FPGAs, Zynq-7000, CoolRunner CPLDs and selected third-party PROMs.

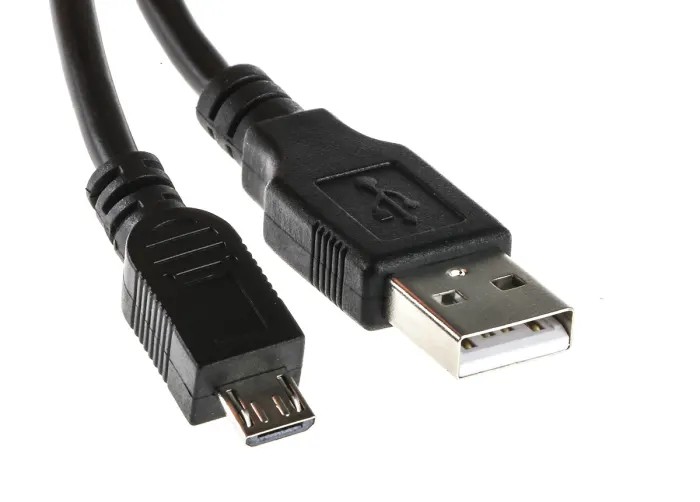

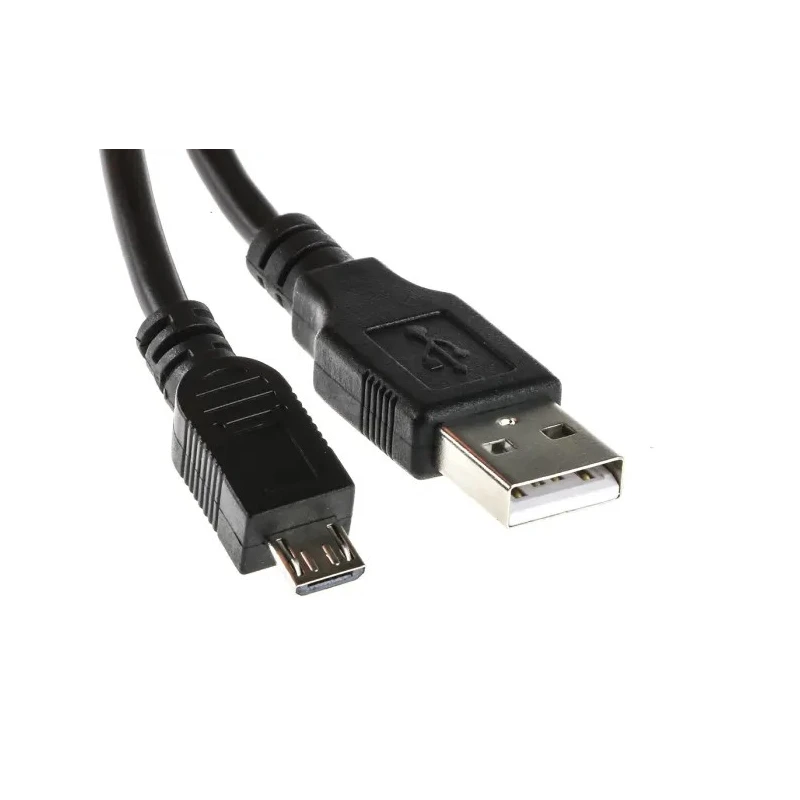

Includes USB cable for easy connection.

Product Description

Digilent 410-299 is a high-speed JTAG-HS3 programming cable used primarily with Xilinx FPGA and SoC devices, enabling efficient programming and debugging from a host PC. It drives JTAG signals with a separate Vref voltage adjustable from +1.8V to +5V to ensure signal integrity adapted to the target device requirements.

This programming cable features a USB 2.0 high-speed port that enables JTAG bus communication at rates up to 30 Mbit/sec, ensuring swift data transfer and programming speeds. The cable’s PC connection is supported through a MicroUSB connector, while the target device interface is a 2 x 7-pin 2mm JTAG connector. An open-drain buffer on pin 14 allows automatic processor reset functionality on Xilinx Zynq platform devices.

Compatibility includes Xilinx ISE software versions 14.1 and newer, as well as Xilinx Vivado 2013.3 and later. It supports a broad spectrum of target devices, such as Xilinx FPGAs, Xilinx Zynq-7000 SoCs, CoolRunner and CoolRunner-II CPLDs, Platform Flash ISP configuration PROMs, and selected third-party SPI and BPI PROMs.

Not supported are Xilinx 9500/9500XL CPLDs, 1700 and 18V00 ISP configuration PROMs, and Xilinx FPGA eFUSE programming. The cable is supplied with a USB cable for immediate use.

This programming accessory is an essential tool for industrial, laboratory, electronics development, and manufacturing applications that require rapid, reliable FPGA programming. Its design ensures robustness and reliability in diverse development environments.

High-speed programming and debugging for Xilinx FPGA and SoC devices. Vref selectable from +1.8V to +5V for flexible JTAG signaling. USB 2.0 High-Speed interface supporting up to 30 Mbit/sec transfer rate. Wide compatibility with Xilinx development software and hardware platforms.

Includes MicroUSB and 2 x 7-pin 2mm JTAG connectors. Open-drain buffer on pin 14 to support processor reset for Zynq devices. Supports multiple Xilinx FPGA families, CPLDs, and selected PROMs. Comes with USB cable for easy setup and connection.
