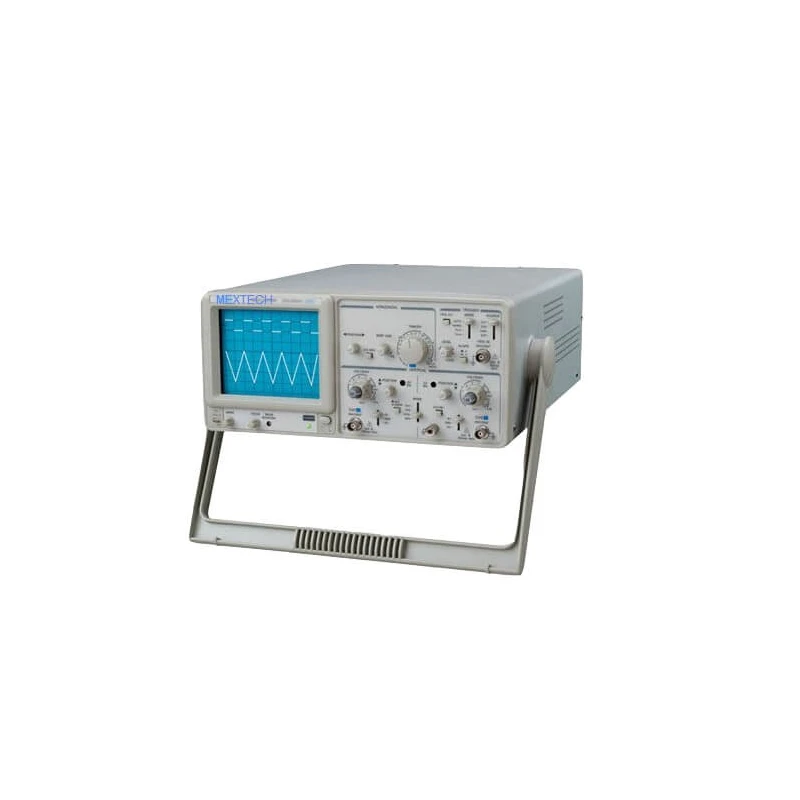

Mextech CRO Dual Trace Oscilloscope 30MHZ OS-5030

Name: Mextech CRO Dual Trace Oscilloscope 30MHZ OS-5030
Brand: MEXTECH
SKU: ADKXV
Price: 319.49 USD
Availability: InStock



SKU ADKXV Category Oscilloscope Brand MEXTECH Condition New

Specifications

Country of Origin	India
Package Contents	Instruction manual / 1m AC supply Power wire / 2ms probes
Accuracy	X1- ≤±3% / x5MAG- ≤±5%
Variable Ratio	≥2.5-1
Bandwidth(-3dB)	x1-DC(AC10Hz)~30MHz / x5- DC(AC10Hz) )~7MHz /
Max. Input Voltage	400V with the frequency ≤ 1kHz Max. Effective readout would be 160Vp-p(56Vrms sine wave) when the probe is set as1
Input impedance with EXT trigger signals Max Input Voltage	1MΩ±5%//25pF±5pF 400V(DC+A Cpeak) AC frequency
Coupling	AC-5Hz to the whole frequency Range
Linearity	The amplitude change would be within±0.1V when the waveform moves vertically in the middle of the Division. x1
Brand	Mextech
Model	OS-5030
SENSITIVITY	5mV-20V/DIV in 1-2-5 sequence / altogether 12 steps / CH1 / CH2 to 1mV/DIV with x5 magnification.
Input Impedance	1MΩ±5% // 25pF±5pF
Polarity	+/-
Rising Time	x1-≤12ns / x5-≤50ns
DC Balance	5mV-20V/DIV- ±0.5DIV
Vertical Mode	CH1 / CH2 / ALT / CHOP / ADD(CH1+CH2 / CH1-CH2)
Input Coupling	AC / GND / DC
CH2 INV BAL	≤1DIV
Trigger Sources	INT / EXT / LINE
INT Trigger Source	CH1 / CH2 / VERT.
Trigger Modes	NORM / AUTO(TV-H) / TV-V / LEVEL LOCK.
Sweep Time	0.5s-0.2us/DIV / in 1-2-5 sequence / altogether 20 steps
Movement by x10 MAG	less than 2DIV in CRT center

Key Features

High luminance, internal graticule CRT
Japanese electronic encoder,light,handy and reliable
Fully sealed long live vertical mode switch
ALT Triggering Function. Two independent signals simultaneous observation
30MHz Dual Channel
10 times sweep magnification
TV Synchronization-Y mode

Product Description

The Mextech CRO OS-5030 Cathode Ray Oscilloscope is a versatile tool for analog signal diagnostics, perfect for measuring voltage levels, frequency, and time intervals across circuits. With user-friendly calibration controls and precise trace visuals, this CRO is ideal for engineering students, educators, and service technicians. Its stable waveform rendering and robust design ensure long-term usability. It is suitable for testing analog waveforms in communication, signal processing, and educational setups.

Available on EnvMart, these Oscilloscopes are perfect for visualizing and analyzing electronic signals with precision. Mextech Oscilloscopes offer accuracy and reliability, making them ideal for electronics testing, research, and laboratory applications.

Mextech CRO Dual Trace Oscilloscope 30MHZ OS-5030

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The bandwidth of the Mextech CRO OS-5030 is 30MHz for the x1 setting and 7MHz for the x5 setting, with a -3dB response.

The maximum input voltage for the Mextech CRO OS-5030 is 400V with a frequency of ≤ 1kHz, with an effective readout of 160Vp-p (56Vrms sine wave) when the probe is set to x1.

The sensitivity range of the Mextech CRO OS-5030 is from 5mV to 20V/DIV in a 1-2-5 sequence, with a total of 12 steps available.

The trigger sources available on the Mextech CRO OS-5030 include INT, EXT, and LINE, with various trigger modes such as NORM, AUTO, and TV modes.

The input impedance of the Mextech CRO OS-5030 is 1MΩ ±5% with a capacitance of 25pF ±5pF.

The package contents of the Mextech CRO OS-5030 include an instruction manual, a 1m AC supply power wire, and two 10x probes.

The Mextech CRO OS-5030 maintains waveform linearity with amplitude changes within ±0.1V when the waveform moves vertically in the middle of the division.

The rising time for the Mextech CRO OS-5030 is ≤12ns for the x1 setting and ≤50ns for the x5 setting.

The vertical modes available on the Mextech CRO OS-5030 include CH1, CH2, ALT, CHOP, and ADD (CH1+CH2 / CH1-CH2).

The sweep time range for the Mextech CRO OS-5030 is from 0.5s to 0.2µs/DIV in a 1-2-5 sequence, with a total of 20 steps.

The country of origin for the Mextech CRO OS-5030 is India.

The Mextech CRO OS-5030 supports input coupling options of AC, GND, and DC.
