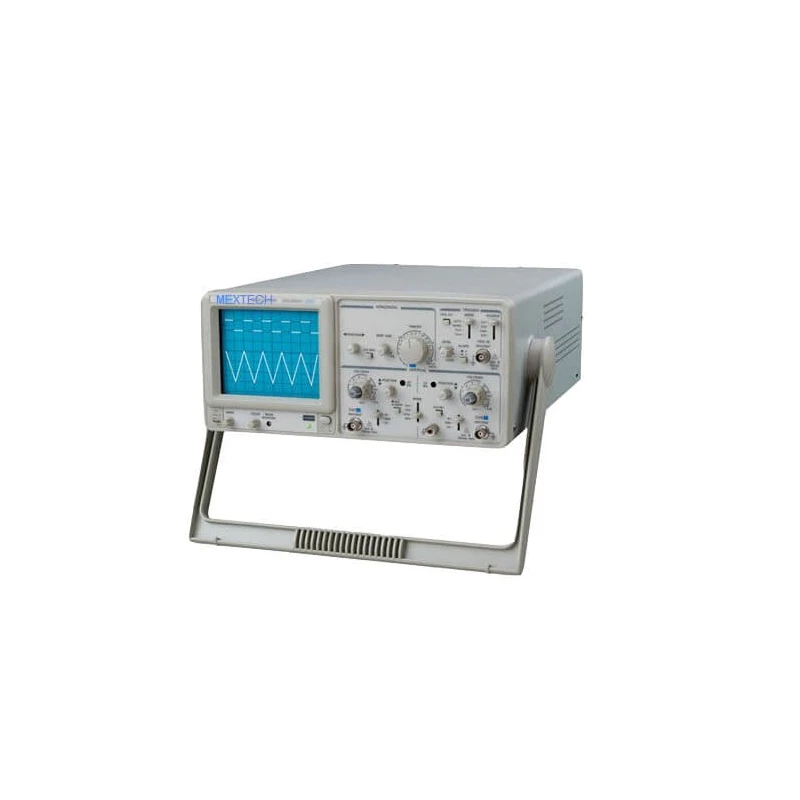

Mextech CRO with Component Testing OS-5030C image-1

Free Delivery in India | Lowest Global Shipping Charges

Mextech CRO Dual Trace Oscilloscope with Component Testing OS-5030C

Name: Mextech CRO Dual Trace Oscilloscope with Component Testing OS-5030C
Brand: MEXTECH
SKU: ADKXW
Price: 325.91 USD
Availability: InStock



SKU ADKXW Category Oscilloscope Brand MEXTECH Condition New

Specifications

Country of Origin	India
Package Contents	Instruction manual/ 1m AC supply Power wire / 2ms probes/ Probe for component Test
Accuracy	X1- ≤±3% / x5MAG
Variable Ratio	≥2.5
Bandwidth(-3dB)	x1
Max. Input Voltage	400V with the frequency ≤ 1kHz
Input impedance with EXT trigger signals Max Input Voltage	1MΩ±5%//25pF±5pF \| 400V(DC+A Cpeak) AC frequency- ≤1kHz
Coupling	AC- 5Hz to the whole frequency Range
Linearity	The amplitude change would be within±0.1V when the waveform moves vertically in the middle of the Division. x1-5%- x10MAG-10%(20NS~50NS
Brand	Mextech
Model	OS-5030C
SENSITIVITY	5mV-20V/DIV in 1-2-5 sequence / altogether 12 steps / CH1 / CH2 to 1mV/DIV with x5 magnification.
Input Impedance	1MΩ±5% // 25pF±5pF
Polarity	+/-
Rising Time	x1- ≤12ns / x5- ≤50ns
DC Balance	5mV-20V/DIV- ±0.5DIV
Vertical Mode	CH1 / CH2 / ALT / CHOP / ADD(CH1+CH2 / CH1-CH2)
Input Coupling	AC / GND / DC
CH2 INV BAL	≤1DIV
Trigger Sources	INT / EXT / LINE
INT Trigger Source	CH1 / CH2 / VERT.
Trigger Modes	NORM / AUTO(TV-H) / TV-V / LEVEL LOCK.
Sweep Time	0.5s-0.2us/DIV / in 1-2-5 sequence / altogether 20 steps
Movement by x10 MAG	less than 2DIV in CRT center

Key Features

Component Test
Power supply: AC 220V/50HZ
Dimension: 310x145x440mm (W X H X D)
Operating temperature: 0~40°C 85% RH
Storage Temperature: -10~70°C
Weight: About 8kgs

Product Description

The Mextech CRO 15SJ118Y14 with Component Testing adds extra utility by allowing users to test resistors, capacitors, and transistors directly through the CRO. This dual-functionality enhances its value for electronic labs and R&D units. With clear waveform display, frequency measurement, and component verification, it’s perfect for fault isolation and circuit diagnostics. The integration of waveform analysis and component health checks into one unit makes this CRO a compact powerhouse for professionals.

Available on EnvMart, these Oscilloscopes are perfect for visualizing and analyzing electronic signals with precision. Mextech Oscilloscopes offer accuracy and reliability, making them ideal for electronics testing, research, and laboratory applications.

Mextech CRO Dual Trace Oscilloscope with Component Testing OS-5030C

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum input voltage for the Mextech OS-5030C oscilloscope is 400V with a frequency of ≤ 1kHz.

The sensitivity range of the Mextech OS-5030C oscilloscope is from 5mV to 20V/DIV in a 1-2-5 sequence, with a total of 12 steps.

The dimensions of the Mextech OS-5030C are 310mm x 145mm x 440mm (W x H x D), and it weighs approximately 8 kg.

The operating temperature range for the Mextech OS-5030C is 0 to 40°C with a relative humidity of 85%.

The Mextech OS-5030C allows users to test resistors, capacitors, and transistors directly through the oscilloscope.

The accuracy of the Mextech OS-5030C oscilloscope is ±3% for the X1 setting and varies with magnification for the X5 setting.

The input impedance of the Mextech OS-5030C is 1MΩ ±5% with a capacitance of 25pF ±5pF.

The Mextech OS-5030C offers trigger modes including NORM, AUTO (TV-H), TV-V, and LEVEL LOCK.

The sweep time range for the Mextech OS-5030C is from 0.5 seconds to 0.2 microseconds per DIV in a 1-2-5 sequence, with a total of 20 steps.

The Mextech OS-5030C provides input coupling options of AC, GND, and DC.

The package of the Mextech OS-5030C includes an instruction manual, a 1m AC supply power wire, and two 2ms probes along with a probe for component testing.

The Mextech OS-5030C is manufactured in India.
