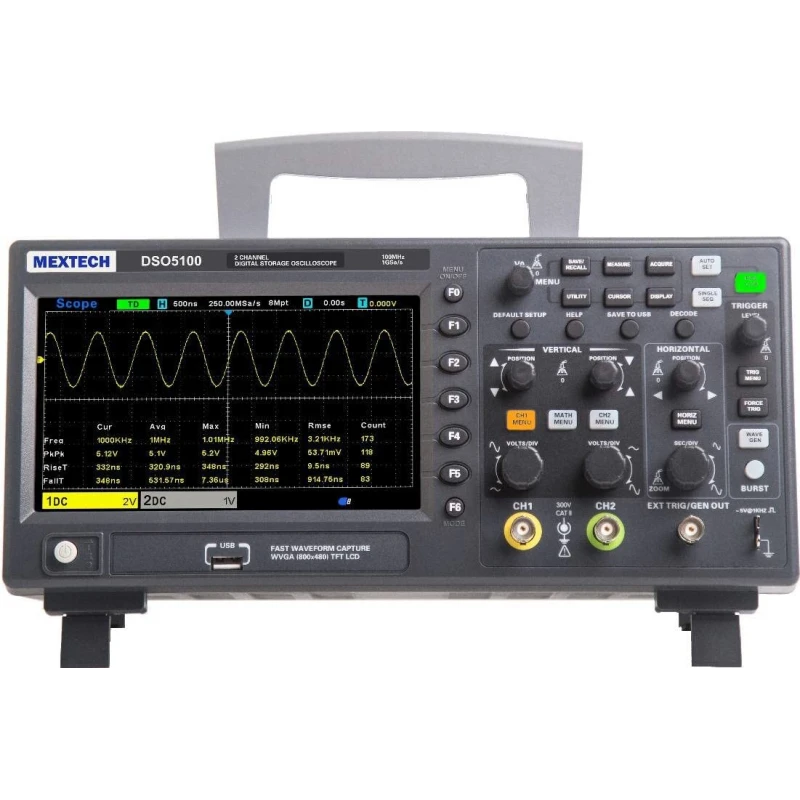

Mextech DSO Oscilloscope DSO-5100 image-1

Free Delivery in India | Lowest Global Shipping Charges

Mextech DSO Oscilloscope DSO-5100

Name: Mextech DSO Oscilloscope DSO-5100
Brand: MEXTECH
SKU: ADKXX
Price: 248.69 USD
Availability: InStock



SKU ADKXX Category Oscilloscope Brand MEXTECH Condition New

Specifications

Country of Origin	India
Package Contents	1pc Digital Storage Oscilloscope / 1pc Passive Probe / 1pc Test Leads with 2 Clips / 1pc USB Cable / 1pc Power Cord / 1pc CD with software and manual
Brand	Mextech
Dimension	318 x 110 x 150 mm (L x W x H)
Model	DSO-5100
Bandwidth	100MHz
Input Impedance	1MΩ±1% / 20pF±3pF (DC coupling)
Rise Time at BNC (typical)	≤ 3.5ns
Max. Sample	Rate 1GSa/s for half channels /500MSa/s for all channels
Vertical Resolution	8 bits
Maximum Input Voltage	300VRMS (10 X)
DC Gain Accuracy	±3% full scale for Normal or Average acquisition mode / 10V/div to 10mV/div
Memory Depth	Max.8M for half channels / Max. 4M for all channels
Input Sensitivity Range	2mV/div to 10V/div
Time Base Range	2ns/div to 100s/div (in 1-2-5 sequence)
Trigger Type	Edge / Pulse width / Video / Slope / Over Time / Window / Pattern / Interval / Under Amp
Math	+ / - / x / ÷ / FFT

Key Features

2 analog channels oscilloscope
With an external trigger
Multiple automatic measurements
Serial decode/trigger options for: UART, LIN, CAN, IIC, SPI
With integrated digital voltmeter (DVM)
Large (7.0-inch) color display
Supports SCPI remote command control

Product Description

The Mextech DSO-5100 Digital Storage Oscilloscope is a professional-grade tool featuring 100 MHz bandwidth and a high sample rate. It enables accurate waveform capture, storage, and digital analysis of high-speed electronic signals. This dual-channel DSO features a TFT color display, USB interface, and built-in waveform math functions. It is widely used in power electronics, digital circuit debugging, signal integrity testing, and education. Compact yet powerful, the DSO-5100 supports modern electronics development with speed and precision.

Available on EnvMart, these Oscilloscopes are perfect for visualizing and analyzing electronic signals with precision. Mextech Oscilloscopes offer accuracy and reliability, making them ideal for electronics testing, research, and laboratory applications.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Mextech DSO-5100 has a bandwidth of 100 MHz, allowing it to accurately capture high-speed electronic signals.

The dimensions of the Mextech DSO-5100 are 318 x 110 x 150 mm (L x W x H).

The maximum sample rate of the Mextech DSO-5100 is 1 GSa/s for half channels and 500 MSa/s for all channels.

The input impedance of the Mextech DSO-5100 is 1MΩ±1% with a capacitance of 20pF±3pF (DC coupling).

The Mextech DSO-5100 supports various trigger types including Edge, Pulse width, Video, Slope, Over Time, Window, Pattern, and Interval triggers.

The maximum input voltage for the Mextech DSO-5100 is 300 VRMS when using a 10X probe.

The vertical resolution of the Mextech DSO-5100 is 8 bits.

The memory depth of the Mextech DSO-5100 is a maximum of 8M for half channels and 4M for all channels.

The input sensitivity range of the Mextech DSO-5100 is from 2 mV/div to 10 V/div.

The package contents of the Mextech DSO-5100 include 1 Digital Storage Oscilloscope, 1 Passive Probe, 1 Test Leads with 2 Clips, 1 USB Cable, 1 Power Cord, and 1 CD with software and manual.

The Mextech DSO-5100 supports math functions including addition, subtraction, multiplication, division, and Fast Fourier Transform (FFT).

The typical rise time at BNC for the Mextech DSO-5100 is ≤ 3.5 ns.
