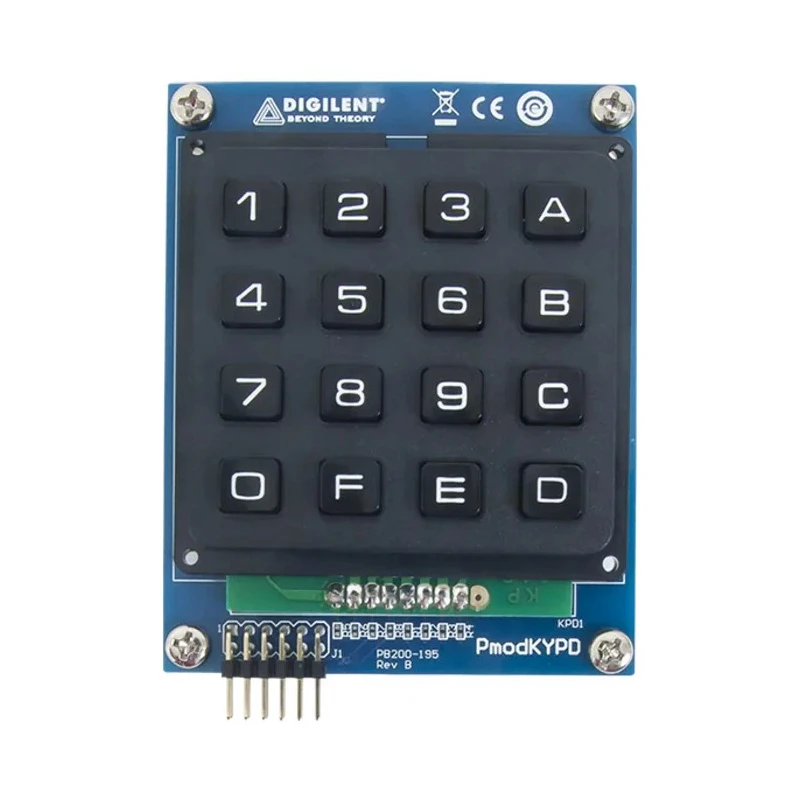

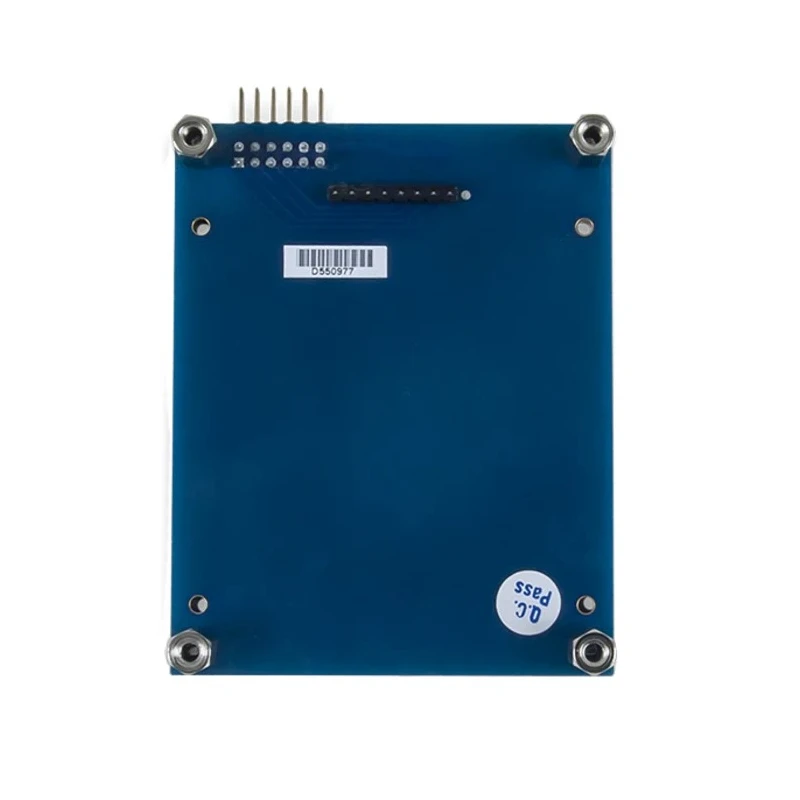

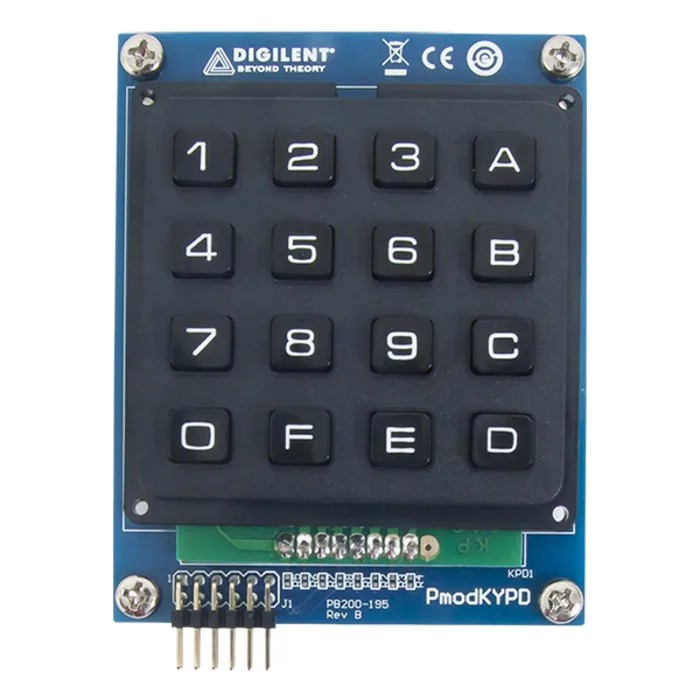

Digilent 16-Button Keypad Button Click Board with 12-pin GPIO Interface 410-195
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Digilent |
| User interface | Button |
| Model | 410-195 |
| Standards/Approvals | RoHS |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Kit Classification | Click Board |
| Kit Name | Pmod KYPD: 16-Button Keypad |
| Kit NamePmod KYPD | 16-Button Keypad |
| Pmod KYPD | 16-Button Keypad |
| Digilent Pmod KYPD | 16-Button Keypad Button Click Board |
Key Features
- Features 16 hexadecimal arranged momentary pushbuttons (0-F).
- Implements 4 rows and 4 columns to register button presses accurately.
- Uses a 12-pin Pmod port with GPIO interface for flexible connectivity.
- Detects simultaneous button presses for enhanced input capability.
- Adheres to Digilent Pmod interface specification type 1 for compatibility.
- Isolated rows and columns ensure minimal interference and noise.
- Lead-free construction supports environmentally safe usage.
- Compact PCB size of 3.4 in x 2.7 in (8.6 cm x 6.9 cm) for adaptable designs.
Product Description
Digilent 410-195 16-Button Keypad Button Click Board is a versatile Human-Machine Interface (HMI) development tool designed to provide precise and configurable input control. Featuring 16 momentary pushbuttons arranged in a hexadecimal format from 0 to F, this keypad enables simultaneous detection of multiple button presses, enhancing interaction capabilities in embedded and IoT systems. Its communication interface is a 12-pin Pmod port employing GPIO protocol, ensuring broad compatibility with various host boards.
The keypad employs isolated rows and columns architecture, which minimizes interference while maintaining clean signal integrity. Constructed with lead-free materials, it conforms to RoHS standards, promoting environmentally responsible manufacturing and deployment.
The compact printed circuit board measures 3.4 inches by 2.7 inches (8.6 cm by 6.9 cm), making it suitable for space-constrained applications while maintaining robust performance. The device complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, underscoring its electrostatic discharge protection and quality assurance.
This keypad board is commonly used in electronics laboratories, embedded system projects, and Internet of Things (IoT) applications where reliable and configurable input devices are essential. Its design supports developers and engineers in prototyping and production stages, facilitating efficient human-machine interfacing.
Features 16 hexadecimal arranged momentary pushbuttons (0-F). Implements 4 rows and 4 columns for array input detection. Includes a 12-pin Pmod interface utilizing GPIO protocol. Detects simultaneous button presses with high accuracy.
Isolated rows and columns improve signal clarity and reduce interference. Lead-free PCB construction in compliance with RoHS. Small form factor of 3.4 in x 2.7 in (8.6 cm x 6.9 cm) for flexible deployments. Certified to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards.
Explore more development tools and human-machine interface devices in the Electronics Components category at EnvMart for your industrial, laboratory, and embedded design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The keypad features 16 momentary pushbuttons arranged in a hexadecimal format from 0 to F, implemented in a 4-row and 4-column configuration for accurate button press registration.
It utilizes a 12-pin Pmod port with a GPIO interface, ensuring compatibility with various host boards.
Yes, it is designed to detect simultaneous button presses, enhancing input capability for user interactions.
The compact PCB measures 3.4 inches by 2.7 inches (8.6 cm by 6.9 cm), suitable for space-constrained applications.
It complies with RoHS standards and is certified to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 for electrostatic discharge protection.
The keypad is constructed with lead-free materials, supporting environmentally safe usage and compliance with RoHS regulations.
It is commonly used in electronics laboratories, embedded system projects, and Internet of Things (IoT) applications where reliable input devices are needed.
The isolated rows and columns improve signal clarity and reduce interference, ensuring clean signal integrity during operation.
This product is classified as a Click Board, specifically the Pmod KYPD: 16-Button Keypad.
The user interface type is a button, allowing for direct user interaction through the 16 pushbuttons.
The keypad is manufactured in Taiwan, ensuring adherence to quality standards.
The model number of this keypad is 410-195, which identifies it within the Digilent product line.
