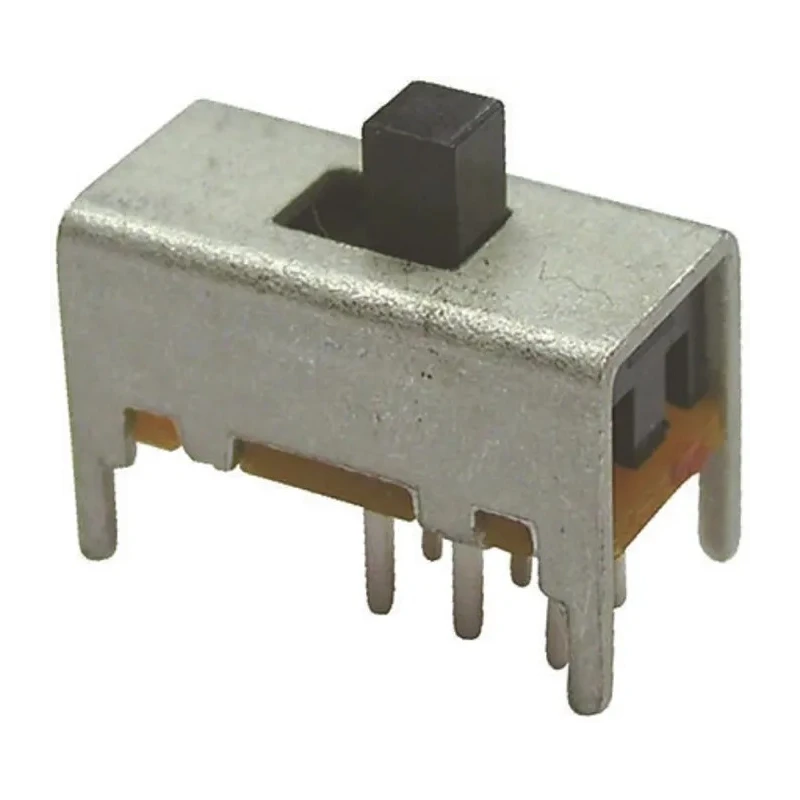

Nidec Components PCB Slide Switch DPDT Latching 30V DC 300mA MFS201N-19-Z
Specifications
| Country of Origin | China |
|---|---|
| Brand | Nidec Components |
| Length | 11.8mm |
| Model | MFS201N-19-Z |
| Depth | 7.9mm |
| Width | 7.9mm |
| Mount Type | PCB |
| Series | MFS |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -10°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | Latching |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 300mA |
| Mechanical Life | 5000Cycles |
Key Features
- The switch features a DPDT contact configuration for dual pole, double throw operations.
- It is designed for PCB mounting with solder-type terminals for secure connections.
- Latching switch operation ensures stable switching positions during use.
- The device has a compact micro-miniature profile measuring 11.8 mm length, 7.9 mm width, and 7.9 mm depth.
- Mechanical life is rated for 5,000 cycles, ensuring durable performance.
- Operating temperature ranges from -10°C to 70°C.
- It is compliant with RoHS standards for restricted hazardous substances.
- This switch is non-illuminated and configured as On-On switch configuration.
Product Description
Nidec Components MFS201N-19-Z PCB Slide Switch DPDT Latching is a micro miniature slide switch designed for low-current applications up to 300mA at 30V DC. It provides robust latching operation with dual pole double throw contact configuration suitable for PCB mounting. The solder terminal connection type guarantees reliable soldered PCB interface.
Its compact form factor with dimensions of 11.8 mm length, 7.9 mm width, and 7.9 mm depth makes it ideal for space-constrained electronic devices. The switch supports an electrical life of 5,000 cycles and mechanical life rated similarly, ensuring sustained reliability in industrial and commercial electronics applications.
Operating across a temperature range of -10°C to 70°C, this switch suits various environmental conditions typical in industrial automation, consumer electronics, and electronic instrumentation. It fully complies with RoHS directives, making it compatible with eco-conscious manufacturing standards.
The device is a double pole double throw (DPDT) slide switch supporting latching switch operation for stable toggle positions. It features solder terminal types for durable and easy PCB integration. Non-illuminated construction prevents electrical noise and is suitable for general switching use.
Compact micro-miniature series design (MFS) facilitates use in tight spaces. Contact current capacity is rated at 300mA with 30V DC voltage compatibility. Designed for long mechanical and electrical life with 5,000 cycles typical rating.
Meets environmental and safety standards with RoHS compliance and a wide temperature operating range.
This PCB slide switch is commonly used in industrial automation, electronic control panels, test equipment, and other precision electronic assemblies where reliable switching with minimal footprint is required. Its design supports seamless integration into circuit boards with solder mounting.
Explore the Electronics & Electricals category at EnvMart for compatible switches, sockets, and electronic components by trusted brands including Nidec Components.
Explore more products in our Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a DPDT (Double Pole Double Throw) contact configuration, allowing for dual pole, double throw operations.
The switch has a compact micro-miniature profile measuring 11.8 mm in length, 7.9 mm in width, and 7.9 mm in depth.
The maximum operating temperature for this switch is 70°C.
It is rated for a contact current capacity of 300mA and is compatible with 30V DC voltage.
This model is designed for PCB mounting and features solder-type terminals for secure connections.
The mechanical life of this switch is rated for 5,000 cycles, ensuring reliable performance over time.
It supports latching switch operation, which ensures stable switching positions during use.
The minimum operating temperature for this model is -10°C.
Yes, it is compliant with RoHS standards for restricted hazardous substances.
This switch is commonly used in industrial automation, electronic control panels, test equipment, and other precision electronic assemblies.
It features solder terminal types, which provide a reliable soldered connection to the PCB.
The switch configuration is On-On, allowing for two stable positions.
