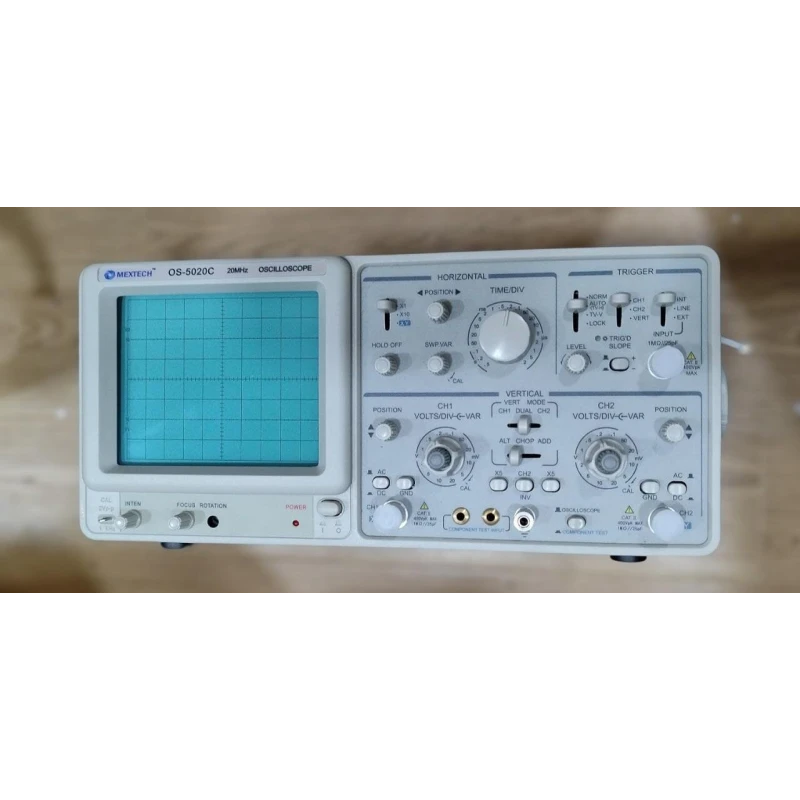

Mextech Oscilloscope OS-5020C
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | MEXTECH OS-5020C OSCILLOSCOPE / Main Unit / Instruction manual / 1m AC supply Power wire / 2ms probes / Probe for component Test |
| Accuracy | X1- ≤±3% / x5MAG- ≤±5% / |
| Variable Ratio | ≥2.5 ≥2.5-1 |
| Bandwidth(-3dB) | x1- DC(AC10Hz)~20MHz |
| Max. Input Voltage | 400V with the frequency ≤ 1kHz |
| Input impedance with EXT trigger signals Max Input Voltage | 1MΩ±5%//25pF±5pF |
| Coupling | AC |
| Linearity | The amplitude change would be within±0.1V when the waveform moves vertically in the middle of the Division. x1-5%- x10MAG- 10%(20NS~50NS - 15%) |
| Brand | Mextech |
| Model | OS-5020C |
| SENSITIVITY | 5mV-20V/DIV in 1-2-5 sequence / altogether 12 steps / CH1 / CH2 to 1mV/DIV with x5 magnification. |
| Input Impedance | 1MΩ±5% // 25pF±5pF |
| Polarity | +/- |
| Rising Time | x1- ≤17.5ns / x5- ≤50ns |
| DC Balance | 5mV-20V/DIV- ±0.5DIV |
| Vertical Mode | CH1 / CH2 / ALT / CHOP / ADD(CH1+CH2 / CH1-CH2) |
| Input Coupling | AC / GND / DC |
| CH2 INV BAL | ≤1DIV |
| Trigger Sources | INT / EXT / LINE |
| INT Trigger Source | CH1 / CH2 / VERT. |
| Trigger Modes | NORM / AUTO(TV-H) / TV-V / LEVEL LOCK. |
| Sweep Time | 0.5s-0.2us/DIV / in 1-2-5 sequence / altogether 20 steps |
| Movement by x10 MAG | less than 2DIV in CRT center |
Key Features
- Component Test
- Power supply: AC 220V/50HZ
- Dimension: 310x145x440mm (W X H X D)
- Operating temperature: 0~40°C 85% RH
- Storage Temperature: -10~70°C
- Weight: About 8kgs
Product Description
The Mextech OS-5020C Oscilloscope is a compact, high-precision analog oscilloscope designed for testing and debugging electronic circuits. With a 20 MHz bandwidth and dual-channel input, it allows for real-time waveform monitoring and signal diagnostics. It features a large CRT display, stable triggering, and adjustable time base. This oscilloscope is ideal for use in labs, electronics workshops, and technical training institutes. Its sturdy chassis and clear front-panel controls make it accessible even for students and beginners in electronics.
Available on EnvMart, these Oscilloscopes are perfect for visualizing and analyzing electronic signals with precision. Mextech Oscilloscopes offer accuracy and reliability, making them ideal for electronics testing, research, and laboratory applications.
