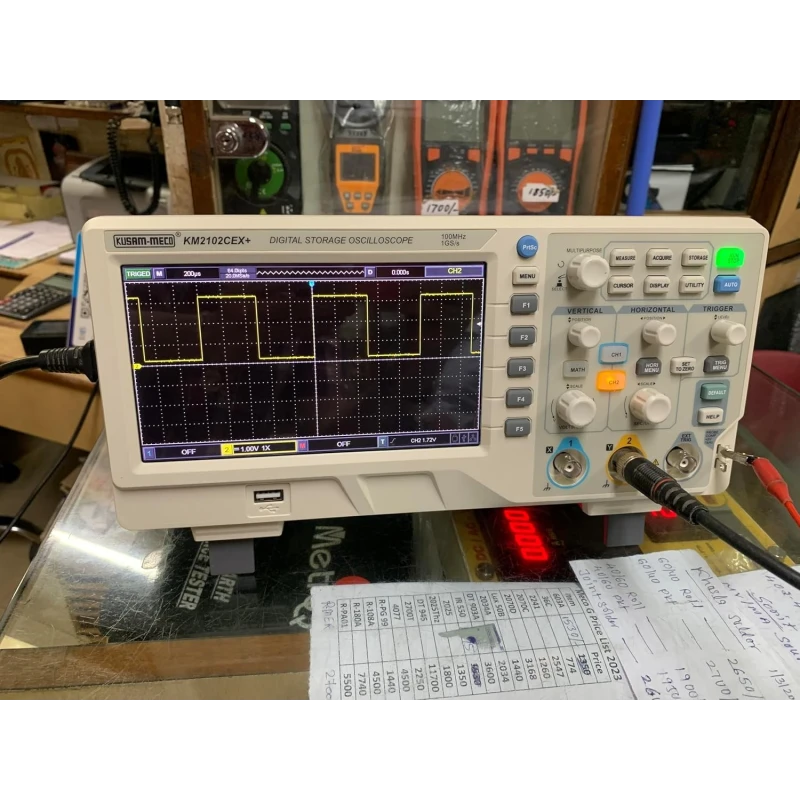

Kusam Meco Digital Storage Oscilloscopes KM2102CEX+
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Kusam Meco KM 2102CEX+ Digital Storage Oscilloscopes / Power Cord / UT-D15 |
| Display | 7″ TFT LCD (800×480) |
| Brand | Kusam Meco |
| Power | 100–240VAC 45–440Hz |
| Interface | USB OTG |
| Dimensions | 306×147×122mm |
| Function | Digital Storage Oscilloscope |
| Model | KM2102CEX+ |
| Weight | 2.2kg |
| Bandwidth | 100MHz |
| Sampling rate | 1GSa/S |
| Input Impedance | 1MΩ±2% / 24±3pF |
| Channels | 2 |
| Waveform Capture Rate | ≥2000wfms/S |
| Timing accuracy | ±(50+2×Service Life)Ppm |
| Input Coupling | DC / AC / GND |
| Vertical Resolution | 8 bits |
| Memory Depth | 25kpts |
| Rise Time | Less Than 3.5ns |
| Vertical Scale | 1mV/Div–20V/Div |
| Time Base Scale | 2ns/Div–50s/Div |
| Deviation | ±10div (Center) |
| Time Base Mode | Y-T / X-Y / Roll |
| Storage Methods | Setup / Wave / Bitmap |
| Trigger Types | Edge / Pulse / Alternate |
| Math Operations | PLus / Minus / Multiply / Divide |
| Auto Measurements | 23 Types |
| Displayed Measurements | 5 Simultaneous |
| Frequency Counter | 6 Bits |
Key Features
- 100 MHz bandwidth and 1 GSa/s sampling rate dual-channel oscilloscope
- 7-inch TFT LCD for clear waveform display
- 34 auto measurements and advanced trigger modes
- Supports FFT, math operations and record/replay functions
- USB OTG interface for data storage and PC communication
Product Description
The Kusam Meco KM2102CEX+ Digital Storage Oscilloscope is a professional 100MHz bandwidth instrument featuring a 1GSa/s sampling rate. It comes with a bright 7-inch TFT LCD screen that provides clear waveform observation and quick response. The oscilloscope supports advanced measurement functions for frequency, time, and amplitude analysis. Compact, reliable, and durable, it is ideal for laboratories, electronics repair workshops, and educational institutions. It delivers precise signal tracking for engineers performing circuit testing and waveform diagnostics.
Available on EnvMart, these Digital Oscilloscopes offer 100 MHz bandwidth with high sampling rate. Kusam Meco Instruments are perfect for waveform analysis and signal diagnostics.
