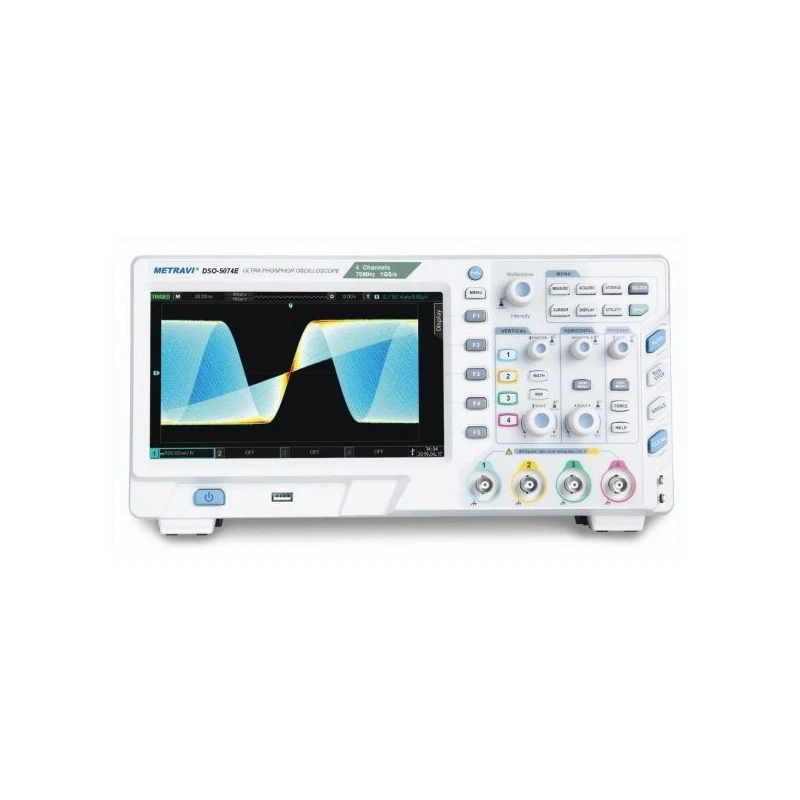

Metravi Digital Storage Oscilloscope DSO-5074E image-1
Previous
Next
Metravi Digital Storage Oscilloscope DSO-5074E image-1
Share
Facebook Twitter Pinterest Tumblr
Free Delivery in India | Lowest Global Shipping Charges
24/7 Customer Support
24/7 Customer Support

Shop with confidence knowing that our 24/7 Customer Support is always available to assist with any inquiries

24/7 Customer Support
Save up to 28% with GST Input

Avail maximum benefits from input tax mechanism on all your Business Invoices. Get GST Invoices on your business purchases. And 0% Taxes on all worldwide deliveries

Lowest Price Challenge
# Lowest Price Challenge

If you find this product anywhere at lower cost than us. Call us and we will not only match the price but also give a complimentary coupon

Lowest Price Challenge
100% Original Products

Shop with assurance, as each product we offer is 100% original, ensuring quality and authenticity with every purchase

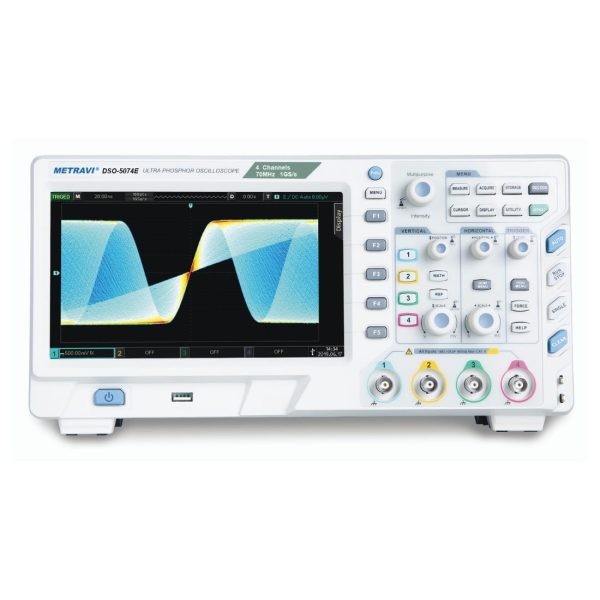

Metravi Digital Storage Oscilloscope DSO-5074E

SKU ADSOK Category Oscilloscope Brand Metravi Condition New

Specifications

Country of Origin India
Package Contents Metravi DSO-5074E Digital Storage Oscilloscope
Brand Metravi
Model DSO-5074E
Bandwidth 70MHz
Optional Interface 25MHz Function/Arbitrary Waveform Generator
Sample Rate 1GS/s
Channels 4
Waveform Capture Rate 80000wfms/s
Standard Interface USB-Host/USB-Device/LAN/AUX(Trig Out/Pass-Fail)
Measurements 5 simultaneous
Input Coupling (1MΩ±2%)∥(20pF±3pF)
DC Gain Accuracy ±3%
Vertical Scale 1mV/div–20V/div(1MΩ)
Time Base Scale 5ns/div–50s/div
Frequency Counter Hardware 6-bit counter(selectable channel)
Max Memory Depth 56Mpts(single channel)
Waveform Record 65000frames
Trigger Edge/Pulse width/Runt/Window/N-edge/Delay/Timeout/Duration/Setup-hold/Slope/Video/Code
Bus Decode RS-232/UART/I²C/SPI
Waveform Operation A+B/A−B/A×B/NB/FFT/Logic operation/Editable advanced
Measurement Statistic Average/Max/Min/Standard Deviation/Count

Key Features

  • Sample rate up to 1GS/s
  • Channels 4
  • Bandwidth 70MHz, 100MHz
  • Memory Depth 56Mpts (single channel)
  • Waveform Capture Rate up to 80,000 wfms/s
  • 256 multi-level intensity grading display
  • Up to 65,000 frames for waveform record, replay
  • Increased trigger types: Edge, pulse width, runt, window, N-edge,
  • delay, timeout, duration, setup/hold, slope, video, code
  • Support serial bus trigger and decoding (RS-232, I2C, SPI included)
  • 8 inches, TFT LCD, WVGA (800 x 480)
  • Interface: USB Host, USB Device, LAN, AUX (Trig Out, Pass/Fail)

Product Description

Metravi DSO-5074E Digital Storage Oscilloscope is a powerful and versatile four-channel testing instrument designed for accurate signal analysis in industrial, laboratory, and R&D environments. Featuring a high-resolution TFT LCD display and 70MHz bandwidth, it delivers clear waveform visualization with a fast sampling rate of 1GSa/s for precise measurements. With an impressive memory depth of up to 56Mpts (single channel) and a waveform capture rate of 80000 wfms/s, it enables detailed signal analysis and efficient troubleshooting of complex circuits. The oscilloscope supports advanced triggering functions including edge, pulse width, slope, video, and timeout, ensuring accurate signal capture under various conditions. Its optimized software and user-friendly interface reduce operation time and enhance productivity. Equipped with multiple connectivity options such as AUX, LAN, RS-232, and USB, the Metravi DSO-5074E is ideal for electronics testing, embedded system development, and educational applications. Available on EnvMart, these Oscilloscopes provide detailed visualization of electrical signals, essential for diagnostics, troubleshooting, and design in electronics and engineering. Metravi Oscilloscopes stand out for their accuracy, intuitive interface, and robust performance—ideal for labs, R&D, and field applications alike.

Metravi Digital Storage Oscilloscope DSO-5074E
Looking to purchase in bulk?
  • Purchase item in bulk quantity
  • Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The bandwidth of this model is 70MHz, allowing for effective signal analysis.

It has a maximum sample rate of 1GS/s, enabling precise measurements of fast signals.

This oscilloscope supports 4 channels for simultaneous signal analysis.

The maximum memory depth for a single channel is 56Mpts, allowing for detailed signal capture.

It supports various trigger types including edge, pulse width, runt, window, and more, enhancing its versatility for signal capture.

The waveform capture rate is up to 80,000 wfms/s, which facilitates efficient troubleshooting of complex circuits.

It includes USB Host, USB Device, LAN, and AUX (Trig Out, Pass/Fail) interfaces for connectivity.

The vertical scale ranges from 1mV/div to 20V/div, accommodating a wide variety of signal amplitudes.

It features an 8-inch TFT LCD display with a resolution of 800 x 480 for clear waveform visualization.

It can perform up to 5 simultaneous measurements, aiding in comprehensive signal analysis.

The oscilloscope is manufactured in India, reflecting its origin.

It supports decoding for RS-232, I²C, and SPI bus protocols, making it suitable for embedded system development.
