Opto Insulated Temperature Transmitter With Sensor Pt100 HD788TR1-I

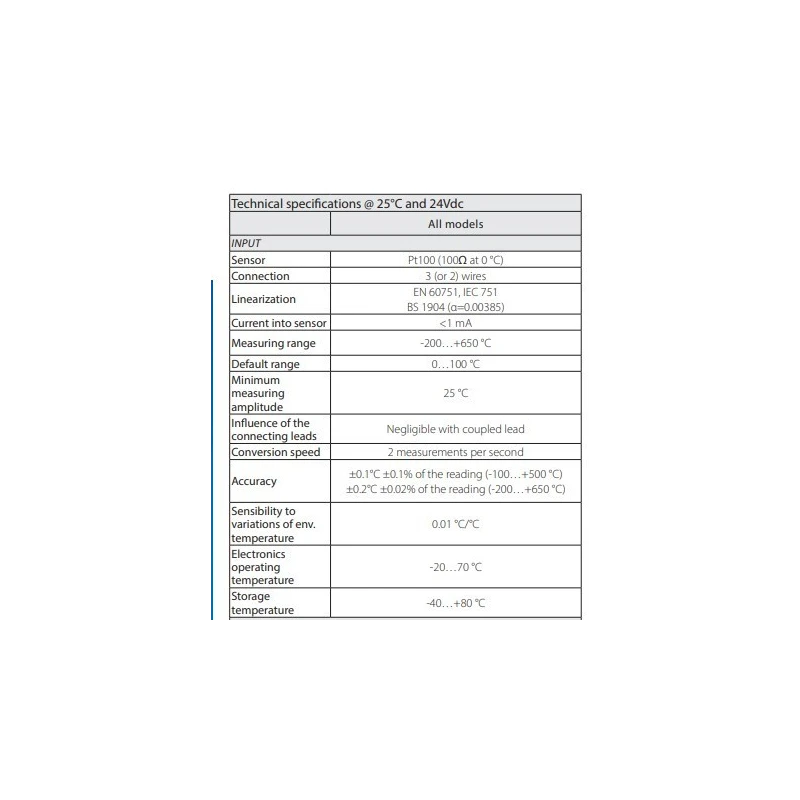

Specifications
| Sensor | Pt100 (100O at 0 Degree C) |
|---|---|
| Connection | 3 (or 2) wires |
| Minimum measuring range | -200 To +650 Degree C |
| Conversion speed | 2 measurements per second |
Key Features
- Easy to Set Up And Quick To Install
- Accurate And Reliable System
Product Description
Opto Insulated Temperature Transmitter With Sensor Pt100, HD788TR1-I are 4 To 20 mA configurable transmitters withmicroprocessor for Pt100 Platinum temperature sensor.They convert the temperature variations found with any standard Pt100sensor (100O at 0 C) into a linear current signal with two leads in the field420 mA.Linearization with a digital technique allows excellent precision andstability to be obtained.User can set the 420 mA output (or 204 mA) in any temperature rangewithin the field -200+650 C, with a minimum amplitude of 25 C; it maybe simply reprogrammed by pressing a key, without any need to regulatejumpers, potentiometers, software, etc.
- Great Flexibility
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measuring range of the Opto Insulated Temperature Transmitter with Sensor Pt100 is from -200 to +650 degrees Celsius.
It converts temperature variations from a standard Pt100 sensor into a linear current signal of 4 to 20 mA, configurable by the user.
This model uses a Pt100 sensor, which has a resistance of 100 ohms at 0 degrees Celsius.
The output can be configured to either 4 to 20 mA or 2 to 20 mA, allowing flexibility in application.
This temperature transmitter can be connected using either 2 or 3 wires, depending on the application requirements.
The minimum amplitude for the output range is 25 degrees Celsius, providing flexibility in temperature measurement.
This model is primarily used for accurate temperature measurement in industrial applications, utilizing the Pt100 sensor.
Digital linearization allows for excellent precision and stability in temperature readings, enhancing measurement accuracy.
The transmitter is designed for easy setup and quick installation, making it user-friendly for various applications.
The product specifications do not mention specific maintenance requirements, but regular checks are recommended to ensure optimal performance.
