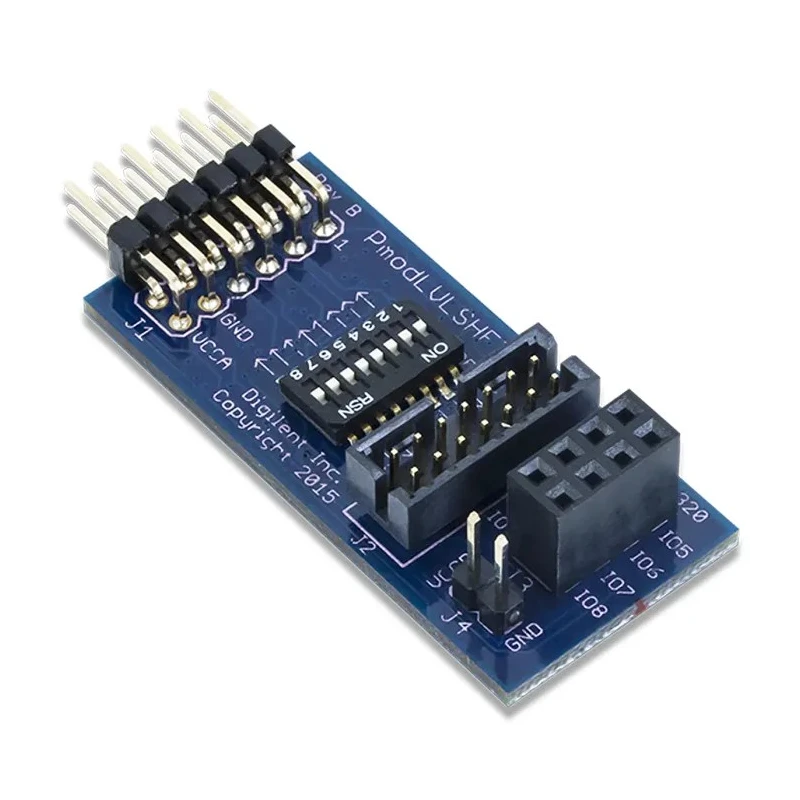

Digilent Pmod LVLSHFT Logic Level Shifter Expansion Module 1.8-5.5V GPIO Interface 410-320

It operates within a logic supply voltage range of +1.8V to +5.5Vdc, facilitating seamless signal translation between different logic voltage levels.

This expansion module is ideal for developers and engineers who need to interface 3.3V CMOS logic signals with other logic levels required for applications such as JTAG programming, enabling flexible and reliable board design.

The module includes two 7-pin JTAG headers and eight DIP switches that allow precise control over signal translation directions. Its 12-pin Pmod connector with a GPIO interface makes it compatible with a range of development boards and systems.

Measuring only 46 mm by 20 mm, the Pmod LVLSHFT is suitable for integration in compact development environments, offering both performance and convenience. Supports logic voltage translation between 1.8V and 5.5V supply voltages.

Two 7-pin JTAG headers provide extended connectivity options. Eight DIP switches enable configurable translation direction settings. 12-pin Pmod GPIO connector simplifies interfacing with host devices. Compact and robust design with 46 x 20 mm dimensions.

Manufactured in Taiwan, ensuring component quality.

This product is widely used in electronics development, educational tools, prototyping, and embedded system design in industrial, laboratory, and commercial applications. It is part of the Digilent range of analogue development kits, serving diverse user requirements.
