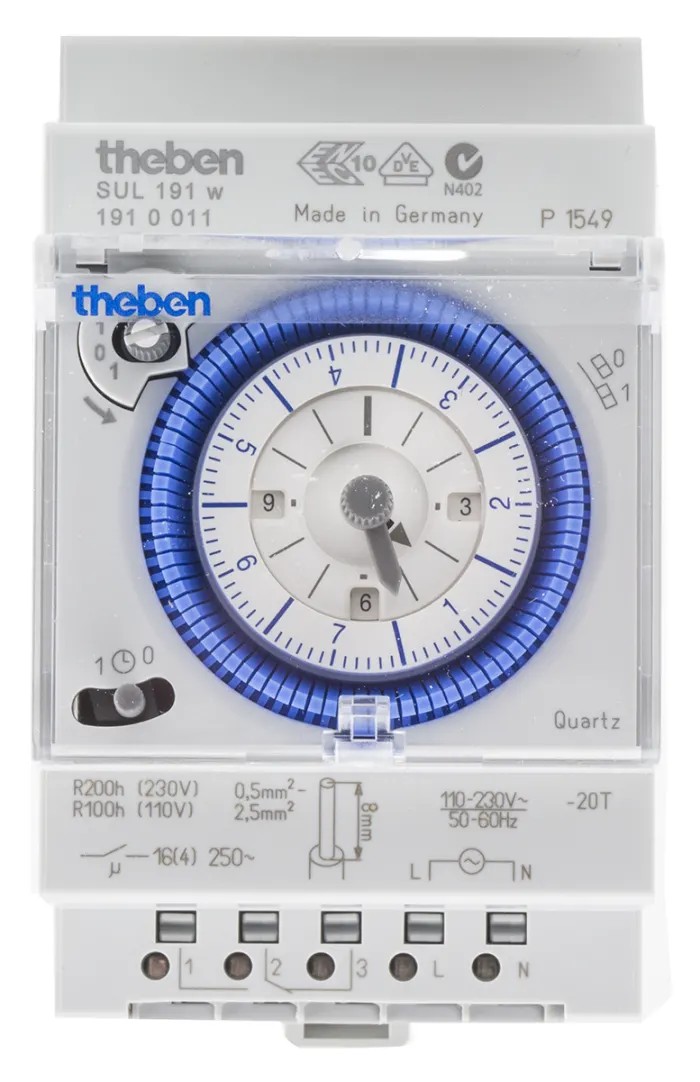

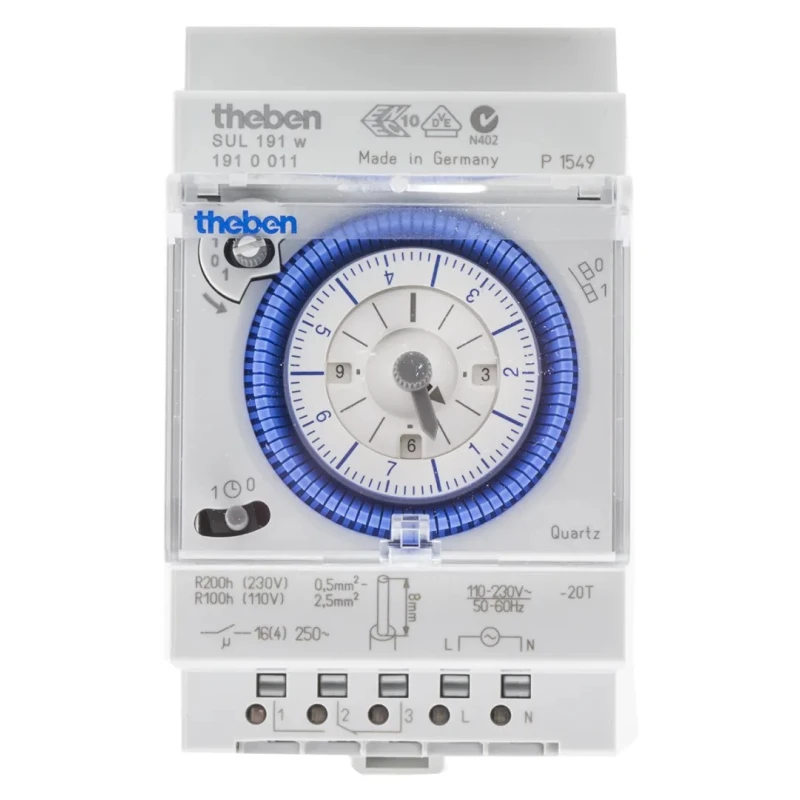

Theben Analogue DIN Rail Time Switch Single Channel 230V AC SUL 191 w

Theben SUL 191 w Analogue DIN Rail Time Switch is a high-precision, single channel time control device designed for industrial and commercial automation applications operating at 230V AC. This time switch features a large variety of functionality including daily and weekly programming, with an easy-to-read clock hand display and quartz-controlled timing for reliable accuracy.

The device offers simple summer and winter time correction, allowing adjustments by turning the clock hand both clockwise and anti-clockwise, ensuring continuous operational accuracy throughout the year. The built-in manual switch provides three user-selectable modes: continuous ON, AUTO programming mode, and continuous OFF, enhancing operational flexibility.

Installation is convenient with DuoFix spring terminals that accept wire diameters from 0.5 to 2.5 mm² and support both wire strands with or without wire end sleeves. The switching contact configuration is SPDT allowing versatile switching capabilities, and the switching status display enables users to quickly verify the current state of the switch.

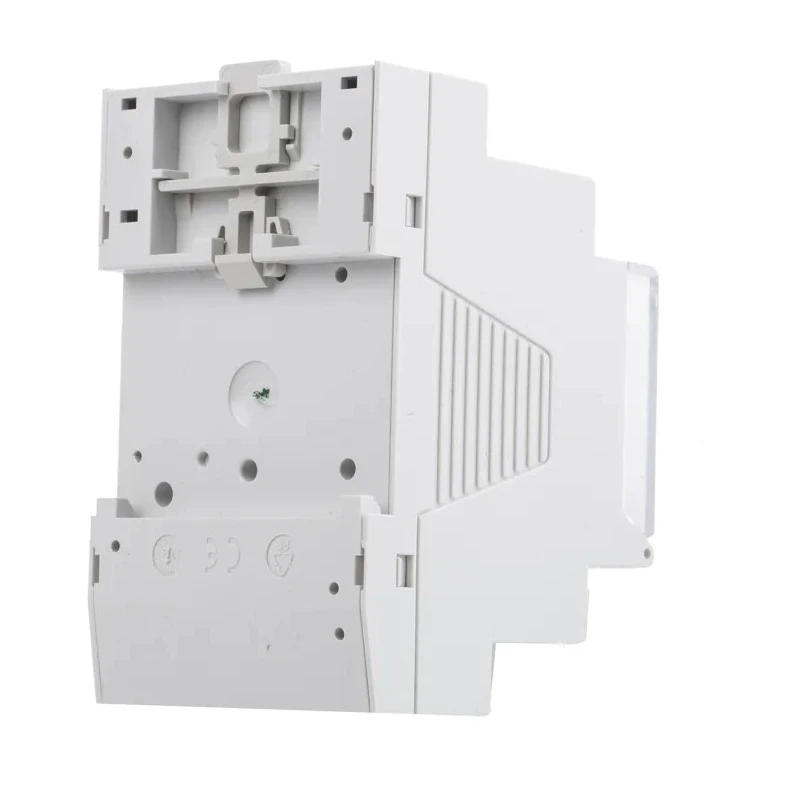

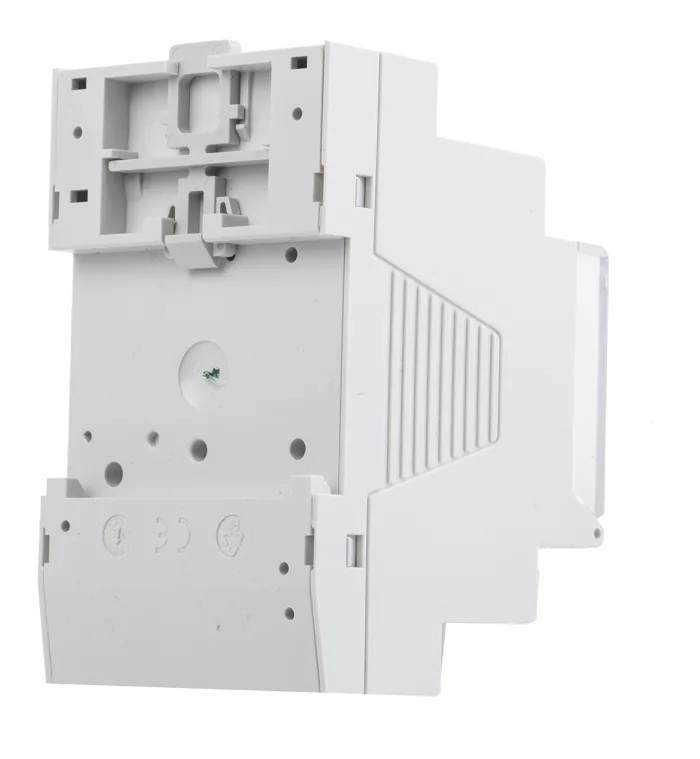

The switch maintains memory spaces for 84 switching actions and is backed by a battery life of 200 hours, ensuring programming retention during power failures. This compact unit measures 90.4mm in height and 65.6mm in depth, designed specifically for DIN rail mounting in control panels. It adheres to established safety and quality standards including VDE, RoHS compliance, and EN 60 730-1 certification.

Manufactured in Germany, the Theben SUL 191 w guarantees high build quality and durability required in demanding industrial environments. This product is highly suitable for industrial automation systems, process control, HVAC, manufacturing plants, and various commercial electrical control applications.

Single channel analogue time switch suitable for daily and weekly programming. Quartz controlled mechanism ensures accurate time measurement. Manual switch with three positions: continuous ON, AUTO, and continuous OFF. DuoFix spring terminals support wire diameters from 0.5 to 2.5 mm².

Switching status is visually displayed for easy operation monitoring. Battery backup with 200 hours of life maintains time settings during power interruptions. Compact DIN rail mounting with dimensions 90.4mm height and 65.6mm depth.

Compliance with standards including VDE, RoHS, and EN 60 730-1 for safety and quality assurance. Manufactured in Germany ensuring high quality and reliability. Explore more reliable time switches and automation control products with Theben on EnvMart for industrial and commercial solutions.
