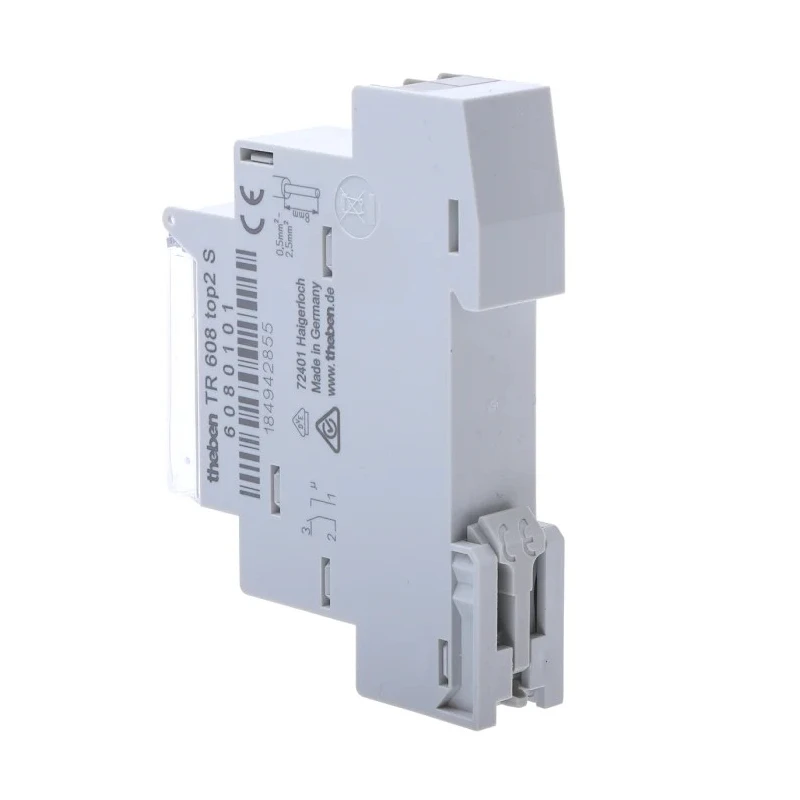

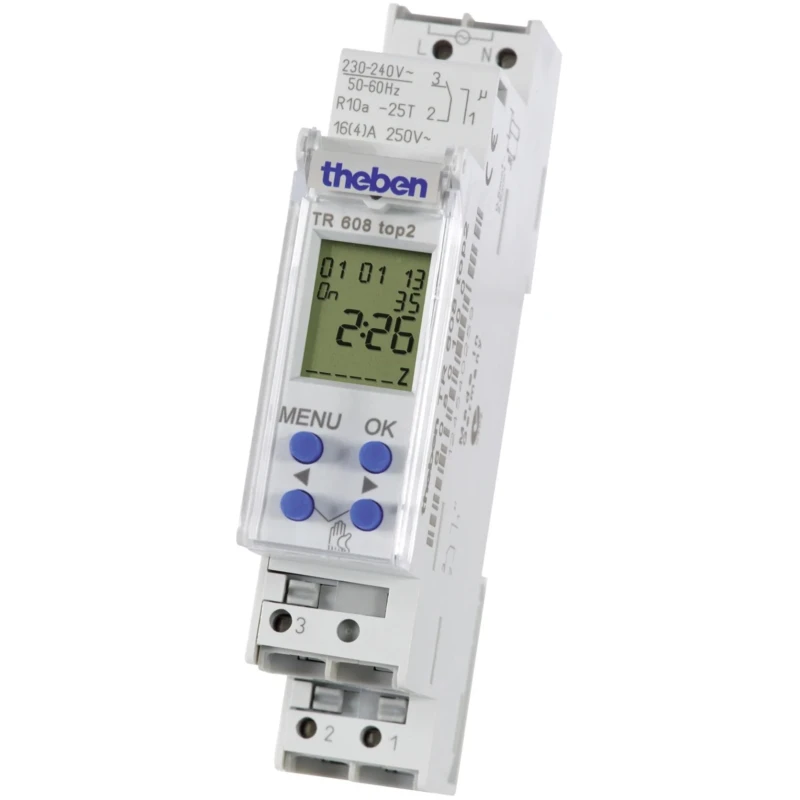

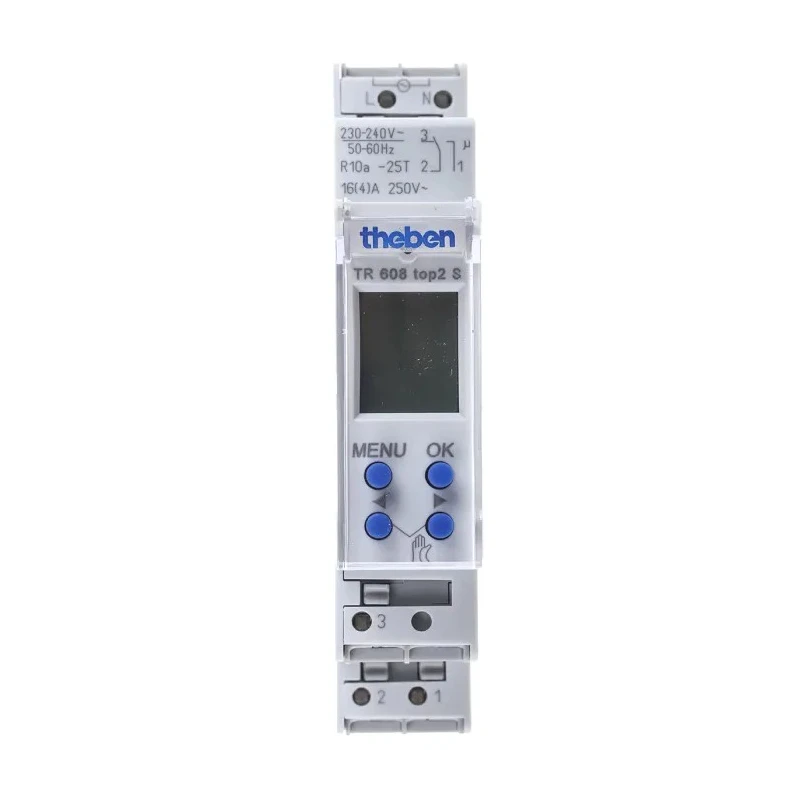

Theben Digital DIN Rail Time Switch 230V AC Single Channel SPDT Astronomical Timer TR608 top2 S
Specifications
| Country of Origin | India |
|---|---|
| Brand | Theben |
| Battery Life | 10year |
| Height | 86mm |
| Model | TR608 top2 S |
| Depth | 65.5mm |
| Contact Configuration | SPDT |
| Sub Type | Digital |
| Terminal type | Screw |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS, CE |
| Maximum Supply Voltage | 230V ac |
| Units Measured | Hours |
| Memory Spaces | 2 |
| Segment Length | 24h |
| 1 Channel Digital DIN Rail Time Switch Measures Minutes, 230 V acBrand | Theben / Timeguard |
| 24 hr 7 day 1 channel digital timer,230VBrand | Muller |
Key Features
- Single channel digital astronomical timer with weekly program and 56 memory spaces.
- Compact DIN rail mounting with secure screw terminal connections.
- Zero-cross switching to protect relay and support high lamp loads.
- Durable temperature resistant thermoplastic housing.
- Automatic summer/winter time changeover included.
- User-friendly text-oriented display guidance and pre-set date/time.
- PIN coding and permanent switching modes provide operational security.
- 10-year battery life for reliable memory retention.
Product Description
Theben TR608 top2 S is a high quality digital DIN rail time switch designed for industrial and commercial automation applications. It operates at a maximum supply voltage of 230V AC and features a single channel with SPDT contact configuration enabling versatile switching tasks.
The device includes an astronomical timer with a weekly program and 56 memory spaces, allowing precise and flexible scheduling. Its housing is constructed from highly temperature-resistant, self-extinguishing thermoplastic, ensuring safety and long service life even under demanding conditions.
This Time Switch offers zero-cross switching, which reduces relay wear and efficiently handles high lamp loads. User-friendly features include text-based guidance on the display, pre-set date and time, PIN coding protection, and permanent ON/OFF switching options.
The onboard battery supports a 10-year lifespan, maintaining memory during power outages. The product can be safely installed on DIN rails with DuoFix spring terminals compatible with wire diameters from 0.5 mm² to 2.5 mm², with or without wire end sleeves.
Automatic summertime and wintertime adjustments further enhance operational convenience, making this device suitable for industrial automation, HVAC systems, process control, and building management projects.
Single channel digital astronomical timer with weekly scheduling program and 56 memory spaces. Zero-cross switching ensures relay longevity and supports high lamp loads. Durable thermoplastic housing with temperature resistance and self-extinguishing properties.
DuoFix spring terminals allow flexible and secure wiring connections. Text-oriented display helps with intuitive user interaction and setup. Long-lasting 10-year battery life ensures uninterrupted memory retention. Automatic summer/winter time changeover simplifies time adjustments.
PIN coding and permanent on/off switching for secure and flexible operation. Compact dimensions: Height 86 mm, Depth 65.5 mm, suitable for DIN rail mount. Explore more Theben products in the Industrial Automation Systems category at EnvMart for reliable and precise time control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this time switch is 230V AC.
This model has 56 memory spaces for scheduling tasks.
It features a single channel with SPDT (Single Pole Double Throw) contact configuration.
The dimensions are 86 mm in height and 65.5 mm in depth, suitable for DIN rail mounting.
It uses DuoFix spring terminals that are compatible with wire diameters from 0.5 mm² to 2.5 mm².
Yes, it includes automatic summer and winter time changeover features.
The onboard battery supports a lifespan of 10 years, ensuring reliable memory retention during power outages.
The housing is made from temperature-resistant, self-extinguishing thermoplastic.
It complies with RoHS and CE standards.
It is suitable for industrial automation, HVAC systems, process control, and building management projects.
Zero-cross switching reduces relay wear and efficiently handles high lamp loads, enhancing longevity.
It includes text-oriented display guidance, pre-set date/time, and PIN coding for operational security.
