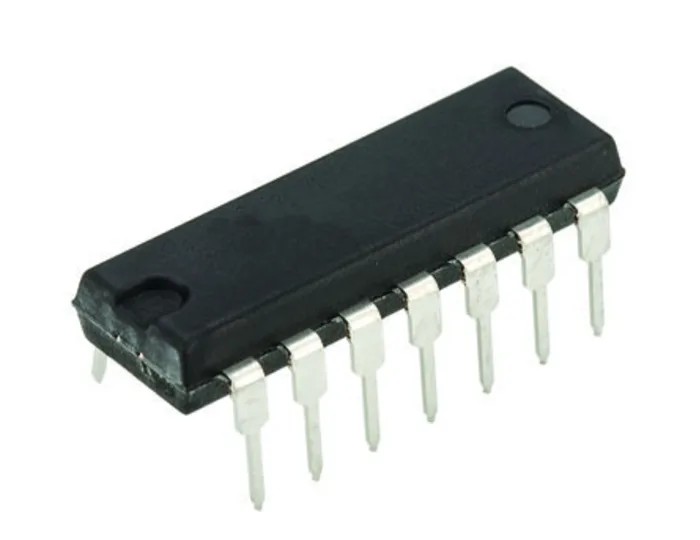

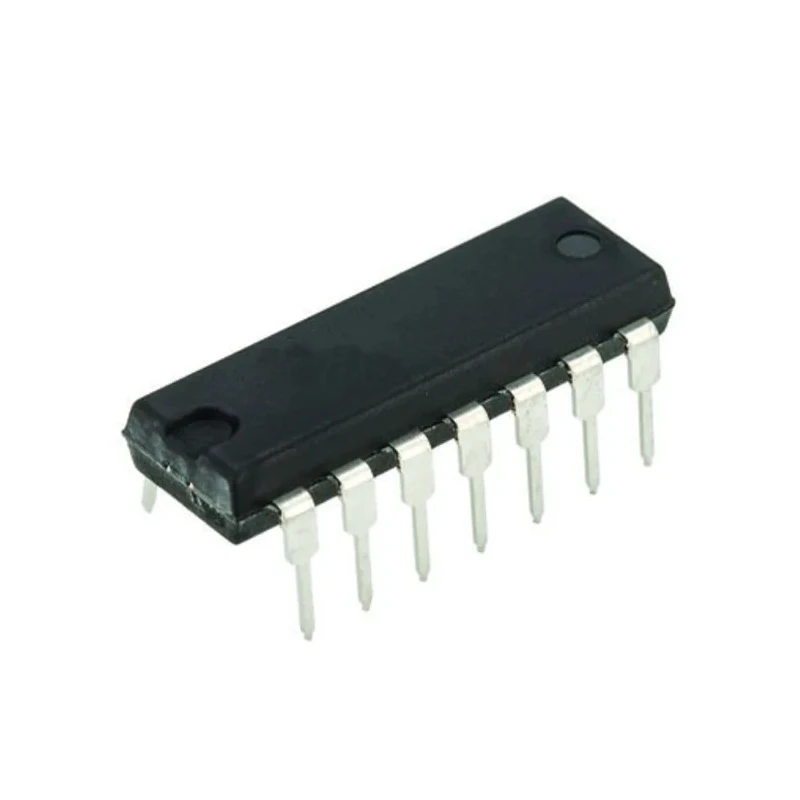

Texas Instruments CMOS Inverter 6 Elements, 14-Pin PDIP, TTL Input, 4.5-5.5V Operating Voltage SN74HCT04N
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | SN74HCT04N |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Compatibility | Input TTL, Output CMOS |
| Series | SN74HCT04 |
| Input Type | TTL |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 14 |
| Number of Elements per Chip | 6 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | HCT |
| Logic Function | Inverter |
| Minimum Supply Voltage | 4.5V |
| Maximum High Level Output Current | -4mA |
| Maximum Propagation Delay Time @ CL | 25ns |
| Maximum Low Level Output Current | 4mA |
Key Features
- Provides six independent inverter gates in a single package.
- TTL compatible input with CMOS output for versatile interfacing.
- Maximum propagation delay time of 25 nanoseconds ensures fast switching.
- Operates within a temperature range from -40°C to 85°C for industrial applications.
- Features a through-hole mount type with a standard PDIP 14-pin package.
- Maximum high level output current of -4mA and low level output current of 4mA.
- Manufactured using silicon gate CMOS technology for low power consumption.
- Suitable for a variety of electronic applications requiring logic inversion.
Product Description
Texas Instruments SN74HCT04N is a high-speed CMOS inverter integrated circuit package containing six independent inverter elements. Housed in a 14-Pin PDIP through-hole package, this IC is designed to provide efficient TTL compatible inputs and CMOS compatible outputs operating within a voltage range of 4.5V to 5.5V.
The inverter gates feature a maximum propagation delay time of 25 nanoseconds, enabling rapid switching suitable for demanding electronic applications including industrial and consumer electronics. The device operates effectively over a wide temperature range from -40°C to 85°C, ensuring reliability across varied environmental conditions.
The IC supports a maximum high-level output current of -4mA and low-level output current of 4mA, which is adequate for most interfacing requirements. Its standard 14-pin PDIP form factor and through-hole mount type make it ideal for prototyping and circuit board designs.
Manufactured using silicon gate CMOS technology, the SN74HCT04N achieves high-speed performance comparable to LSTTL devices while maintaining the low power consumption and noise immunity typical of CMOS technology. This makes it well suited for integration in digital logic circuits and buffer applications.
Six inverter gates per chip for multiple logical inverting functions. TTL input compatibility ensures seamless digital logic interfacing. Low power consumption due to CMOS silicon gate technology. Through-hole mount PDIP package supports easy assembly and testing.
Industrial temperature range allowing robust operation. Compact physical dimensions optimize PCB layout. This IC is applicable in a range of industrial and laboratory electronics as well as in embedded and control systems requiring reliable signal inversion.
For more components and semiconductor devices, explore the Semiconductor category at EnvMart to find matched solutions for your electronic design projects.
Explore more products in our Inverters ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a voltage range of 4.5V to 5.5V.
The maximum propagation delay time is 25 nanoseconds, allowing for fast switching capabilities.
It operates effectively within a temperature range from -40°C to 85°C.
This integrated circuit includes six independent inverter gates in a single package.
It features a through-hole mount type with a standard PDIP 14-pin package.
The maximum high-level output current is -4mA, and the low-level output current is 4mA.
It supports TTL compatible inputs, making it versatile for various digital logic interfacing.
The dimensions are 19.3mm in length, 6.35mm in width, and 4.57mm in height.
It performs the logic function of an inverter, providing signal inversion capabilities.
The SN74HCT04N is manufactured in Malaysia.
It is suitable for a variety of electronic applications requiring logic inversion, including industrial and consumer electronics.
It is manufactured using silicon gate CMOS technology, which contributes to its low power consumption.
