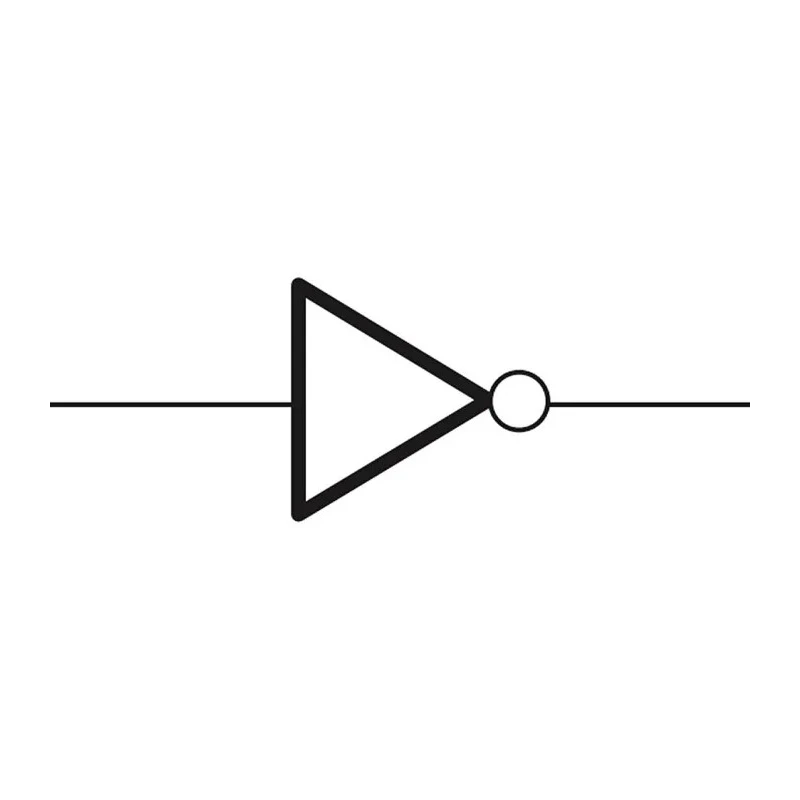

DiodesZetex Inverter Logic IC 74AHC1G04SE-7, 5-Pin SOT-353, Schmitt Trigger Input, HC Family

DiodesZetex 74AHC1G04SE-7 is an inverter logic IC featuring a 5-pin SOT-353 surface mount package. It belongs to the advanced 74AHC high-speed CMOS logic family, designed for low power consumption and versatile compatibility in electronic circuits.

Operating reliably across a supply voltage range from 2.0V to 5.5V, this device integrates a single inverter element with push-pull output and is equipped with a Schmitt Trigger input type (though marked No with this specific model), optimized for stable switching and signal integrity. It delivers a maximum propagation delay time of 14.5ns at the capacitive load, maintaining fast response suitable for timing-critical logic applications.

The device supports output currents up to ±8mA at a VCC of 4.5V, providing flexible interfacing capabilities with various digital logic levels. Its compact dimensions (2.2mm length, 1.35mm width, and 1mm height) and surface mount package make it appropriate for dense PCB designs in industrial automation, instrumentation, consumer electronics, and other electronic manufacturing environments.

With an operating temperature range from -40°C to 125°C and robust ESD protection exceeding 200V machine model and 2000V human body model, this inverter IC ensures durability and reliability in demanding electrical and industrial settings.

This model does not meet automotive standard certification, making it primarily suitable for commercial and industrial electronic equipment. It is a member of the 74AHC1G series, which includes various digital logic functions such as buffers, counters, shift registers, decoders, demultiplexers, logic gates, and hex inverters.

The device’s small form factor allows for easy integration into compact electronic modules. Its logic high-speed family HC implementation balances speed and power consumption. Ideal for applications requiring precise logic inversion with push-pull outputs.

Compatible with a wide variety of general-purpose logic designs and mixed voltage environments. Offers industrial-grade performance with ESD protection and a wide temperature range. Set contains 1 Pc DiodesZetex 74AHC1G04SE-7 inverter IC in SOT-353 package.
