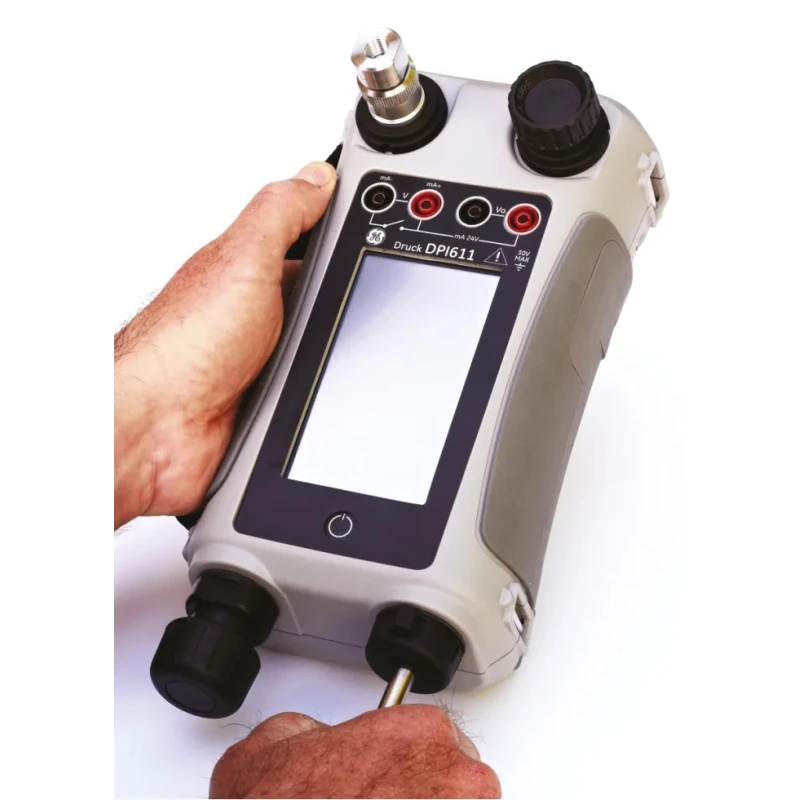

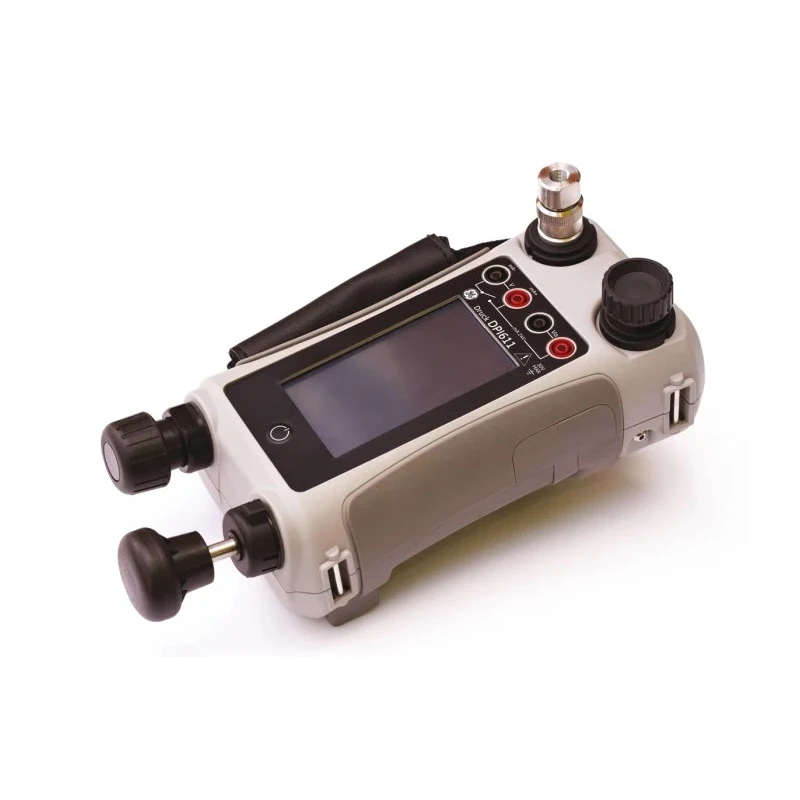

Druck Portable Pressure Calibrator -1 bar to 2 bar, Alkaline Battery, LCD Display DPI611-07G

The Druck DPI611-07G portable pressure calibrator is designed for precise and reliable pressure measurement ranging from -1 bar to 2 bar, ideal for industrial and laboratory applications. This device features an advanced LCD display and a compact form factor measuring 270mm in length, 130mm width, and 120mm height, weighing just 2 kg for enhanced portability. It operates on alkaline batteries providing a battery life of approximately 26 hours, supporting extended use in the field.

This calibrator quickly generates pressure with a resolution of 0.01 bar and boasts an accuracy of ±0.0185%, offering improved measurement precision over previous models. Its simplified touchscreen interface facilitates quick task selection and streamlined operation. Moreover, it includes multi-channel data logging capabilities with an 8 GB user memory to efficiently record calibration data.

The DPI611-07G automates calibration procedures and performs error analysis, accelerating workflow and enhancing testing accuracy. It supports leak testing and is suitable for calibrating pressure instruments, simulating transmitter outputs, and testing safety systems across various industrial sectors including manufacturing, HVAC, water treatment, and more.

This device is not intrinsically safe and does not support current loop measurement but meets essential operational standards within a temperature range of -10°C to 50°C. It is manufactured in China with a robust build suitable for demanding environments.

Generates pressure quickly with measurement resolution of 0.01 bar. Equipped with LCD display for clear readings. Compact and lightweight design at 2 kg with dimensions 270mm length, 130mm width, and 120mm height. Operates on alkaline batteries providing up to 26 hours battery life.

Operates reliably within temperature range of -10°C to 50°C. Features multi-channel data logging with 8 GB user memory. Provides automated calibration procedures and error analysis for improved efficiency. Suitable for field calibration of pressure instruments and leak detection.

Not intrinsically safe and does not support current loop measurement. Manufactured in China with robust build quality.
