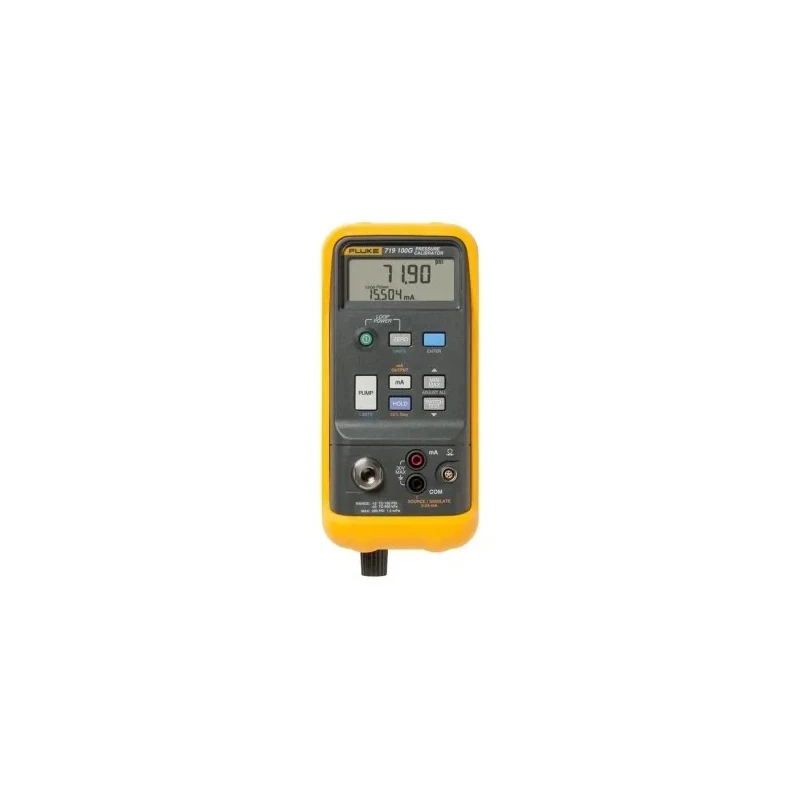

Fluke Handheld Pressure Calibrator 719 -850 mbar to 8 bar, ±0.025% Accuracy, LCD Display, Alkaline FLUKE-719 100G/APAC

The Fluke FLUKE-719 100G/APAC Pressure Calibrator is a precision handheld instrument ideal for industrial, laboratory, HVAC, and process maintenance applications requiring accurate pressure measurement and current loop verification. It supports measurement and sourcing from -850 mbar to 8 bar, providing ±0.025% accuracy with a fine 1 mbar resolution on its easy-to-read LCD display.

This unit features an integrated electric pump enabling easy, one-handed pressure generation, designed to expedite field tasks such as commissioning, routine maintenance, and troubleshooting of pressure switches, transmitters, and I/P converters in control loops. It also supplies a 24V loop power source to facilitate transmitter testing.

The calibrator operates on alkaline batteries providing approximately 12 hours of continuous use under nominal conditions. Its robust design permits operation over a temperature range extending from -10°C to 55°C, ensuring reliable usage in diverse environmental conditions. Safety is enhanced with programmable pump limit settings to prevent accidental over-pressurisation.

The pump has an expected service life of around 5,000 cycles before rebuild and approximates a total life of 20,000 calibration cycles. Precision controls, including a vernier adjustment and variable release bleed valve, allow technicians to perform smooth pressure adjustments and precise calibrations safely and efficiently.

This instrument is compliant with EN50082-1:1992 and EN55022:1994 Class B standards but does not hold hazardous area certification. It is manufactured in China and supplied with NIST traceable certification, TL75 test leads, AC72 alligator clip set, push-fit connectors (1/8" NPT male connectors), and translucent test hose for comprehensive field deployment.

Offers ±0.025% measurement accuracy for high precision calibration. Features a 1 mbar resolution for fine pressure adjustments. Built-in electric pump enables single-handed pressure generation. Operates on alkaline batteries with approximately 12 hours battery life.

Includes a backlit LCD display for clear readings. 24V loop supply powers transmitters during testing. Suitable for calibrating pressure transmitters and testing 4 - 20 mA control loops. Lightweight and compact with dimensions 210mm length, 87mm width, and 60mm height.

Operates within temperature range -10°C to 55°C. Certified to standards EN50082-1:1992 and EN55022:1994 Class B.

Ideal for industrial automation, manufacturing plants, laboratory calibration, HVAC systems, water treatment facilities, and general maintenance of process controls, the Fluke FLUKE-719 100G/APAC ensures dependable pressure and loop measurement with enhanced serviceability. Explore additional Fluke calibration instruments and related Pressure Calibrator accessories on EnvMart.
