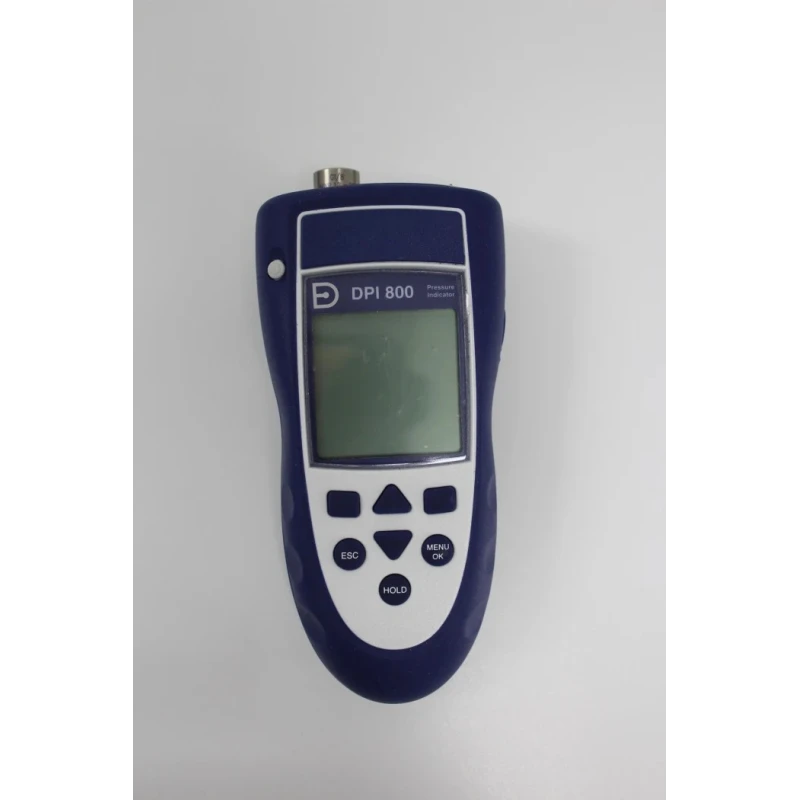

Druck 0 bar to 2 bar Pressure Calibrator I800S-1-465-7694 with LCD Backlight, ±0.01% Accuracy, Current Loop Measurement

Druck I800S-1-465-7694 is a precision pressure calibrator designed for pressure measurements ranging from 0 bar to 2 bar with an accuracy of ±0.01%. This calibrator features an LCD backlight display enabling clear readouts in various lighting conditions and supports current loop measurement for comprehensive process control.

The unit's robust and weatherproof housing ensures durability and reliability in demanding industrial and field environments. Its compact size and lightweight form factor (180mm long, 85mm wide, 50mm high, weighing 500g) provide excellent portability and ease of use, including convenient one-handed operation.

Equipped with leak testing capabilities, the calibrator facilitates system verification and maintenance tasks accurately. It also supports programmable step and ramp outputs, offering flexibility in calibration workflows tailored to specific industrial applications.

Data logging is efficiently handled with a 1000-point memory supported by an RS232 interface for seamless data transfer and analysis. The device reliably operates within a temperature range of -10°C to 50°C, making it suitable for varied industrial and laboratory conditions.

Additional operational features include hold, scaling, max/min/avg, filter, alarm, and tare functions to enhance troubleshooting efficiency during pressure testing and transmitter calibration procedures. This calibrator is ideal for professionals engaged in industrial maintenance, transmitter calibration, loop setup, diagnostics, and switch verification to ensure system integrity and optimal performance.

The calibrator supports current loop measurement for enhanced process control. It features a robust, weatherproof construction suitable for industrial environments. Includes leak testing functionality for system integrity verification.

Compact design with dimensions 180mm length, 85mm width, and 50mm height for portability. Data logging capability with 1000 point memory and RS232 interface for analysis. Operates reliably between -10°C to 50°C for varied working conditions.

Offers programmable step and ramp output to customize calibration procedures. Provides hold, scaling, max/min/avg, filter, alarm, and tare functions for troubleshooting. Designed for pressure testing, transmitter calibration, and loop diagnostics in industrial use.

For those needing top-quality pressure calibration solutions, consider exploring more Druck products and Pressure Calibrators available on EnvMart.
