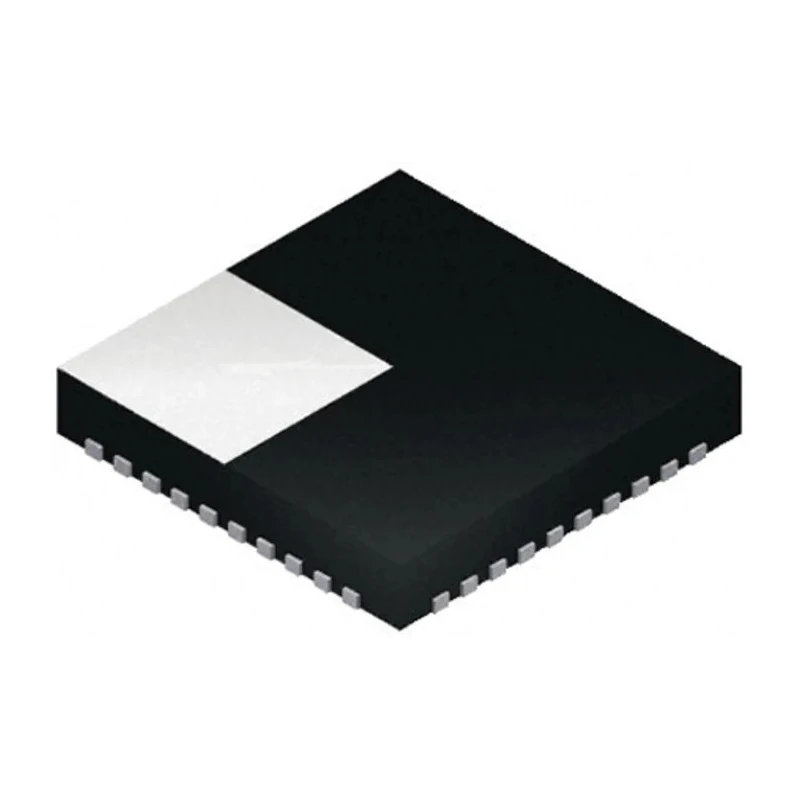

Texas Instruments Buffer IC 4 LVDS Drivers and Receivers 40-Pin WQFN Package DS25BR440TSQ/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 800μm |
| Length | 6mm |
| Model | DS25BR440TSQ/NOPB |
| Mount Type | Surface |
| Output type | LVDS |
| Series | DS25BR440 |
| Input Type | LVDS |
| Maximum Operating Temperature | 85°C |
| Package Type | WQFN |
| Sub Type | Buffer |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 40 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 4 |
| Number of Receivers | 4 |
| Transmission Data Rate | 3.13Gbps |
| Differential Input High Threshold Voltage | 100mV |
| Differential Input Low Threshold Voltage | -100mV |
Key Features
- Supports 4 LVDS drivers and 4 LVDS receivers in a single chip.
- Transmission data rate of up to 3.13Gbps for high-speed data communication.
- Compact 40-Pin WQFN surface mount package suitable for space-constrained designs.
- Operating voltage range from 3V to 3.6V with low differential input thresholds.
- Wide operating temperature range from -40°C to 85°C suitable for industrial applications.
- Features Electrostatic Discharge (ESD) protection for device reliability.
- Complies with RoHS standards ensuring environmental safety.
- Ideal for LVDS-based communication protocols like Firewire, SATA, and SCSI.
Product Description
Texas Instruments DS25BR440TSQ/NOPB is a high-performance Buffer IC designed for differential low-voltage signaling (LVDS) applications. It features 4 LVDS drivers and 4 LVDS receivers integrated into a 40-Pin WQFN surface mount package, enabling efficient and compact design layouts for high-speed data transmission.
This Buffer IC supports a data transmission rate of up to 3.13Gbps, suitable for demanding industrial, computing, and communication systems such as Firewire, SATA, and SCSI interfaces. It operates over a voltage range of 3V to 3.6V, with differential input threshold voltages of +100mV and -100mV, ensuring signal integrity and noise immunity.
The device is rated for operation across a wide temperature range (-40°C to 85°C), making it reliable for harsh industrial environments. ESD protection is included to enhance durability during handling and assembly processes. The DS25BR440 series complies with RoHS directives, supporting environmentally responsible manufacturing.
Physically, the chip comes in a space-saving 40-Pin WQFN package with a height of 800μm and a length of 6mm, suitable for modern compact electronics designs requiring LVDS buffering and signal conditioning.
Applications include industrial communications, high-speed data transfer interfaces, and signal conditioning in semiconductor systems. It provides a dual-use role as both driver and receiver within LVDS interface circuits, simplifying system design while ensuring robust performance.
Supports 4 LVDS drivers and 4 LVDS receivers in a single chip. Transmission data rate of up to 3.13Gbps for high-speed data communication. Compact 40-Pin WQFN surface mount package suitable for space-constrained designs.
Operating voltage range from 3V to 3.6V with low differential input thresholds. Wide operating temperature range from -40°C to 85°C suitable for industrial applications. Features Electrostatic Discharge (ESD) protection for device reliability.
Complies with RoHS standards ensuring environmental safety. Ideal for LVDS-based communication protocols like Firewire, SATA, and SCSI. Series DS25BR440 with 800μm height and 6mm length dimensions. Explore more electronic components and semiconductor interface ICs at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data transmission rate of this buffer IC is 3.13Gbps, suitable for high-speed data communication applications.
This model operates over a voltage range of 3V to 3.6V, ensuring compatibility with various LVDS applications.
It has a wide operating temperature range from -40°C to 85°C, making it suitable for industrial applications.
This buffer IC contains 4 LVDS drivers and 4 LVDS receivers integrated into a single chip.
The DS25BR440TSQ/NOPB comes in a compact 40-Pin WQFN surface mount package, ideal for space-constrained designs.
The differential input high threshold voltage is +100mV and the low threshold voltage is -100mV, ensuring signal integrity.
Yes, it features Electrostatic Discharge (ESD) protection to enhance device reliability during handling and assembly.
This buffer IC complies with RoHS standards, ensuring environmental safety in its manufacturing process.
The package height is 800μm and the length is 6mm, making it suitable for modern compact electronics designs.
It is ideal for LVDS-based communication protocols such as Firewire, SATA, and SCSI, as well as industrial communications.
The input and output type for this model is LVDS, facilitating differential low-voltage signaling applications.
The chip contains a total of 8 elements, comprising 4 drivers and 4 receivers.
