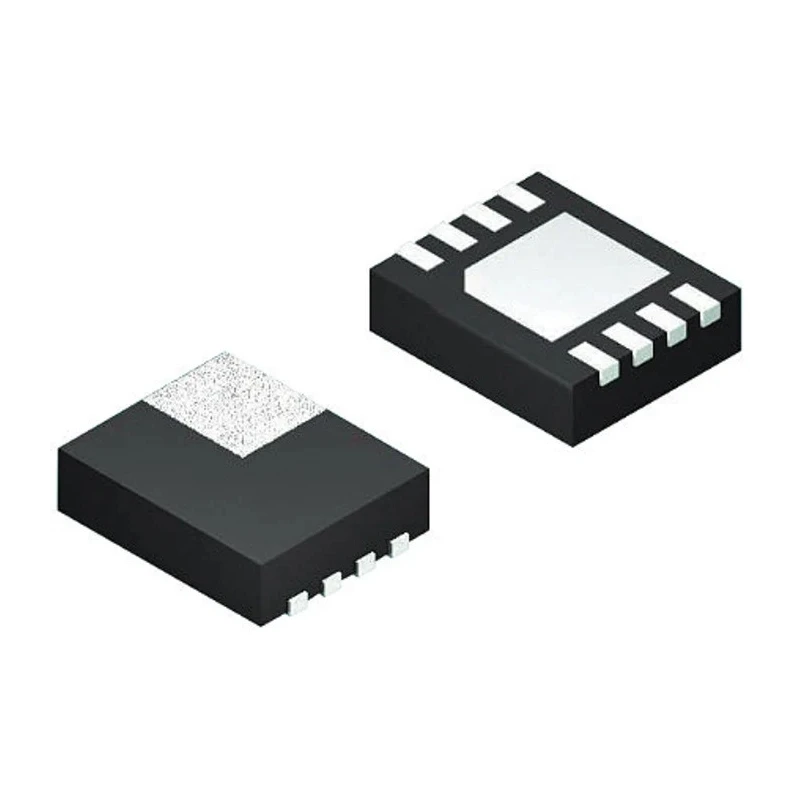

Texas Instruments Buffer IC 1 LVDS, LVDS Output, 3-3.6 V Supply, 3.13 Gbps Transmission Data Rate, 8-Pin DS25BR120TSD/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 800μm |
| Length | 3mm |
| Model | DS25BR120TSD/NOPB |
| Mount Type | Surface |
| Output type | LVDS |
| Series | DS25BR120 |
| Input Type | LVDS |
| Maximum Operating Temperature | 85°C |
| Package Type | WSON |
| Sub Type | Buffer |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Transmission Data Rate | 3.13Gbps |
| Differential Input High Threshold Voltage | 100mV |
| Differential Input Low Threshold Voltage | -100mV |
Key Features
- Operates with a supply voltage range of 3 V to 3.6 V.
- Supports transmission data rate up to 3.13 Gbps for reliable signal conditioning.
- Features 1 LVDS driver and 1 LVDS receiver for dual-use capability.
- Equipped with ESD protection to ensure device reliability.
- Operates reliably from -40°C up to 85°C ambient temperature range.
- Compact 3 mm length and 800 μm height footprint with surface mount WSON package.
- Differential input thresholds are ±100 mV for precise signal detection.
- Designed to meet RoHS standards for environmental compliance.
Product Description
Texas Instruments DS25BR120TSD/NOPB is a dual-use Buffer IC designed for low voltage differential signaling (LVDS) applications, providing both one driver and one receiver element for effective signal conditioning and repetition.
This device operates with a minimum supply voltage of 3 V and a maximum of 3.6 V, supporting high-speed data transmission rates up to 3.13 Gbps, making it ideal for advanced interfaces such as Firewire, SATA, and SCSI systems.
Housed in a compact 8-pin WSON surface mount package measuring 3 mm in length and 800 μm in height, it offers a small footprint suitable for high-density PCB layouts.
The buffer IC complies with RoHS environmental standards and features robust electrostatic discharge (ESD) protection, enhancing device reliability in demanding industrial and commercial environments.
Its differential input high and low threshold voltages are set at +100 mV and -100 mV respectively, enabling precise recognition of low voltage differential signals within the specified operating temperature range from -40°C to 85°C.
The device's dual LVDS input/output configuration is particularly useful in signal conditioning applications requiring high-speed, low noise digital data transmission over twisted-pair cables.
Operates at supply voltages from 3 V to 3.6 V with LVDS input/output. Supports transmission speeds up to 3.13 Gbps, suitable for high-speed digital interfaces. Compact 8-pin WSON surface mount package with reduced height aids integration in space-constrained designs.
Wide operating temperature range from -40°C to 85°C for industrial reliability. Incorporates ESD protection enhancing robustness. Compliance with RoHS directives ensures environmental safety. Designed for dual LVDS driver and receiver roles, supporting flexible board layouts.
Suitable for data communication in industrial, computing, and storage devices.
For engineers and designers working on signal conditioning and data communications, the DS25BR120TSD/NOPB Buffer IC offers high performance, reliability, and compliance with stringent industry standards.
Explore more semiconductor components from Texas Instruments and related LVDS interface ICs available in our Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum transmission data rate of the DS25BR120TSD/NOPB is 3.13 Gbps.
This model operates with a supply voltage range of 3 V to 3.6 V.
The differential input high threshold voltage is +100 mV and the low threshold voltage is -100 mV.
It operates reliably within an ambient temperature range of -40°C to 85°C.
The DS25BR120TSD/NOPB is housed in a compact 8-pin WSON surface mount package.
This device features one LVDS driver and one LVDS receiver.
Yes, it complies with RoHS standards for environmental safety.
This model has a height of 800 μm and a length of 3 mm.
It is suitable for data communication in industrial, computing, and storage devices.
The DS25BR120TSD/NOPB incorporates ESD protection to enhance device reliability.
The input and output type of this model is LVDS (Low Voltage Differential Signaling).
This model has a pin count of 8.
