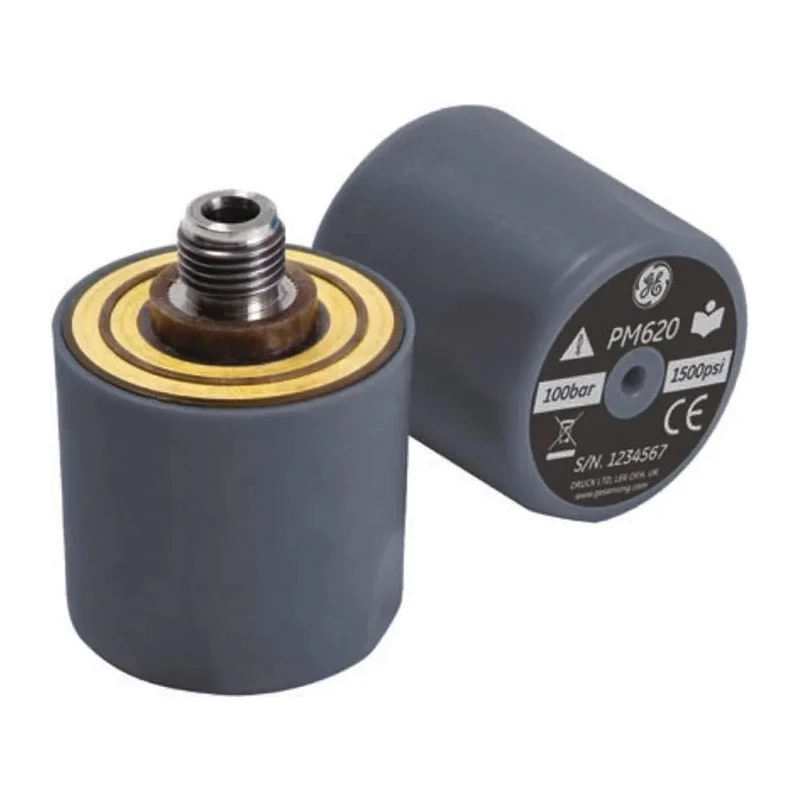

Druck Gauge Pressure Module for Use with DPI 620 Series, 35 bar Range, ATEX Certified PM620-14G
Specifications
| Country of Origin | India |
|---|---|
| Brand | Druck |
| Model | PM620-14G |
| Accessory Type | Gauge Pressure Module |
| For Use With | DPI 620 Series |
| Hazardous Area Certification | ATEX |
Key Features
- The pressure module uses TERPS resonant silicon sensor technology for enhanced accuracy and stability.
- Compatible with DPI 620, DPI612, and DPI620G series without requiring calibration upon installation.
- The module covers pressure ranges from 1.2 bar up to 100 bar for diverse applications.
- IP65 sealing provides protection against dust ingress and water jets, ensuring durability in industrial environments.
- Suitable for use in hazardous areas due to its ATEX certification.
- Provides total uncertainty of 0.0125% full scale and temperature compensation from -10°C to 50°C.
- Simple screw fit design allows easy interchangeability without set-up or re-calibration.
Product Description
Druck PM620-14G Gauge Pressure Module is an advanced accessory designed specifically for use with the DPI 620 Series of pressure calibrators. This module delivers a pressure measurement range of up to 35 bar and incorporates Druck's TERPS resonant silicon pressure sensor technology, which enhances measurement stability and accuracy, critical for precise industrial applications.
With a total uncertainty of only 0.0125% full scale, the PM620-14G module ensures precise pressure calibration suitable for laboratory, industrial, automation, electrical, and mechanical measurement tasks. Temperature compensation from -10°C to 50°C maintains reliable performance across diverse environmental conditions.
The module features an IP65 sealing rating, protecting it against dust ingress and water jets, allowing safe use in demanding industrial environments. Its ATEX hazardous area certification confirms suitability for operation in environments with potentially explosive atmospheres, ensuring safety and compliance.
This pressure module offers versatility with pressure range options from 1.2 bar to 100 bar depending on requirements. Its simple screw fit installation design makes it fully interchangeable and compatible not only with the DPI 620 Series but also with DPI612 and DPI620G/DPI620G-IS series pressure calibrators, eliminating the need for setup or additional calibration upon installation.
The module employs TERPS resonant silicon sensor technology for improved stability and accuracy. It provides an IP65 rating for enhanced protection against dust and water. ATEX hazardous area certification permits safe usage in explosive atmospheres.
Compatible with multiple DPI pressure calibrator models without re-calibration. Temperature compensated for operating ranges between -10°C and 50°C. Pressure range customization from 1.2 bar up to 100 bar is available. Designed for pressure measurement and calibration in industrial electronics, automation, and mechanical systems.
This module is an essential addition for professionals requiring precise and reliable pressure measurement in a variety of industrial, laboratory, and hazardous area applications. Explore more Druck pressure calibration accessories on EnvMart for comprehensive solutions.
Explore more products in our Pressure Calibrator Accessories category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Druck PM620-14G Gauge Pressure Module has a pressure measurement range of up to 35 bar.
This module is compatible with the DPI 620 Series, DPI612, and DPI620G series pressure calibrators without requiring calibration upon installation.
It employs TERPS resonant silicon sensor technology, which enhances measurement stability and accuracy.
The total uncertainty of the Druck PM620-14G is 0.0125% full scale, ensuring precise pressure calibration.
The module is temperature compensated for operating ranges from -10°C to 50°C, making it suitable for diverse environmental conditions.
The Druck PM620-14G has an IP65 rating, providing protection against dust ingress and water jets.
Yes, it is ATEX certified, confirming its suitability for operation in potentially explosive atmospheres.
It features a simple screw fit design that allows for easy interchangeability without the need for setup or re-calibration.
The module covers pressure ranges from 1.2 bar up to 100 bar, depending on specific requirements.
The country of origin for this module is India.
It is suitable for laboratory, industrial, automation, electrical, and mechanical measurement tasks.
It is classified as a Gauge Pressure Module, designed specifically for pressure measurement and calibration.
