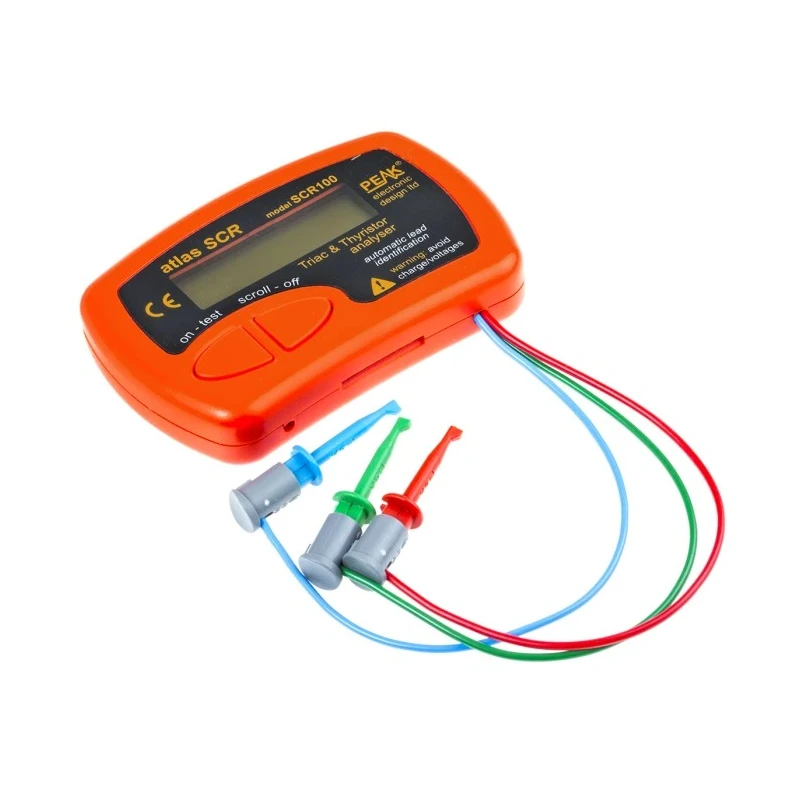

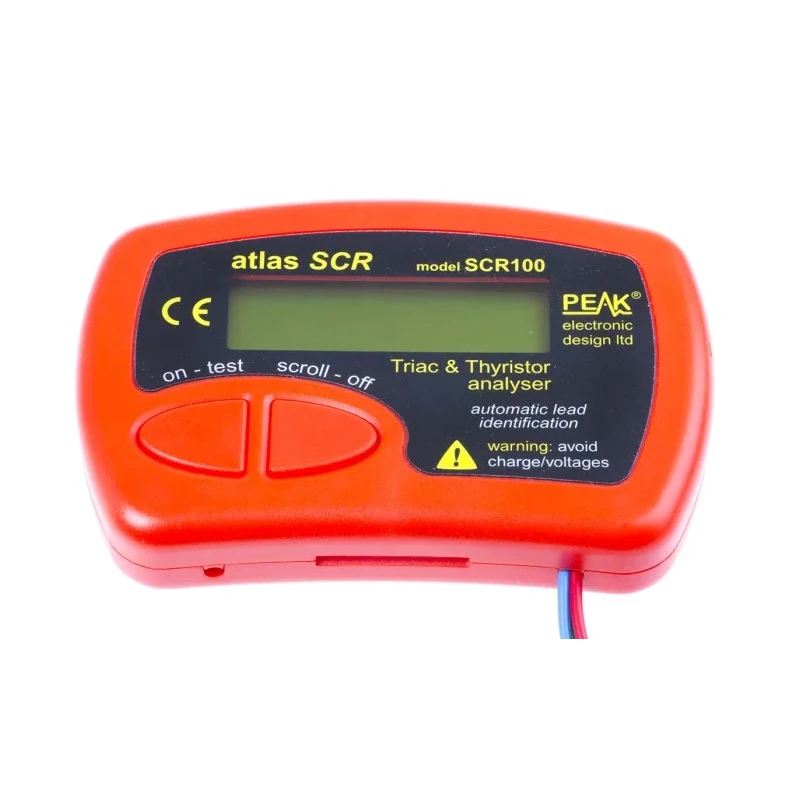

Peak Electronic Design SCR100 Component Tester SCR and Triac Tester LCD Display SCR100

Peak Electronic Design SCR100 Component Tester SCR and Triac Tester with LCD is designed for efficient identification and testing of thyristors and triacs. Its compact and robust design makes it ideal for laboratory, industrial, and electronics repair applications requiring reliable component analysis.

The tester features automatic pinout detection and device identification, simplifying circuit troubleshooting. Gate sensitivity measurement spans from 100 microamps to 90 milliamps, suitable for precise characterization of semiconductor components. Load current testing capability up to 100mA and shorted junction tests ensure comprehensive device evaluation.

An easy-to-read LCD display provides clear information on device type and pin configuration. Auto power on and off enhance battery life, with the unit powered by a reliable A23 battery lasting extended usage. Operates efficiently within a temperature range from 0 to 50 degrees Celsius.

This device complies with CE and RoHS standards, ensuring safety and environmental compatibility. The slim form factor (103 mm length, 70 mm width, 20 mm height) makes it portable and convenient for field and workshop use.

Identifies thyristor and triac types and displays pinouts automatically. Measures gate sensitivity from 100µA to 90mA accurately. Shorted junction detection and load current tests up to 100mA. Auto power on/off and compact, robust build for versatile use.

Operates with A23 battery and features an LCD display for easy reading.

This component tester is ideal for electronics manufacturing, maintenance, repair, educational, and laboratory uses. Explore EnvMart for more advanced Electronic Component Testers and measurement tools for precise diagnostics.
