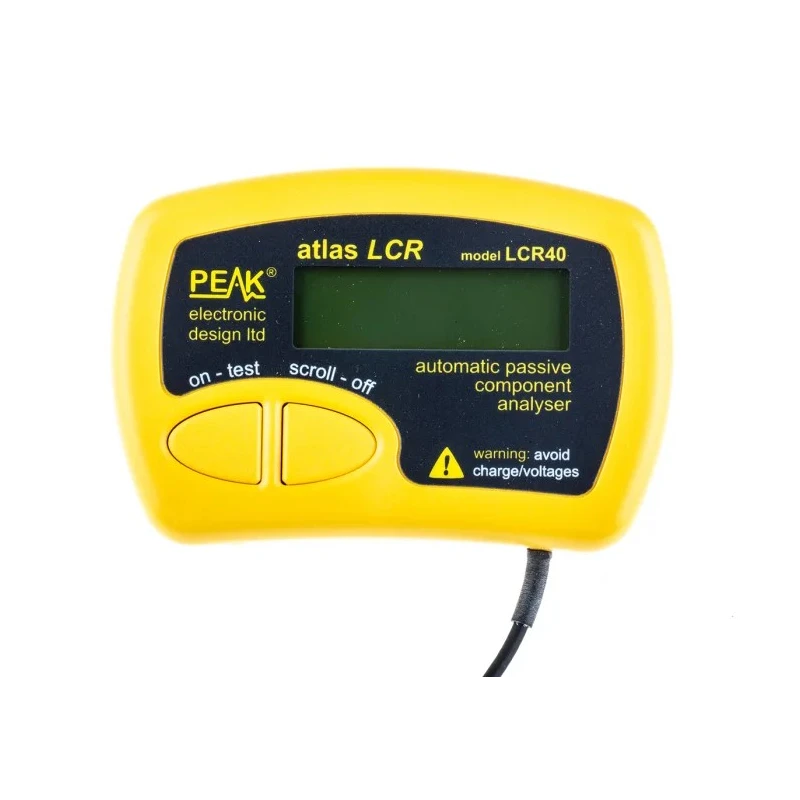

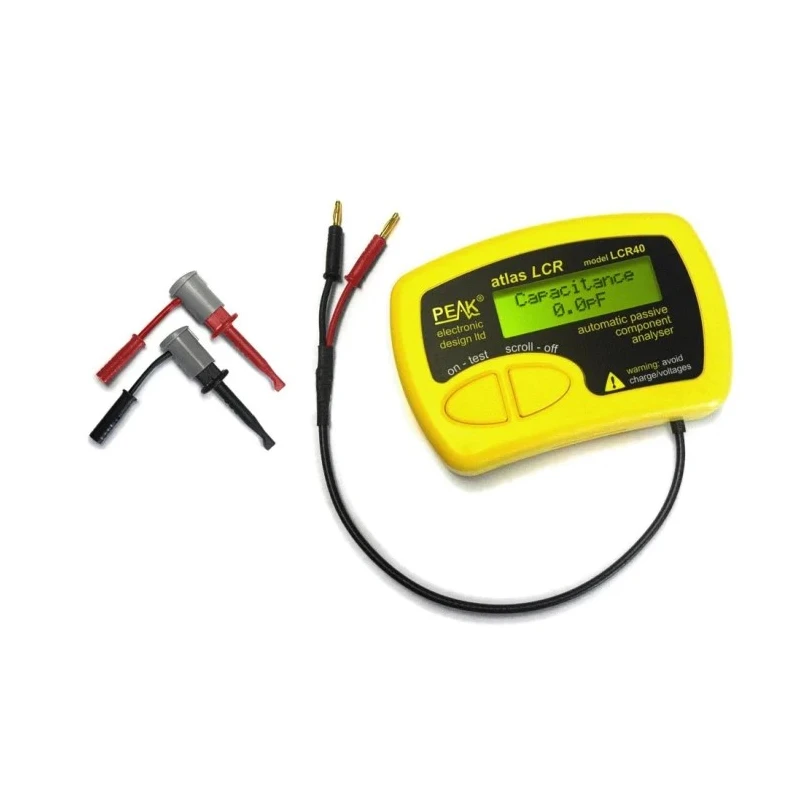

Peak Electronic Design Handheld LCR Meter 10mF Capacitance, 2mΩ Resistance, 10h Inductance LCR40

Peak Electronic Design LCR40 handheld LCR meter provides precise measurement of passive electronic components with maximum capacitance of 10 mF, resistance down to 2 mΩ, and inductance up to 10 h. This handheld device is designed for efficient identification and analysis of inductors, capacitors, and resistors, making it ideal for unmarked and surface mount components in laboratory, manufacturing, and field service environments.

The instrument automatically identifies the type of component under test and selects the optimal test frequency up to 200 kHz, ensuring high accuracy and reliability. Users benefit from delayed or instant analysis modes facilitating hands-free operation, complemented by automatic ranging, scaling with real units on an easy-to-read LCD, and non-volatile memory to store probe and lead compensations for precise measurements.

Powered by a MN21 battery, the LCR40 meter offers manual and auto power-off features to conserve energy during intermittent use. It features a compact construction weighing only 158 grams and dimensions of 103mm length, 72mm width, and 20mm height, making it convenient for portable electronic testing tasks within operating temperature limits from 10°C to 40°C. The meter meets none of the formal standards or approvals but is engineered for reliable performance in professional testing scenarios.

Automatic component identification enables efficient testing of inductors, capacitors, and resistors. Maximum test frequency of 200 kHz supports accurate measurement on a wide range of electronic components. Delayed or instant analysis modes facilitate hands-free operation during testing.

Non-volatile memory stores probe and test lead compensation ensuring measurement accuracy. Auto-ranging and scaling with real unit display simplifies interpretation of results. Compact and lightweight design enhances portability in laboratory and field use.

Operates within a temperature range of 10°C to 40°C for stable performance. Powered by MN21 battery with both auto and manual power-off for energy efficiency. Constructed in the United Kingdom for quality assurance.

This Peak Electronic Design LCR40 handheld meter is suitable for advanced electronic component testing applications in industrial, laboratory, manufacturing, and maintenance environments. For additional products in this category or from Peak Electronic Design, explore the EnvMart platform to source quality measuring instruments designed for precision and reliability.
