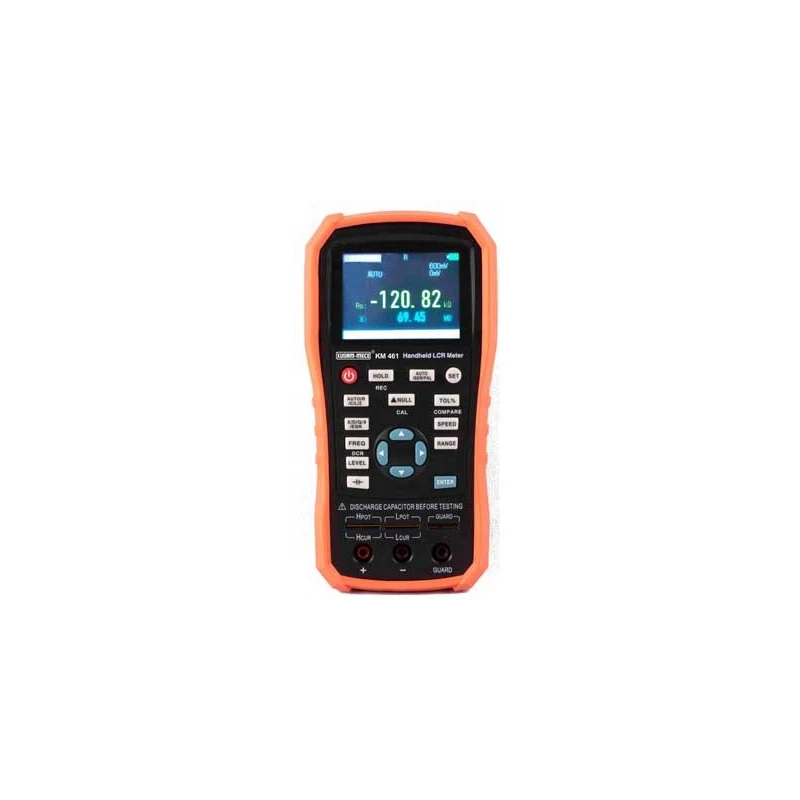

Kusam Meco Handheld Lcr Meter KM461
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Kusam Meco KM 461 HANDHELD LCR METER / Mini-USB Cable / Power Adapter / Short-Circuit Plate / Plug Made Of Red And Black Rubber / Lithium Battery With Large Capacity |
| Accuracy | 0.2%~6.0%±Digits |
| Digits Display | Main Parameter |
| Measurement Range | 4pF~20mF/400uH~1000H/0.4Ω~20MΩ |
| Display | 2.8inches TFT LCD |
| Brand | Kusam Meco |
| Storage Temperature | -10~60°C Less Than 80%RH |
| Function | Handheld LCR Meter |
| Model | KM461 |
| Temperature | 0~50°C Less Than 80%RH |
| Weight | Approx 500g |
| Basic accuracy | 0.2% |
| Resistance Accuracy | ±(0.3%~8.0%+Digits) |
| Phase Angle | 0.2°~5.2° |
| DCR Mode | Available |
| Capacitance Accuracy | ±(0.2%~6.0%+Digits) |
| Inductance Accuracy | ±(0.2%~1.4%+Digits) |
| Testing Frequency | 100Hz~100kHz Adjustable Step From 1Hz |
| Electric Level | 0~0.7 Adjustable |
| Electrolytic Capacitor Mode | Available |
| Bias Voltage | 0~500mV Adjustable Step From 1mV |
| Test Frequency Steps | 100Hz/1kHz/10kHz/40kHz/100kHz |
| Equivalent Mode | Series/Parallel Selectable |
| Max Display Count | 5digits |
| Loss Factor Accuracy | 0.002~0.0600 |
Key Features
- Measures inductance, capacitance, and resistance across wide ranges
- Adjustable frequencies from 100Hz to 100kHz with 1Hz resolution
- 0.2% high accuracy and open/short calibration support
- 2.8-inch TFT LCD shows main and auxiliary parameters
- USB connectivity and lithium battery for portable use
Product Description
The Kusam Meco KM461 Handheld LCR Meter is a precise and portable device for measuring inductors, capacitors, and resistors with outstanding accuracy. It offers a wide frequency range up to 100kHz with 0.2% basic accuracy and a 2.8-inch TFT color LCD display for clear visibility. Its calibration capability ensures consistent performance across applications. The Mini-USB interface allows quick data transfer and connectivity for analysis. Designed for laboratories, R&D, and production lines, the KM461 delivers quick measurements, intuitive operation, and ergonomic handling. Durable and compact, it is the ideal solution for professionals and educational institutions seeking precise component testing.
Available on EnvMart, these LCR Meters measure inductance, capacitance, and resistance with 0.2% accuracy. Kusam Meco Devices offer USB connectivity and fast component analysis for laboratories and R&D units.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Kusam Meco KM461 LCR Meter has a measurement range of 4pF to 20mF for capacitance, 400uH to 1000H for inductance, and 0.4Ω to 20MΩ for resistance.
The Kusam Meco KM461 LCR Meter has a basic accuracy of 0.2%, with specific accuracy for resistance at ±(0.3%~8.0%+Digits), capacitance at ±(0.2%~6.0%+Digits), and inductance at ±(0.2%~1.4%+Digits).
The Kusam Meco KM461 LCR Meter operates at adjustable frequencies from 100Hz to 100kHz, with steps as fine as 1Hz.
The Kusam Meco KM461 LCR Meter features a 2.8-inch TFT LCD display that shows both main and auxiliary parameters clearly.
The package contents of the Kusam Meco KM461 LCR Meter include the LCR meter itself, a Mini-USB cable, a power adapter, a short-circuit plate, a plug made of red and black rubber, and a lithium battery with large capacity.
The Kusam Meco KM461 LCR Meter weighs approximately 500g.
The operating temperature range for the Kusam Meco KM461 LCR Meter is 0 to 50°C with a relative humidity of less than 80% RH.
Yes, the Kusam Meco KM461 LCR Meter supports open/short calibration to ensure consistent performance across applications.
The Kusam Meco KM461 LCR Meter includes DCR mode and electrolytic capacitor mode, as well as equivalent mode which is selectable between series and parallel.
The storage temperature for the Kusam Meco KM461 LCR Meter is between -10 to 60°C with a relative humidity of less than 80% RH.
The Kusam Meco KM461 LCR Meter features USB connectivity for quick data transfer and connectivity for analysis.
The Kusam Meco KM461 LCR Meter has a maximum display count of 5 digits.
