Metravi 10A Digital Micro Ohms Meter PRO 7274 image-1

Free Delivery in India | Lowest Global Shipping Charges

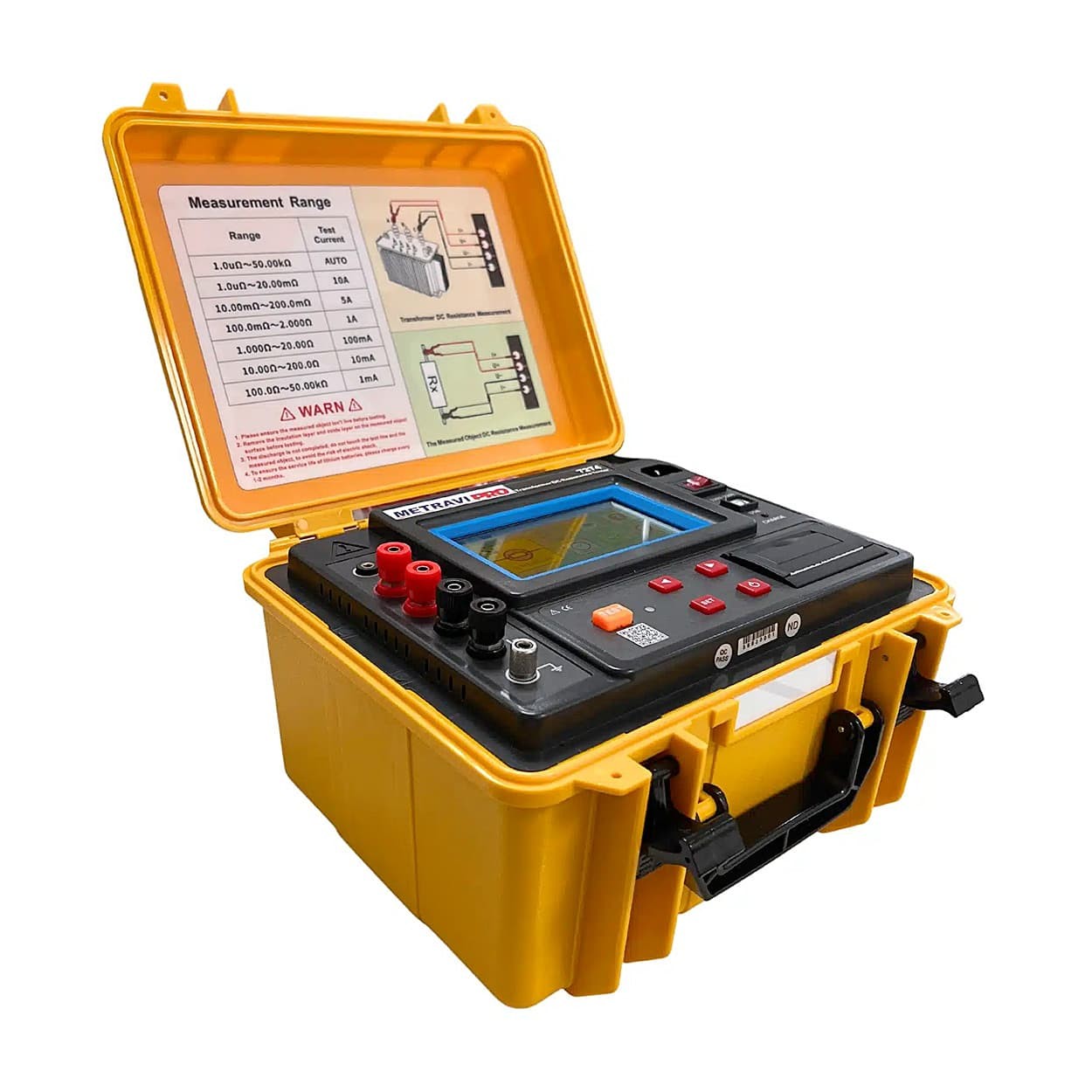

Metravi 10A Digital Micro Ohms Meter PRO 7274

Name: Metravi 10A Digital Micro Ohms Meter PRO 7274
Brand: Metravi
SKU: ADSNK
Price: 805.35 USD
Availability: InStock



SKU ADSNK Category Ohm Meters Brand Metravi

Specifications

Country of Origin	India
Package Contents	Metravi PRO 7274 10A Digital Mirco Ohms Meter
Resolution	0.1 µΩ
Temperature Accuracy	±0.5 °C
Display	5-inch true-colour LCD touchscreen(480×854 px)
Brand	Metravi
Power Supply	AC 220V mains/DC 22.2V 5200 mAh rechargeable battery
Dimensions	280×260×160 mm
Bluetooth	Yes(for app sync)
Temperature range	–55 °C to 125 °C
Model	7274
Printer	Built-in
Test Modes	Automatic/Manual
Weight	6.4 kg (with accessories)
Measurement Accuracy	±(0.2%+2dgt)
Safety Standards	IEC61010-1 CAT III 600 V Pollution Degree 2 JJG724-1991
Measurement time	1 s per sample(AD rate)
Data Storage	600 groups(non-volatile)
Operating environment	–10 °C to 40 °C Less than 80 % RH
Data hold	Automatic
ALARMS	Configurable alarm/overflow/charge/low-voltage indication
Test Method	Precision 4-wire method
Storage Environment	–10 °C to 60 °C Less than 70 % RH
USB interface	For software installation & data upload
Protection	IP65 dust & waterproof(case closed)
Output Voltage	24 V max
Wire Length Test	L≤99999 m
Current Test Gears	Auto/10A/5A/1A/100 mA/10 mA/1 mA
Converted Resistance	Auto temperature/material conversion
Discharge Function	Automatic

Key Features

The tester has two power supply modes: AC 220V and large-capacity lithium built-in rechargeable battery, to meet the user`s requirements in various testing environments.
Two measurement modes: Automatic measurement mode: the test current can be automatically selected according to the load. Manual measurement mode: There are 6 test current gears of 10A, 5A,1A, 100mA, 10mA, 1mA.
Max output voltage 24V, Max test current 10A, the test speed is fast and suitable to transformer measurement.
5 inch true colour LCD touchscreen.
Alarm function, which can set the Resistance alarm value.
Automatic shutdown after 15 minutes without any operation.
The instrument housing is a waterproof, protective case, which is anti-collision, anti-drop, waterproof, safe and durable.

Product Description

Metravi PRO 7274 is a 10A digital micro ohm meter designed for precise low-resistance measurement in electrical joints, busbars, circuit breakers, and switchgear. It provides stable readings in micro-ohms with high resolution and features a large backlit LCD for easy visibility. The instrument supports four-wire measurement, eliminating lead resistance error. With data logging, USB connectivity, and durable build, it's perfect for field and lab applications. A must-have for utilities and industrial service engineers requiring reliable low-resistance testing.

Available on EnvMart, these Ohm Meters are designed to measure electrical resistance with high accuracy—vital for circuit testing, troubleshooting, and ensuring component integrity. Metravi Ohm Meters are recognized for their precision, durability, and ease of use, making them a reliable choice for electricians, technicians, and quality control professionals.
