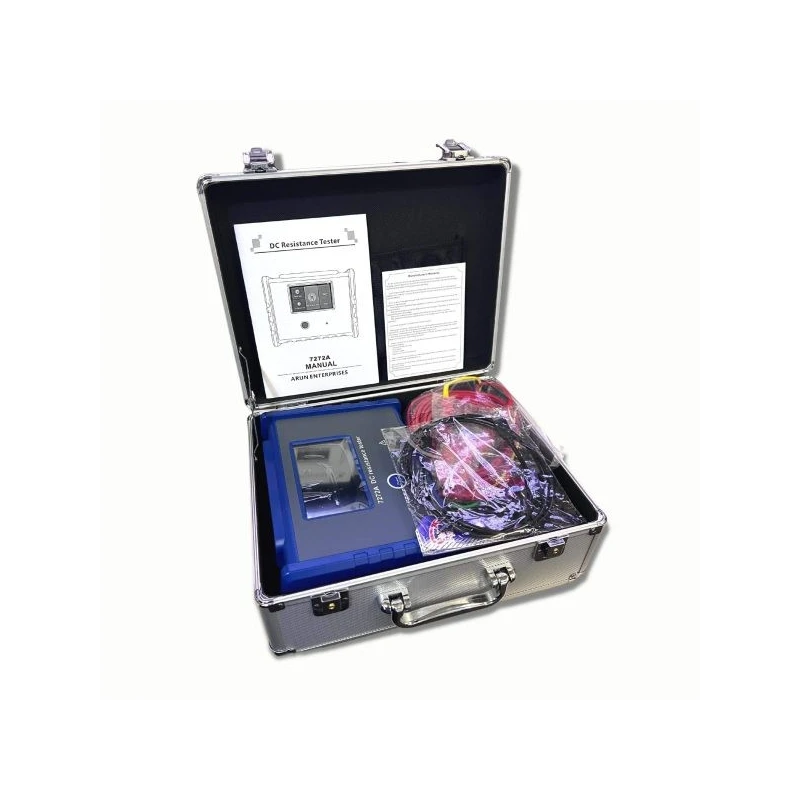

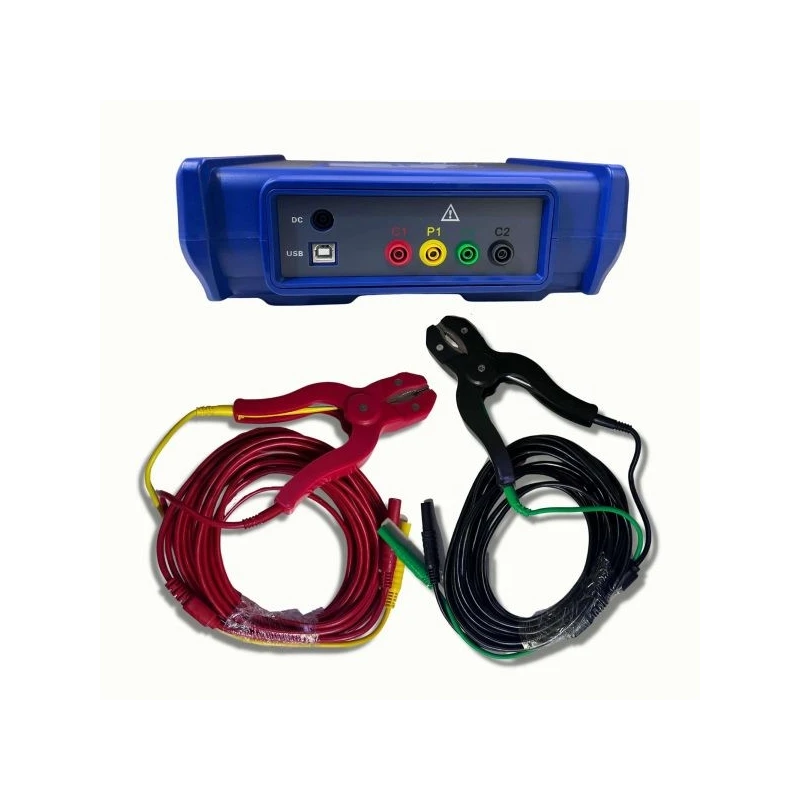

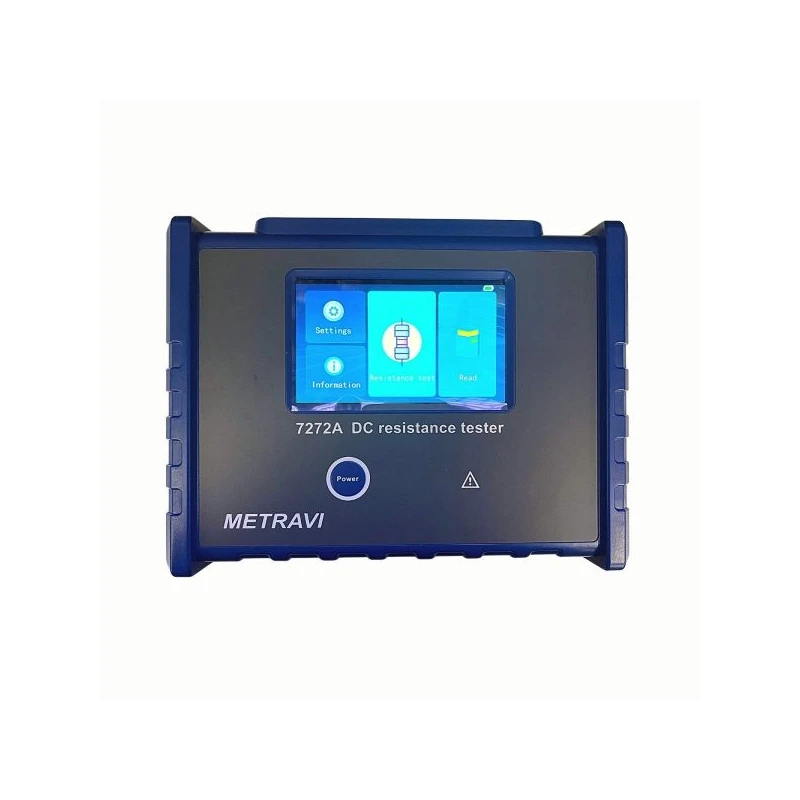

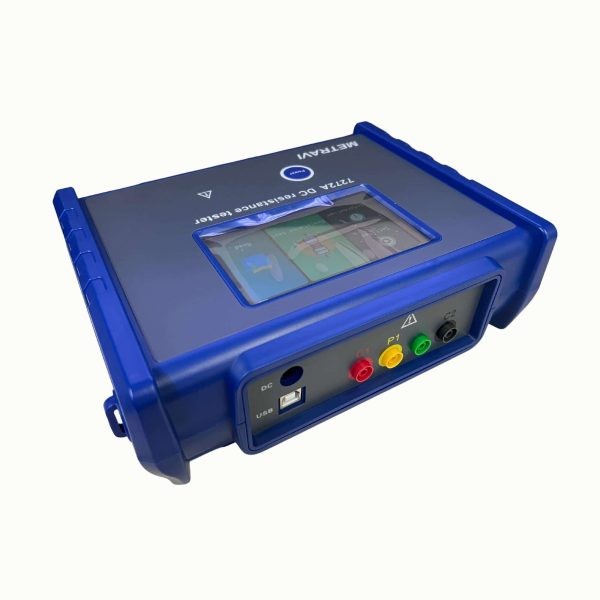

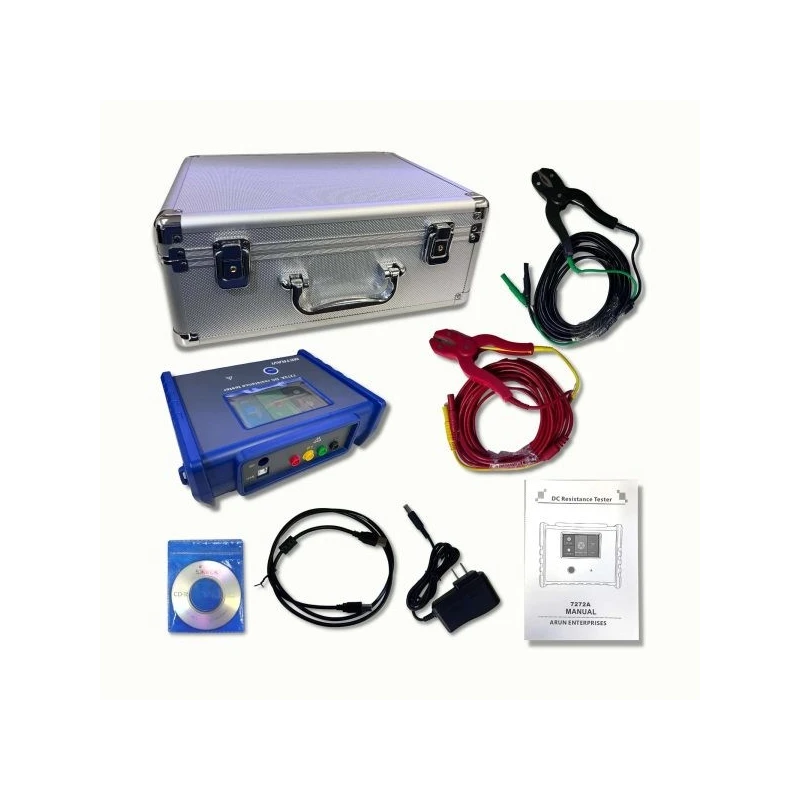

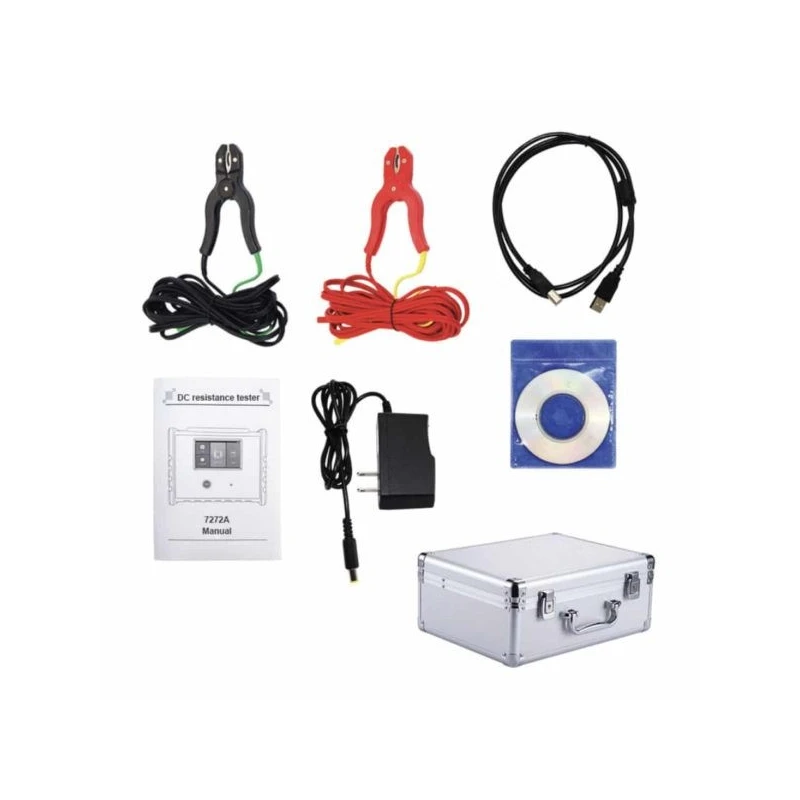

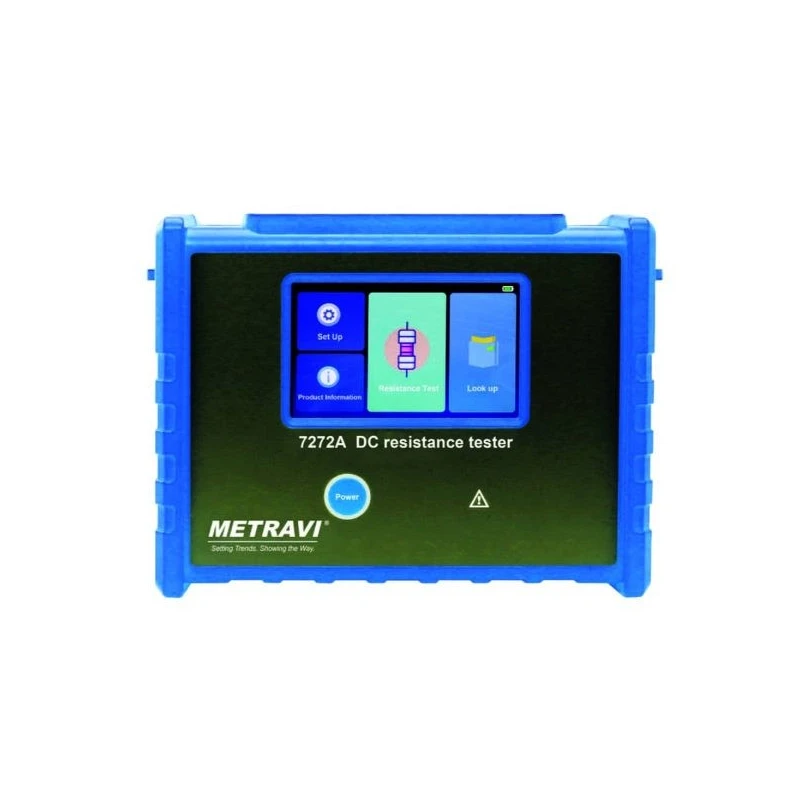

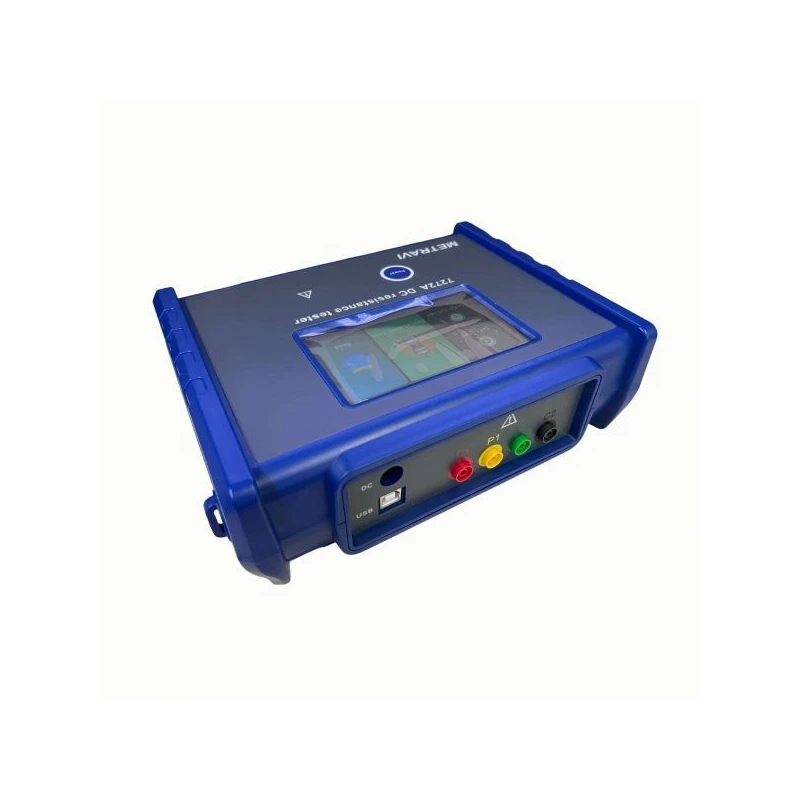

Metravi 10A Digital Micro Ohms Meter 7272A
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi 7272A 10A Digital Micro Ohms Meter |
| Resolution | 0.1 µΩ |
| Accuracy | ±0.2%FS±10dgt |
| Resistance Range | 10.0 µΩ–50.00 kΩ |
| Brand | Metravi |
| Model | 7272A |
| Overload Protection | Yes |
| Backlight | Available |
| Display Mode | Full-colour LCD |
| Data Storage | 500 groups |
| Detection method | 4-wire test |
| Measuring current | 10A/5A/1A/0.1A/10mA/1mA |
| USB interface | Available |
| Data Access | Stored data can be viewed |
| Test Lead Length | 5 m(1 red + 1 black) |
| Max Short-Circuit Current | 10A |
| Self-Discharge | Available |
| Overflow Indication | “OL” displayed on overrange |
| Touchscreen Operation | Supported |
Key Features
- The instrument has large LCD, allowing for high resolution reading and faster testing speed.
- Automatic judgement of product condition while conducting tests.
- Maximum Resolution.
- Power supply from re-chargeable battery or 220V AC for continuous operation.
- Low-power indication.
- Various testing wires are available, measurement by four-wire method.
- 60,000 Counts Extra Large Backlight LCD.
- USB two way communication (no need instaling drive).
- Wire length measurement.
- Data Hold.
- Data storage up to 1000 Data
- PASS / FAIL function randomly checking measured value.
Product Description
The Metravi 7272A Micro Ohm Meter is a high-precision resistance measurement instrument designed for accurate low-resistance testing in industrial, electrical, and maintenance applications. Utilizing the advanced 4-wire measurement method, it delivers highly reliable results with a fine resolution of 0.1µΩ and accuracy of ±0.2%, making it ideal for testing contact resistance, switchgear, busbars, cables, and welding joints. The device supports multiple test current ranges up to 10A, ensuring flexibility for various testing requirements. Equipped with a clear backlit color LCD display, it offers easy readability in all working conditions. Features such as data hold, overload indication, and self-discharge protection enhance safety and usability. With USB interface and memory storage of up to 500 groups, it allows efficient data recording and analysis. Powered by a rechargeable lithium battery and mains option, the Metravi 7272A ensures portability, performance, and dependable results for professional resistance measurement tasks. Available on EnvMart, these Ohm Meters are designed to measure electrical resistance with high accuracy—vital for circuit testing, troubleshooting, and ensuring component integrity. Metravi Ohm Meters are recognized for their precision, durability, and ease of use, making them a reliable choice for electricians, technicians, and quality control professionals.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum resolution of this model is 0.1 µΩ, allowing for precise low-resistance measurements.
The accuracy of the Metravi 7272A is ±0.2% FS ±10 digits, ensuring reliable measurement results.
The resistance range of the Metravi 7272A is from 10.0 µΩ to 50.00 kΩ, suitable for various testing applications.
It utilizes a 4-wire test method, which enhances measurement accuracy by eliminating the effects of lead resistance.
The Metravi 7272A supports multiple measuring currents: 10A, 5A, 1A, 0.1A, 10mA, and 1mA, providing flexibility for different testing needs.
It features a full-colour LCD display with backlight, ensuring easy readability in various lighting conditions.
The device can store up to 500 groups of data, allowing for efficient data management and analysis.
Yes, this model includes overload protection to safeguard the instrument during use.
It can be powered by a rechargeable lithium battery or via 220V AC for continuous operation.
The test leads are 5 meters long, consisting of one red and one black lead for testing.
Yes, it features a USB interface for two-way communication, allowing easy data transfer without the need for driver installation.
It includes self-discharge protection and overload indication, enhancing user safety during operation.
