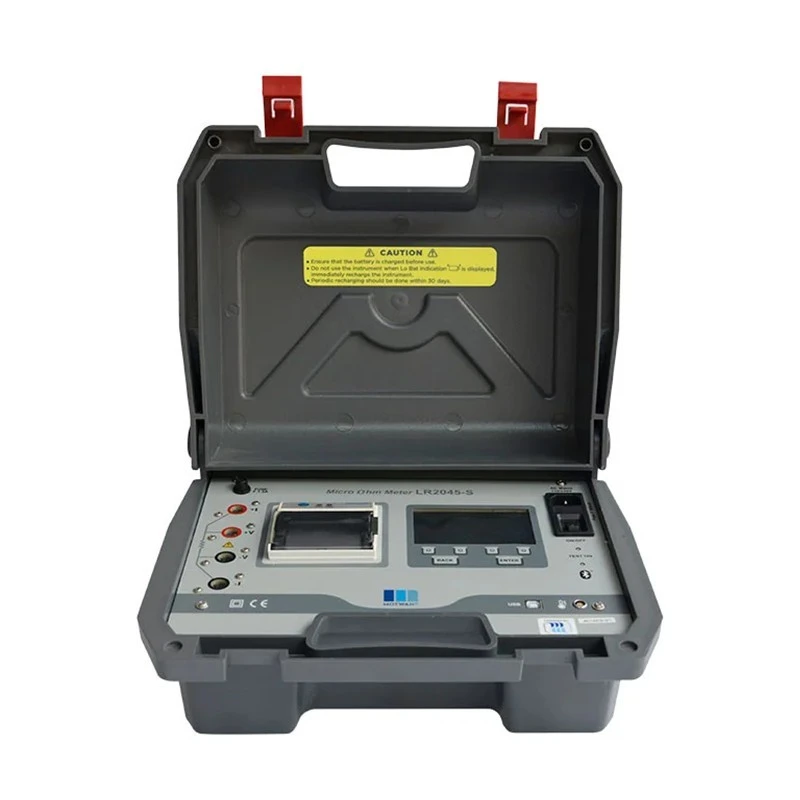

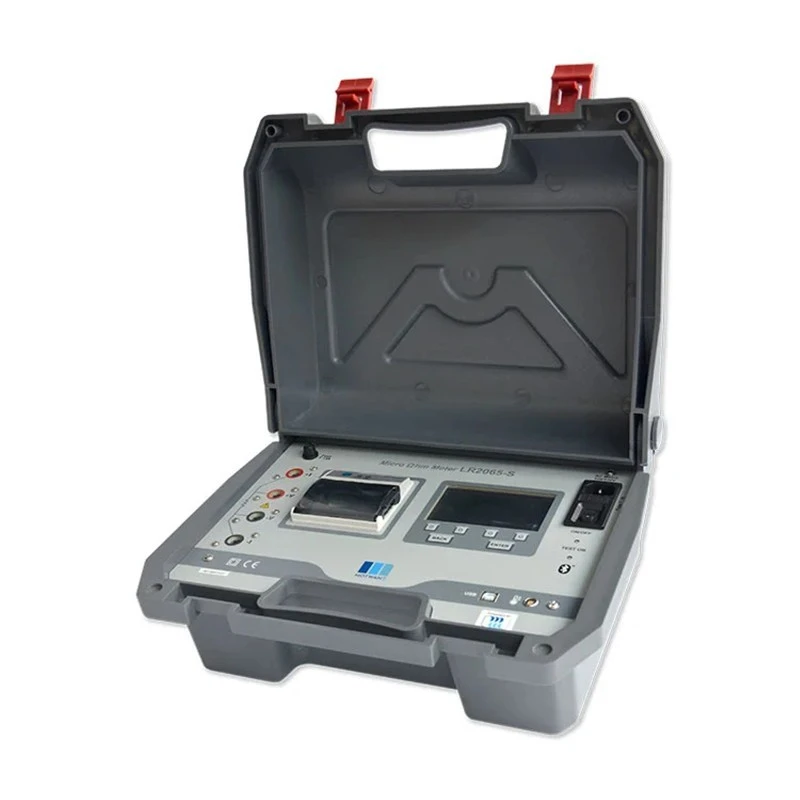

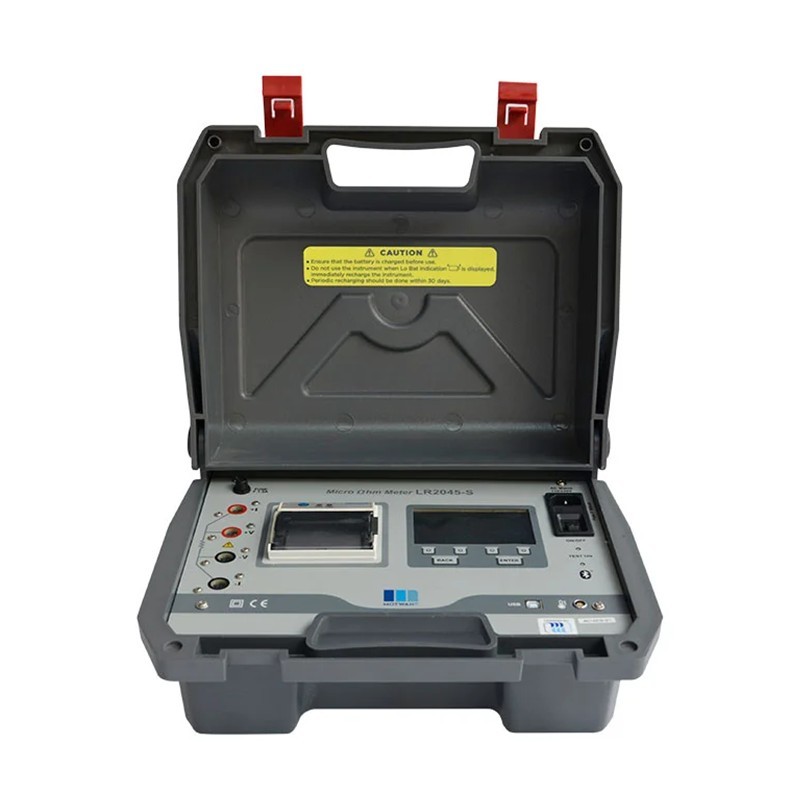

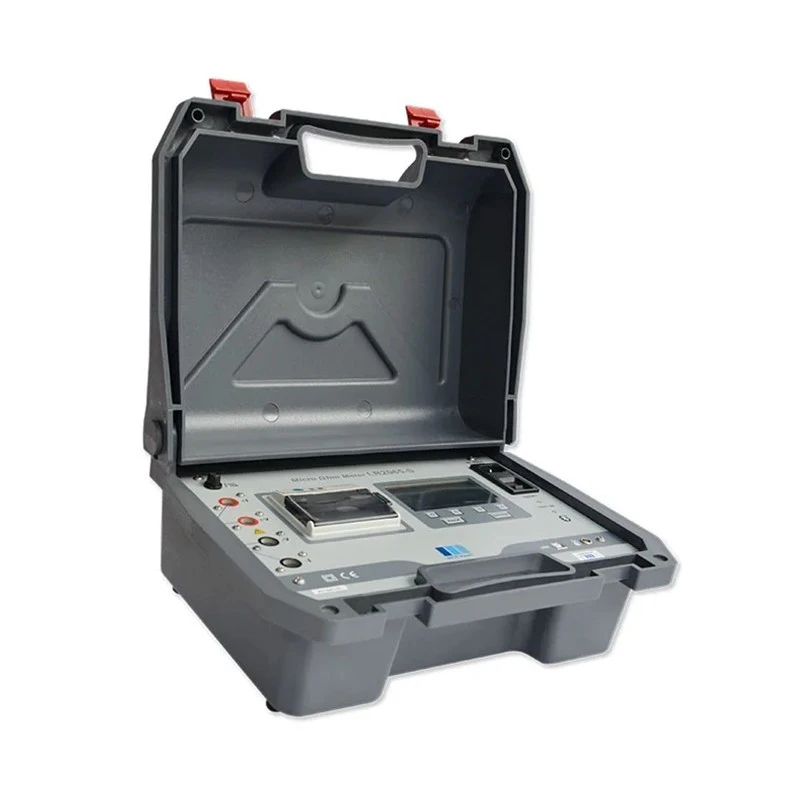

Motwane LR2045-S Micro Ohm Meter
Specifications
| Country of Origin | India |
|---|---|
| Display | Large seven segment LED display / 4 ½ inch digits / Max. display 19999 / Update rate 2.5 times/second |
| Brand | Motwane |
| Power Supply | 230 VAC ± 10% / 50Hz / single phase |
| Net Weight | 5.0 kg (Approx) |
| Operating Temperature | 0°C - 40°C |
| Storage Temperature | 0°C - 55°C |
| Protection Type | Back EMF protection / Mains overload protection (Fuse 250mA) / All ranges fuse protected (Input fuse 1A) |
| Humidity | Less than 95% RH / non-condensing |
| Model | LR2045-S |
| Indications | LEDs for range and Ω/mΩ / LED for operation and pulse mode |
| Dimensions (HxWxL) | 210 mm x 290 mm x 360 mm |
| Overrange Indication | Blinking Zero Display |
| Underrange Indication | All display shows zero (not blinking) |
Key Features
- 4 ½ digits large and clear LED display
- Back EMF protection
- Accurate & stable readings
- PC interfacing with software
- Four wire measurement method
- Highly rugged industrial graded casing
- Six measurements range from 20mΩ to 2kΩ
- Sealed soft touch membrane keypad
- Measured by Kelvin method
Product Description
Motwane’s LR 2045-S is a Digital Micro-Ohmmeter provided with maximum 1A DC current injection and works on the principle of the four wire technique. The four wire technique makes it possible to accurately measure resistance values less than 0.1 Ω while eliminating the inherent resistance of the lead wires connecting the measurement instrument to the component being measured. This instrument is protected against back EMF during inductive measurement and heat run test, which is suitable for resistance measurements of inductive and resistive loads. It has a 4 ½ digits LED display, and resistance measuring range from 1μΩ to 2000Ω. It is user-friendly equipment with a USB for PC interface. The windows based data management software is provided for recording the test results data, and report generation.
Application
Micro Ohmmeter is generally used for bonding contact applications and for measuring extremely low resistance with high accuracy at particular test currents. It is a small portable device that measures resistance and voltage. Typical applications include the measurement of:
- Hot & cold winding resistance measurement of motors, generators, alternators, and transformers.
- Contact resistance measurement of fuses and miniature circuit breakers.
- Resistance measurement of cables & wires.
- Bond testing of aircraft frames.
- Resistance measurement of resistive components (e.g.: resistors, shunts, etc.)
Application
Micro Ohmmeter is generally used for bonding contact applications and for measuring extremely low resistance with high accuracy at particular test currents. It is a small portable device that measures resistance and voltage. Typical applications include the measurement of:
- Hot & cold winding resistance measurement of motors, generators, alternators, and transformers.
- Contact resistance measurement of fuses and miniature circuit breakers.
- Resistance measurement of cables & wires.
- Bond testing of aircraft frames.
- Resistance measurement of resistive components (e.g.: resistors, shunts, etc.)
Available on EnvMart, these Ohm Meters are designed for accurate resistance measurement in electrical circuits and components. Motwane Ohm Meters offer high precision and reliability, making them essential for electrical testing, maintenance, and quality control applications.
