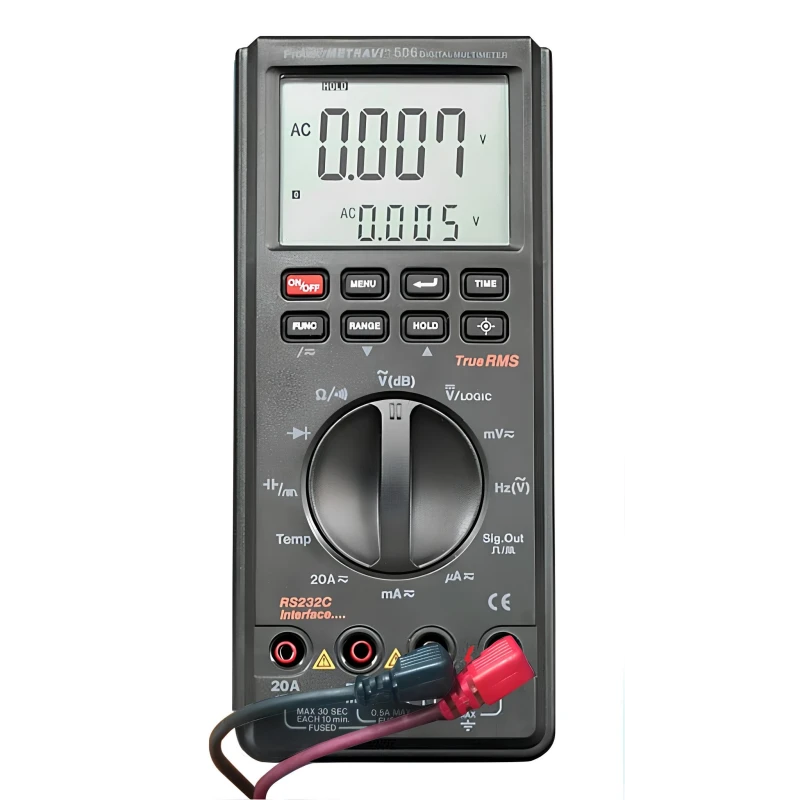

Metravi Digital LCR Meter with Multimeter 506
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Carrying Case / Manual / Test Leads / Gift Box / Battery / RS232C Cable |
| Temperature Accuracy | ±3% |
| Display | 3-3/4 Digits Backlit 3999 Counts Dual Extra Large LCD |
| Frequency | 0–10kHz/100kHz/1MHz/10MHz |
| Brand | Metravi |
| Model | 506 |
| Temperature | -20°C~+1200°C/0°F~+2000°F |
| Duty Cycle | 0.1%–99.9% |
| AC Current | 0–400µA/400mA/20A T-RMS |
| DC Voltage Accuracy | ±0.3% |
| Resistance | 0–400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ |
| Frequency Accuracy | ±0.01% |
| Capacitance | 0–100µF |
| DC Current | 0–400µA/400mA/20A |
| Resistance Accuracy | ±0.5% |
| DC Current Accuracy | ±1.0% |
| AC Voltage Accuracy | ±1.0% |
| Capacitance Accuracy | ±3.0% |
| AC Current Accuracy | ±1.5% |
| Duty Cycle Accuracy | ±1.2% |
| Inductance Accuracy | ±3.0% |
| AC Voltage | 0–400mV/4V/40V/400V/750V T-RMS |
| DC Voltage | 0–400mV/4V/40V/400V/1000V |
| Inductance | 0–20H/50H/100H |
| Dbm | -25dBm–+59dBm |
| Dbm Accuracy | ±0.5dBm. |
Key Features
- True RMS
- Dual Display for Frequency, AC Voltage and
- Temperature
- RS232C Interface
- 10 Location Memories
- Min., Max., Avg. and Relative Mode
- Decibel Measurement
- Capacitance and Inductance Measurement
- Temperature Mode (°C/°F)
- Pulse Signal Injection Function for Logic and
- Audible Test etc.
- Continuity and Diode Test
- Logic Test
- Auto Power Off and "Keep On" Mode
- Fused 20A Input with Warning Beeper
- Back Light
- Date Hold and Run Mode
- Low Battery Indication Mode
Product Description
Metravi 506 Digital LCR Meter with Multimeter combines inductance, capacitance, resistance, and standard multimeter functions in one versatile instrument. It supports multiple test frequencies and measurement modes, delivering fast, accurate readings with True RMS capability. Ideal for R&D labs, production testing, and component evaluation, it includes data hold, auto-ranging, and low battery indication. Built for reliability and ease of use, the 506 enhances electronic diagnostics by merging LCR precision with full digital multimeter versatility.
Available on EnvMart, these LCR Meters are used to measure inductance (L), capacitance (C), and resistance (R) with high accuracy, essential for circuit design, testing, and maintenance. Metravi LCR Meters are trusted for their precision, user-friendly interface, and reliable performance—ideal for electronics engineers, technicians, and QA professionals.
