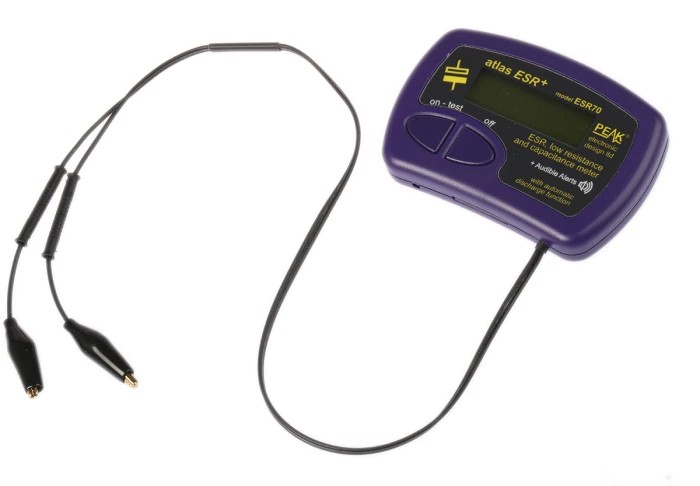

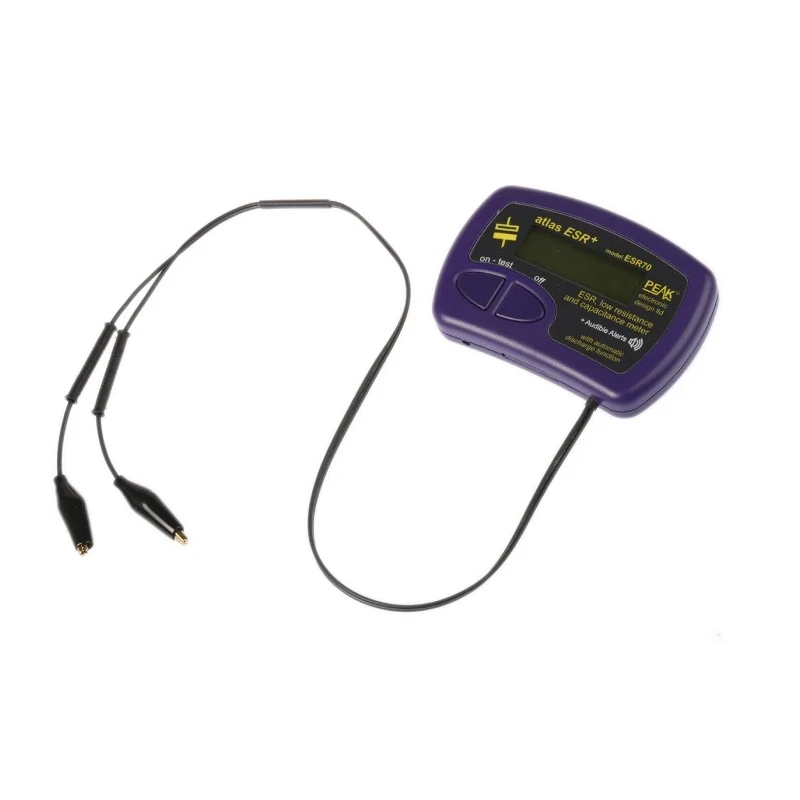

Peak Electronic Design Handheld LCR Meter 22 mF Capacitance, 4 mΩ Resistance ESR70

Peak Electronic Design ESR70 handheld LCR meter delivers reliable and instant capacitance and resistance measurements ideal for electronic component testing in industrial, laboratory, and electronic repair environments.

Designed for both in-circuit and out-of-circuit capacitor testing, it provides an equivalent series resistance (ESR) analysis at a frequency of 100 kHz, indicating capacitor health without removal from circuits.

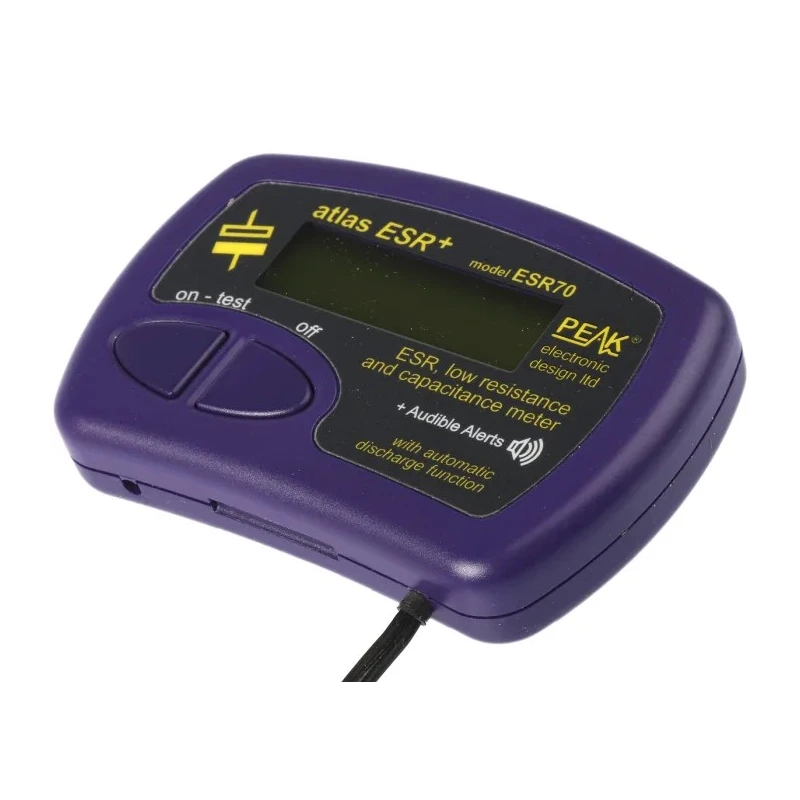

The device features an easy-to-read LCD with resolution down to 0.01 ohms and polarity-free probes allowing quick connection without concern for polarity.

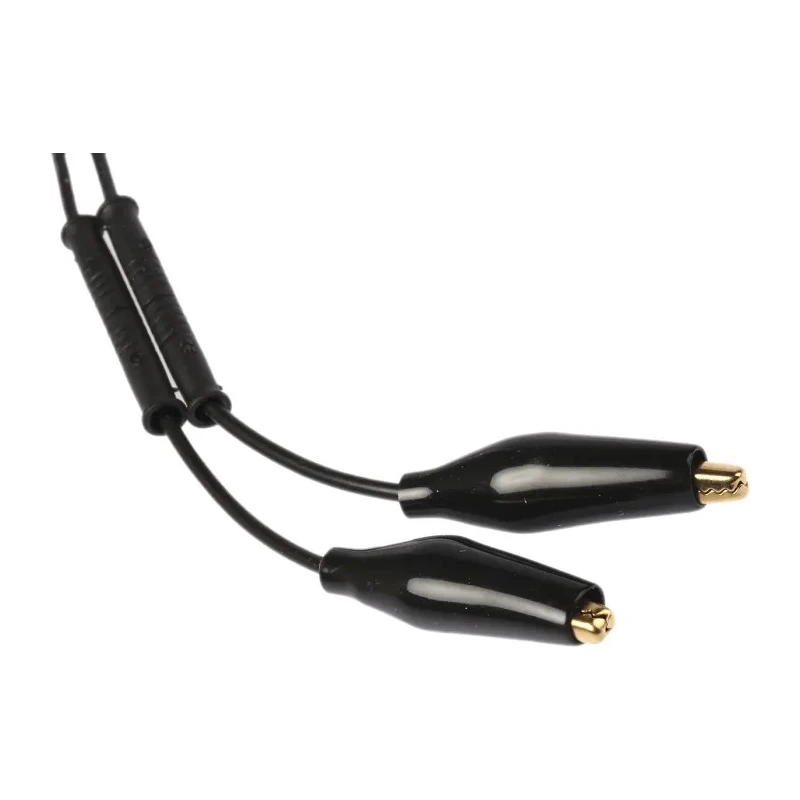

Included with this meter are extra-long, flexible 450mm silicone-covered test leads fitted with gold-plated crocodile clips using a 4-wire Kelvin connection to ensure measurement accuracy and durability.

Additional user conveniences include automatic capacitor discharge using a controlled function and an audio tone feedback to quickly interpret test results.

Compact and lightweight, measuring 103mm length, 70mm width, and 20mm height, it is powered by a single A23 battery ensuring portability for field work, maintenance, and troubleshooting of electronic components.

The meter offers a maximum capacitance measurement of 22 mF and can measure resistance down to 4 mΩ. It operates safely within an ambient temperature range of 10°C to 40°C. No specific standards or approvals apply to this model.

This ESR70 meter from Peak Electronic Design is a practical tool for electronic technicians and engineers requiring precise capacitance and low-resistance measurements as part of quality control, repair, and maintenance operations.
