RS PRO RC Component Tester Tweezers Resistance Resolution 100mΩ Capacitance Measurement Resolution 1pF 144-5340

Free Delivery in India | Lowest Global Shipping Charges

RS PRO RC Component Tester Tweezers Resistance Resolution 100mΩ Capacitance Measurement Resolution 1pF 144-5340

Name: RS PRO RC Component Tester Tweezers Resistance Resolution 100mΩ Capacitance Measurement Resolution 1pF 144-5340
Brand: RS PRO
SKU: 211090
Price: 80.59 USD
Availability: InStock



Category Electronic Component Testers Brand RS PRO Condition New

Specifications

Country of Origin	China
Display Type	LCD
Brand	RS PRO
Battery Life	60h
Battery type	AG13, LR44
Length	148mm
Model	144-5340
Width	90mm
Maximum Operating Temperature	50°C
Tester Type	RC Component Test Tweezers
Minimum Operating Temperature	-10°C
Capacitance Resolution	1pF
Resistance Resolution	100mΩ
Standards/Approvals	EU Norm, Double isolation, Classe 2
Maximum Resistance Measurement	60mΩ
Maximum Capacitance Measurement	60mF
Minimum Capacitance Measurement	6nF

Key Features

Resistance resolution of 100 milliohms ensures precise measurement.
Capacitance measurement resolution is as fine as 1 picofarad.
Equipped with an easy-to-read 6000 counts LCD display.
Powered by 2 AG13, LR44 1.5 V batteries with 60 hours battery life.
Automatic DCV and ACV selection for versatile testing.
Offers continuity, diode, resistance, and capacitance testing features.
Auto power off feature extends battery life after 10 minutes of inactivity.
Compact length of 148 mm and width of 90 mm for ease of use.

Product Description

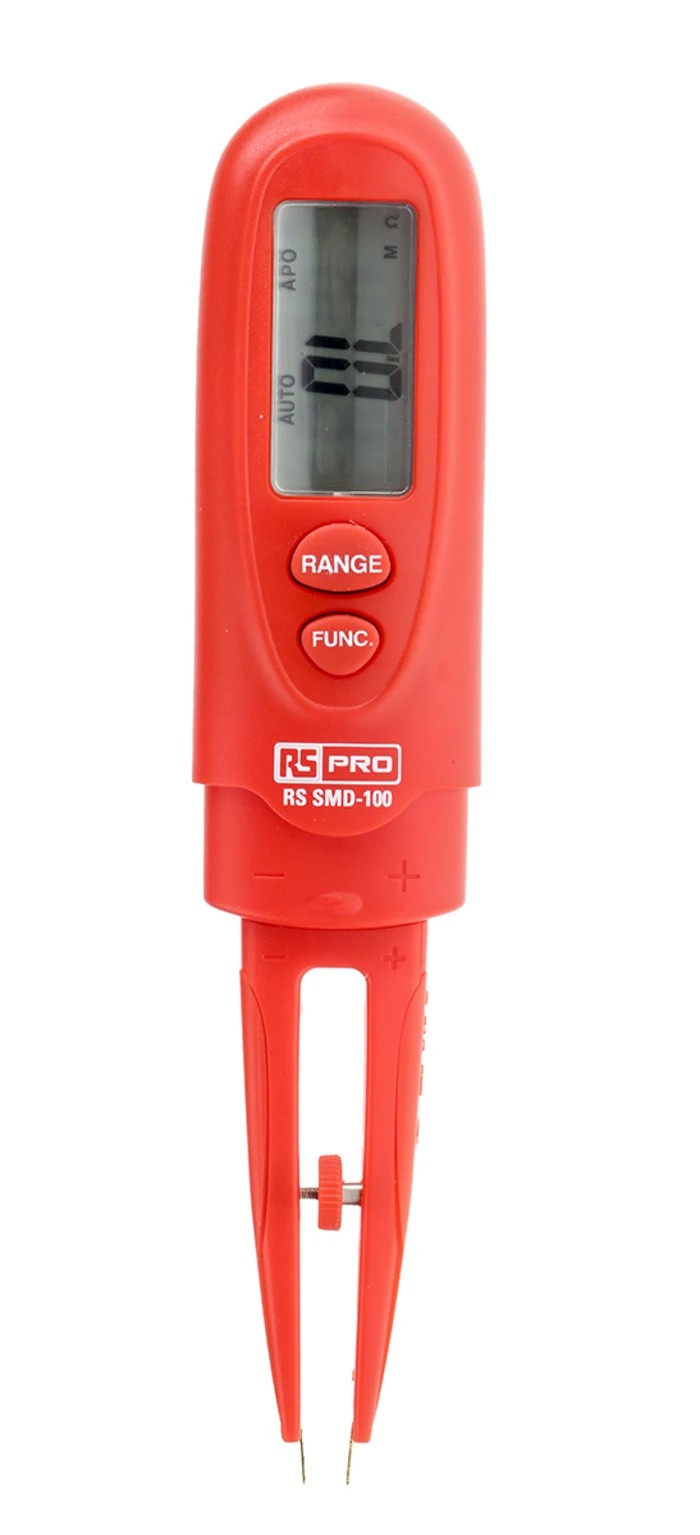

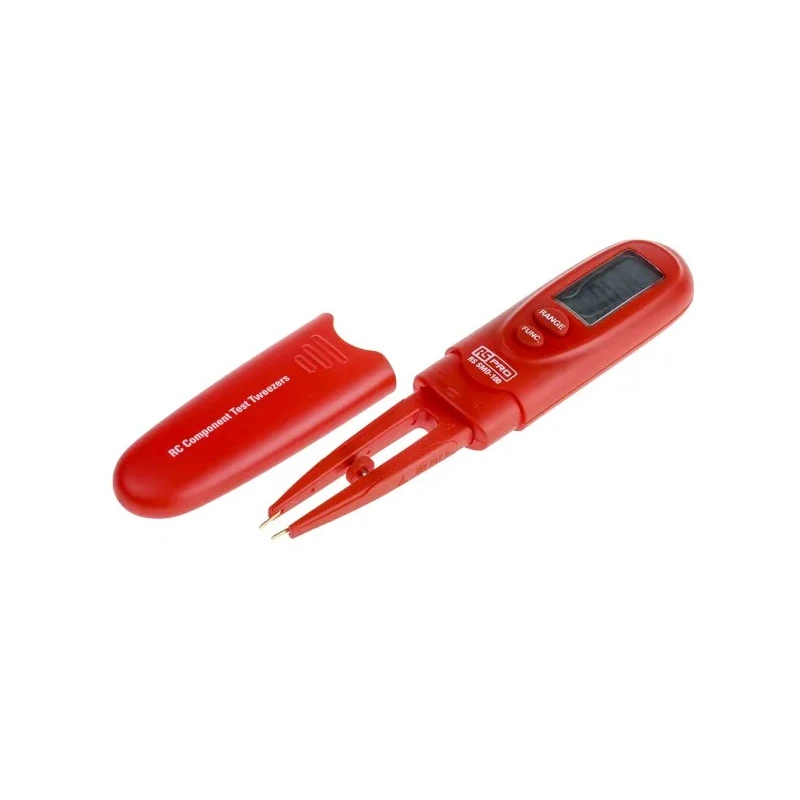

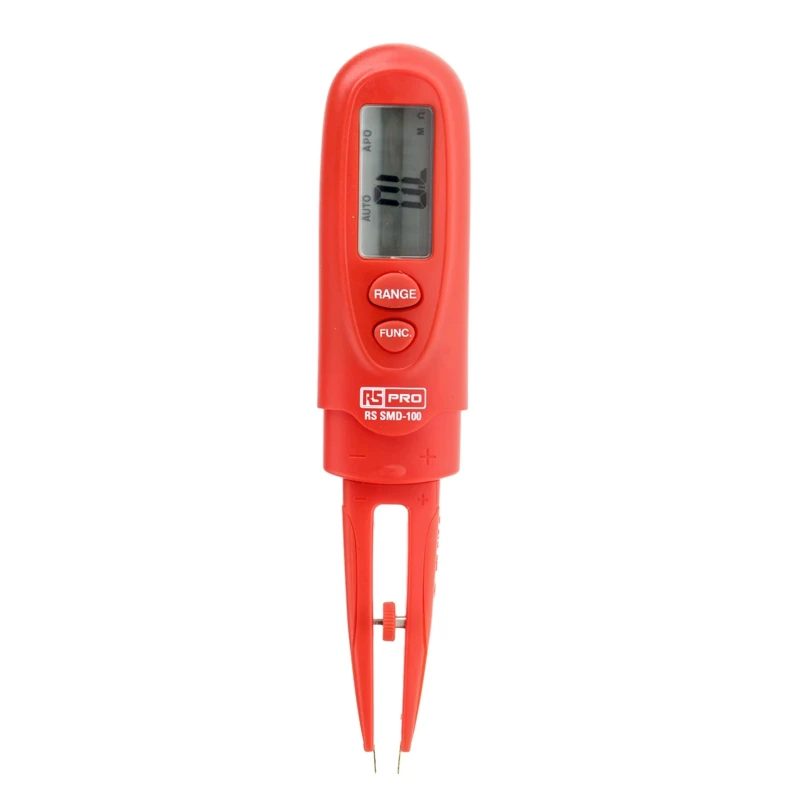

RS PRO 144-5340 RC Component Tester Tweezers offer precise and reliable measurement of resistance and capacitance, tailored for testing small and delicate SMD electrical components.

This handheld device features automatic DCV and ACV detection modes along with capacitance, resistance, continuity, and diode testing capabilities. Its 6000 count LCD display provides a clear view of measurements, complemented by data hold and max/min recording modes for detailed analysis.

The tweezers' slim design, with a length of 148 mm and width of 90 mm, allows for easy handling and precise contact on minute components such as resistors, LEDs, and miniature batteries. Powered by two AG13, LR44 1.5 V batteries, it offers up to 60 hours of continuous use, supported by an automatic power-off function to conserve battery life after 10 minutes of inactivity.

The instrument operates effectively in ambient temperatures ranging from -10°C to 50°C and complies with EU Norm, double isolation, and Class 2 safety standards, ensuring safe and reliable use in industrial, laboratory, and electronic maintenance environments.

Resistance resolution of 100 milliohms for detailed resistance testing. Capacitance measurement resolution of 1 picofarad supports sensitive component evaluation. LCD display with 6000 counts for readability and accuracy.

Operates on two AG13, LR44 1.5 V batteries with long battery life. Automatic selection of DCV or ACV testing modes. Continuity, diode, capacitance, and resistance test functions increase versatility. Auto power-off feature ensures battery preservation.

Compact 148 mm length and 90 mm width for easy handling. High precision tips enable testing of very small components. Operating temperature range from -10°C to 50°C. Complies with EU Norm, Double isolation, and Class 2 safety standards.

This RS PRO component tester is ideal for electronic manufacturers, repair technicians, and laboratory technicians for production, troubleshooting, and maintenance applications. Its user-friendly features and comprehensive testing capabilities make it a vital tool in electronic component testing.
