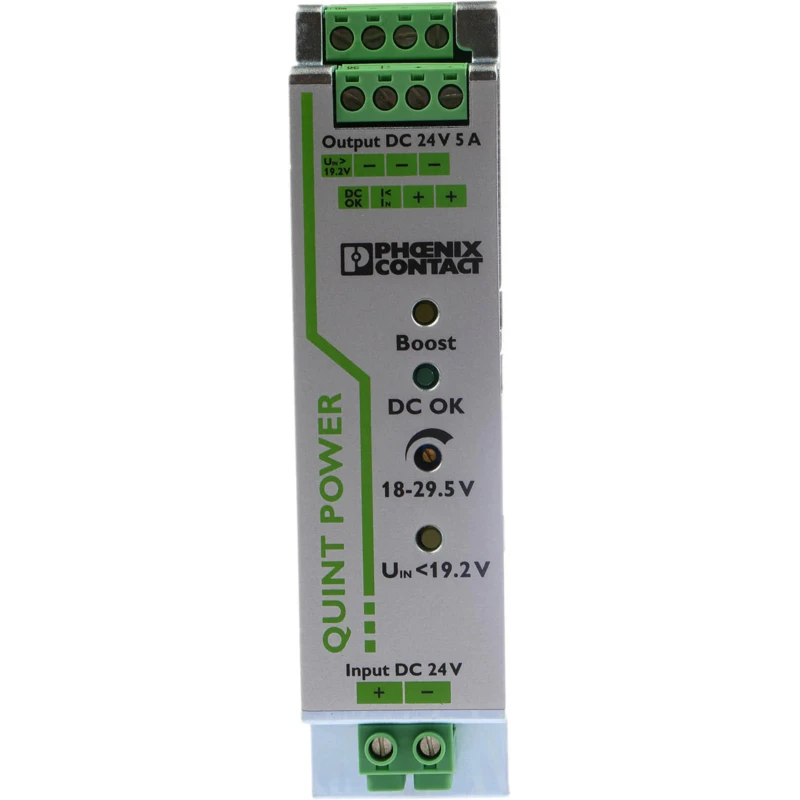

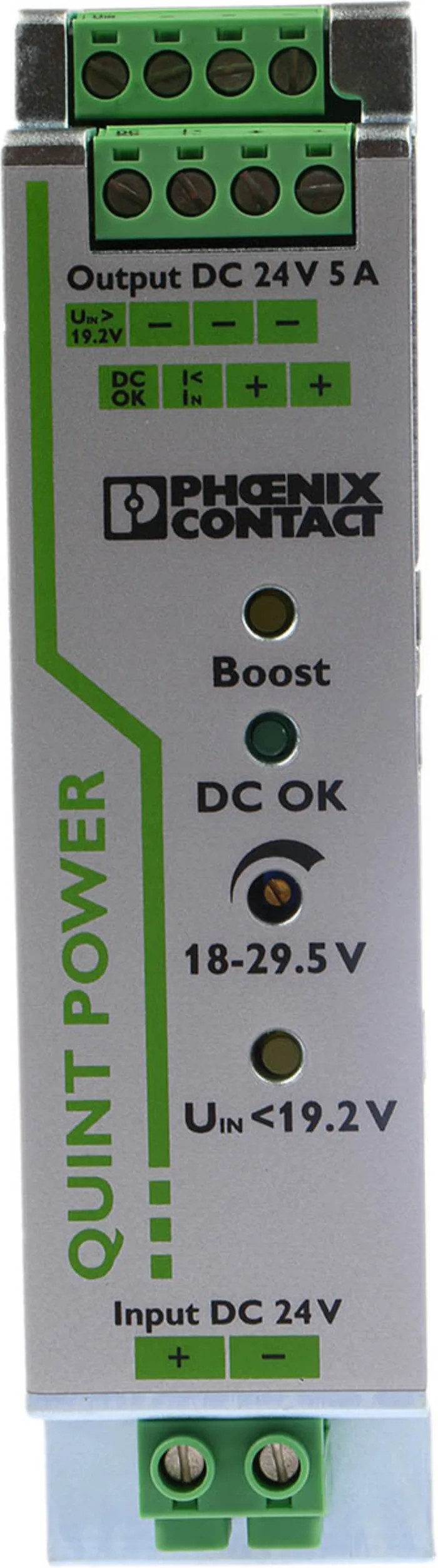

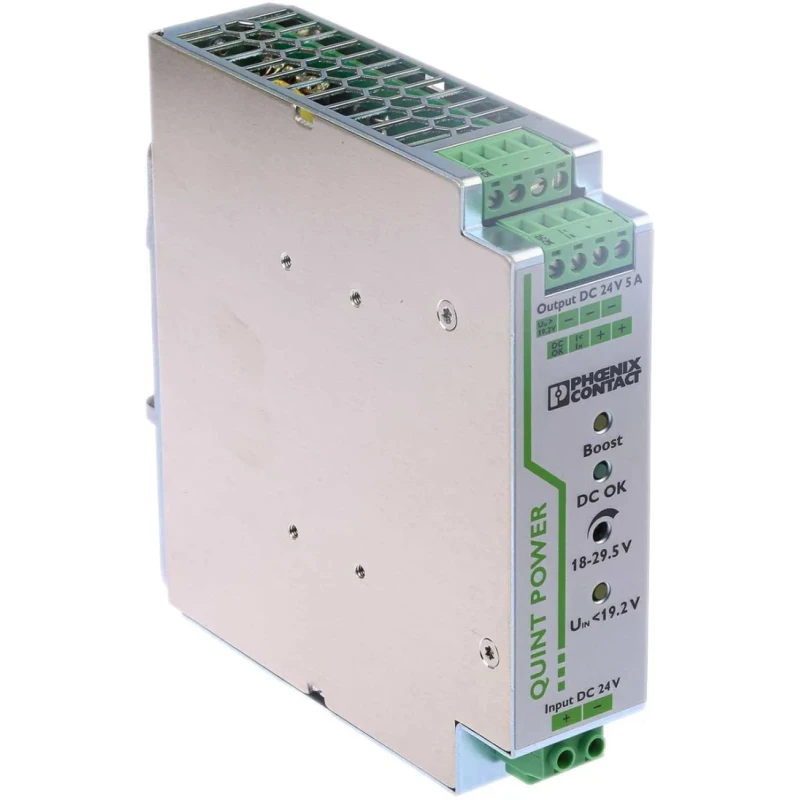

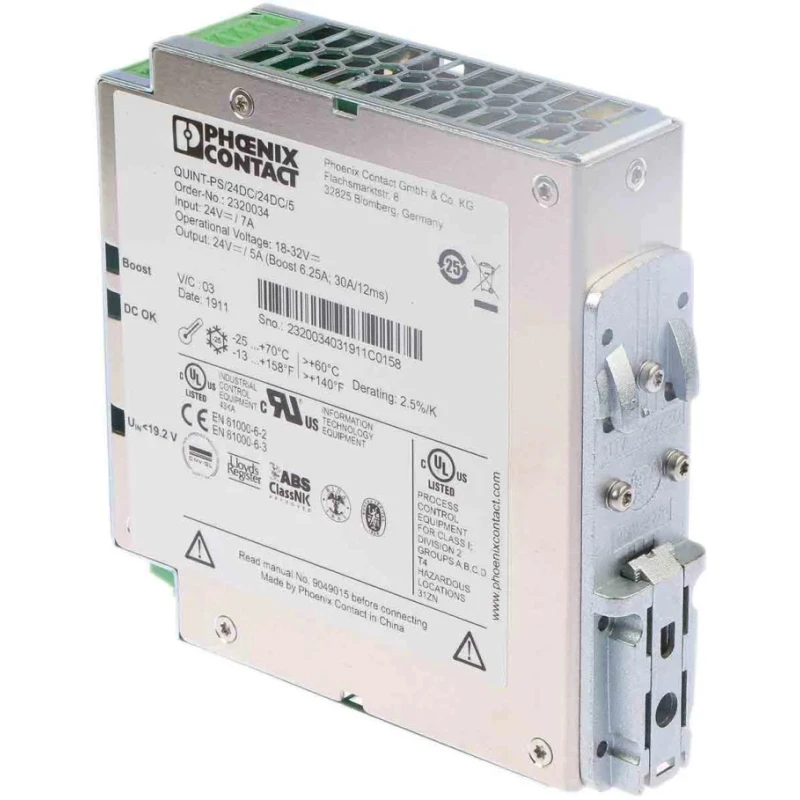

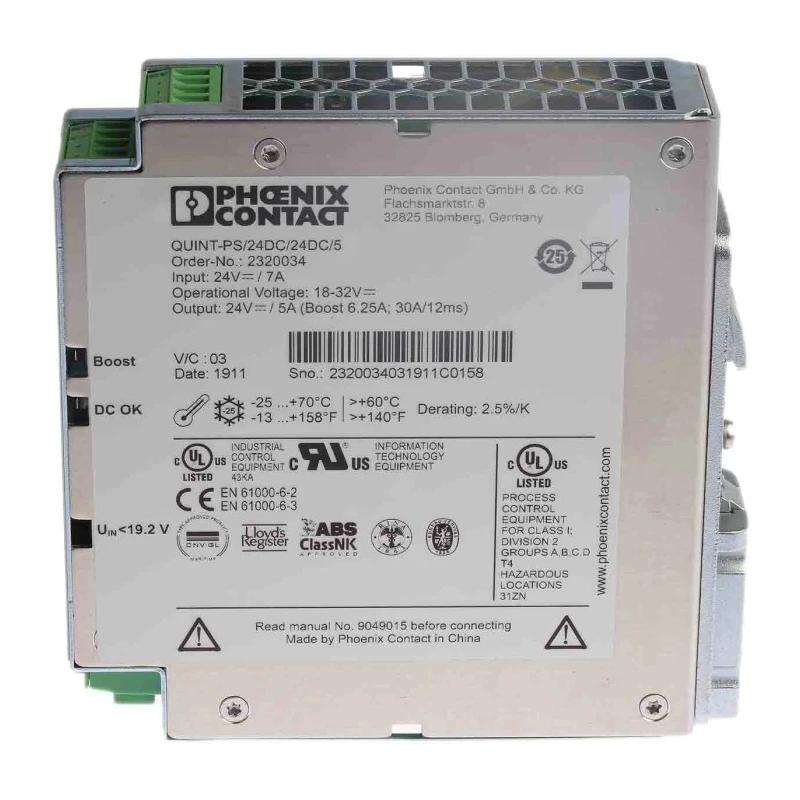

Phoenix Contact QUINT-PS/24DC/24DC/5 DC/DC Converter, 24V DC, 5A Output, 32V DC Input, 120W Power, DIN Rail Mount 2320034
Specifications
| Country of Origin | China |
|---|---|
| Brand | Phoenix Contact |
| Efficiency | 92% |
| Length | 130mm |
| Model | 2320034 |
| Depth | 125mm |
| Gross Weight | 700g |
| Width | 32mm |
| Mount Type | DIN Rail |
| Series | QUINT-PS/24DC/24DC/5 |
| Minimum Operating Temperature | 70°C |
| Number of outputs | 1 |
| Ripple and Noise | 20mV Pk-Pk |
| Maximum Output Power | 120W |
| Maximum Input Voltage | 32V dc |
| Standards/Approvals | cULus, cUL, EAC, UL |
| Minimum Input Voltage | 24V dc |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 739-7900Brand: Phoenix ContactManufacturers Part No.: 2320034Distrelec Article No.: 11028630 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 5A |
| Output Voltage Adjustment Range | 18 to 29.5 V |
| Isolation Voltage | 1.5kV dc |
| Output Voltage 2 | 29.5V |
Key Features
- Compatible with input voltage range from 24V DC to 32V DC ensuring versatile power supply compatibility.
- DIN rail mount type supports easy installation in industrial control cabinets or machinery.
- High efficiency of 92% enhances energy savings and reduces heat generation during operation.
- Equipped with 1.5 kV DC isolation voltage for electrical safety and system protection.
- Ripple and noise level is limited to 20mV Pk-Pk for clean power output to sensitive electronics.
- Built-in reverse polarity protection to safeguard equipment from accidental power supply reversal damage.
- Power Boost technology included to reliably start heavy electrical loads with power surges and bursts.
- Designed to operate within temperatures up to 70°C, suitable for demanding industrial environments.
Product Description
Phoenix Contact 2320034 QUINT-PS/24DC/24DC/5 is a DC/DC converter designed to supply precise and stable 24 V DC output voltage at 5 A output current with a power capacity of 120 W. It supports input voltages ranging from 24 V DC to 32 V DC, making it suitable for various industrial and electrical equipment needing voltage conversion.
This DIN rail mountable converter features advanced technologies such as Power Boost, which ensures reliable startup of heavy loads by providing an instantly acting power reserve. Its integrated reverse polarity protection prevents damage caused by incorrect wiring during installation or maintenance. Additionally, the device provides transient surge protection, safeguarding connected equipment from electrical surges and power spikes.
With an efficiency of 92%, this converter maximizes power usage while minimizing heat losses. The unit maintains a low ripple and noise level of 20 mV Pk-Pk, delivering clean and stable DC voltage essential for sensitive electronics.
The converter has an isolation voltage rating of 1.5 kV DC, enabling it to electrically isolate supply systems and support safe operations. Its durable conformal coating protects internal circuitry from harsh industrial environments containing chemicals and contaminants.
Operating temperature ranges from -25°C up to 70°C ensure reliability in demanding conditions. Compact size and low weight allow for space-saving installation on standard DIN rails inside control panels, machinery, and automation equipment in industrial, manufacturing, and material handling sectors.
Compatible with input voltage range from 24 V DC to 32 V DC. Single output delivering 24 V DC at 5 A current. DIN rail mount type for easy and secure installation. Power Boost technology for reliable startups of heavy electrical loads.
Built-in reverse polarity and surge protection for robust performance. High efficiency of 92% reduces energy losses. Operating temperature range: -25°C to +70°C. Low ripple and noise of 20 mV Pk-Pk for clean power supply.
Compact dimensions: 130 mm length × 32 mm width × 125 mm depth. Lightweight design at 700 g. Suitable for industrial, manufacturing, automation, and material handling applications.
Choose the Phoenix Contact QUINT-PS/24DC/24DC/5 DC/DC Converter for reliable, efficient, and safe voltage conversion in your electrical equipment setups. Browse EnvMart's Electronics & Electricals section for more power supply and converter solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports an input voltage range from 24 V DC to 32 V DC.
The maximum output power is 120 W, providing a stable 24 V DC output at 5 A current.
It has an efficiency rating of 92%, which helps in reducing energy losses during operation.
The dimensions are 130 mm in length, 32 mm in width, and 125 mm in depth.
It is designed for DIN rail mounting, facilitating easy installation in control cabinets or machinery.
The isolation voltage is rated at 1.5 kV DC, ensuring electrical safety and system protection.
The ripple and noise level is limited to 20 mV Pk-Pk, providing clean power output for sensitive electronics.
It operates within a temperature range from -25°C to +70°C, suitable for demanding industrial environments.
Yes, it includes built-in reverse polarity protection and transient surge protection to safeguard connected equipment.
This unit has a single output delivering 24 V DC at 5 A current.
It complies with cULus, cUL, EAC, and UL standards, ensuring it meets various safety and quality requirements.
It features Power Boost technology, which provides an instantly acting power reserve for reliably starting heavy electrical loads.
