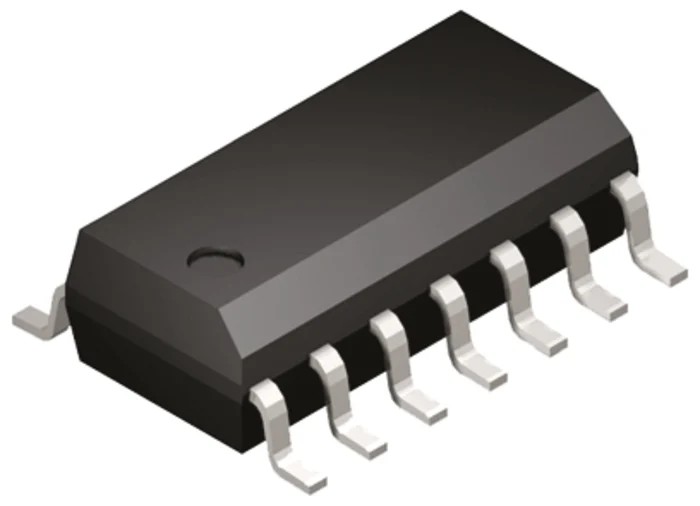

onsemi Inverter IC 6 Elements 14-Pin SOIC MC74AC04DR2G

onsemi MC74AC04DR2G is a 6-element inverter integrated circuit in a 14-pin Small Outline Integrated Circuit (SOIC) package designed for surface mounting. Operating within a voltage range of 2 to 6 volts, this inverter belongs to the high-speed 74AC logic family, suitable for advanced digital electronic circuits where rapid switching is essential.

The device exhibits a maximum propagation delay time of 10 nanoseconds under typical load conditions, providing efficient signal inversion with minimal lag. Its output current capability is defined by a maximum low level output current of 24mA and a maximum high level output current of -24mA, enabling interfacing with various logic circuits.

With dimensions of 8.75mm length, 4mm width, and 1.5mm height, this compact package supports high-density PCB designs. The operating temperature range from -40°C to 85°C ensures reliability in demanding industrial, automotive, and consumer electronics environments.

This onsemi inverter IC lacks Schmitt trigger input and automotive-specific certifications but excels in standard logic inverter applications in fields such as industrial automation, telecommunications, and embedded systems. Its surface mount type is compatible with automated production lines, enhancing manufacturing efficiency.

The MC74AC04 series is well-regarded for solid performance in fast switching logic gates, contributing to digital signal processing projects requiring inversion functions. The 14-pin package and surface mounting simplify integration into a wide range of electronic assemblies.

This inverter IC contains six independent inverter gates providing signal inversion functions. Surface mounting SOIC 14-pin package supports efficient PCB assembly. Supports operation from 2V to 6V supply voltages suitable for low-power applications.

High-speed logic performance with 10ns maximum propagation delay enhances circuit responsiveness. Designed for environmental operating ranges between -40°C and 85°C for wide application scope. Robust output current capabilities allow interfacing with diverse digital logic levels.
