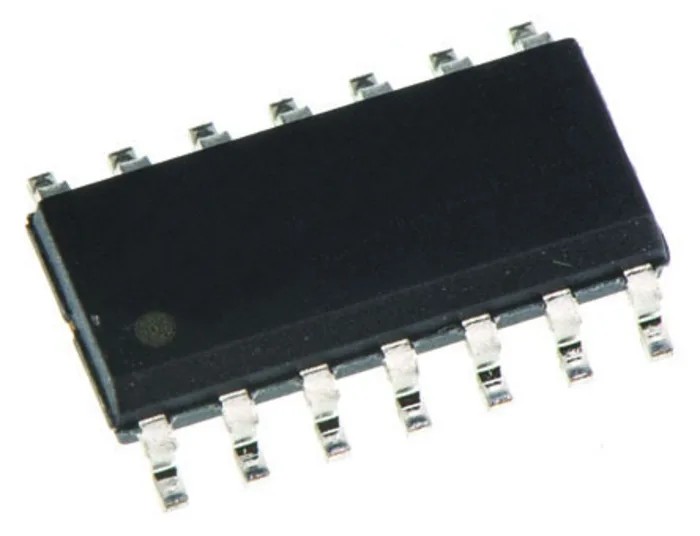

Texas Instruments SN7404D Logic Inverter IC 6 Elements Chip, 14-Pin SOIC Package SN7404D

Texas Instruments SN7404D is a high-performance logic inverter integrated circuit featuring six inverter elements per chip housed in a 14-pin Small Outline Integrated Circuit (SOIC) surface mount package. It belongs to the standard 74 Logic Family, supporting TTL logic levels with an operating voltage from 4.75 to 5.25 volts, making it suitable for many industrial, electronic, and manufacturing applications requiring reliable logic inverters.

This IC is designed for surface mounting on PCBs, facilitating compact layouts and mass production efficiencies in electronic assemblies. With precise pin configuration and stable operation across a temperature range of 0°C to 70°C, it is ideal for standard environment electronic components and systems.

The maximum output current capability supports typical logic circuit requirements, with a high-level output limit of -0.4 mA and a low-level output limit of 16 mA ensuring proper signal integrity and drive capability.

Physical dimensions of the package are 8.65 mm in length, 3.91 mm in width, and 1.58 mm in height, allowing for a compact footprint in tight PCB designs.

This logic inverter IC does not integrate Schmitt trigger inputs nor does it conform to automotive-grade temperature or quality standards, positioning it primarily for consumer, laboratory, and industrial control electronics.

The IC contains six independent inverter elements functioning as logic NOT gates. It is housed in a durable 14-pin SOIC surface mount package for space-efficient PCB designs. Designed for supply voltages from 4.75 to 5.25 volts ensuring stable TTL logic operation.

Operates within a standard industrial temperature range from 0°C to 70°C. Maximum output currents of -0.4 mA (high) and 16 mA (low) suit typical logic signal requirements. Dimensions suitable for various electronic assemblies with a small profile footprint.

No Schmitt trigger input or automotive compliance, suited for conventional electronic applications. This Texas Instruments SN7404D logic inverter IC is widely used in industrial automation, consumer electronics, electronic instrumentation, and manufacturing PCB assemblies.
