4D Systems 0.96 in Passive Matrix White OLED Display Starter Kit 96 x 64 Pixel Matrix Serial SK-96G2
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | 4D Systems |
| Dimensions | 26 mm x 21 mm x 13.2 mm |
| Model | SK-96G2 |
| Maximum Operating Temperature | 70°C |
| Display colour | White |
| Minimum Operating Temperature | -30°C |
| External Width | 26mm |
| External Depth | 2mm |
| External Height | 21mm |
| Power Dissipation | 1W |
| Interface Type | Serial |
| Screen Resolution | 96 x 64 pixel |
| Standards/Approvals | RoHS |
| Forward Voltage | 5.5V dc |
| Forward Current | 180mA |
| Viewing Area Dimensions | 20.1 x 13.4 mm |
| Diagonal Display Size | 0.96in |
| Contrast Ratio | 5000:1 |
| Matrix Type | Passive |
| Driver Mounting | Matrix |
| •Viewing area | 20.1 mm x 13.4 mm |
| Contrast Ratio5000 | 1 |
| 5000 | 1 |
Key Features
- The display features a passive matrix OLED technology with a high contrast ratio of 5000:1.
- It has a compact viewing area of 20.1 mm by 13.4 mm suitable for small scale electronic projects.
- The kit supports a forward voltage of 5.5V DC and operates at a current of 180mA.
- Operating temperature ranges from -30°C up to 70°C, ensuring reliability in varied environments.
- Includes a microSD card adaptor and supports Windows fonts and characters for versatile display options.
- Equipped with a 10 KB flash memory and 510 bytes of RAM for graphics and animation handling.
- Serial interface with one asynchronous hardware serial port for easy connectivity.
- Compact external dimensions of 26 mm width, 21 mm height, and 2 mm depth for flexible mounting.
Product Description

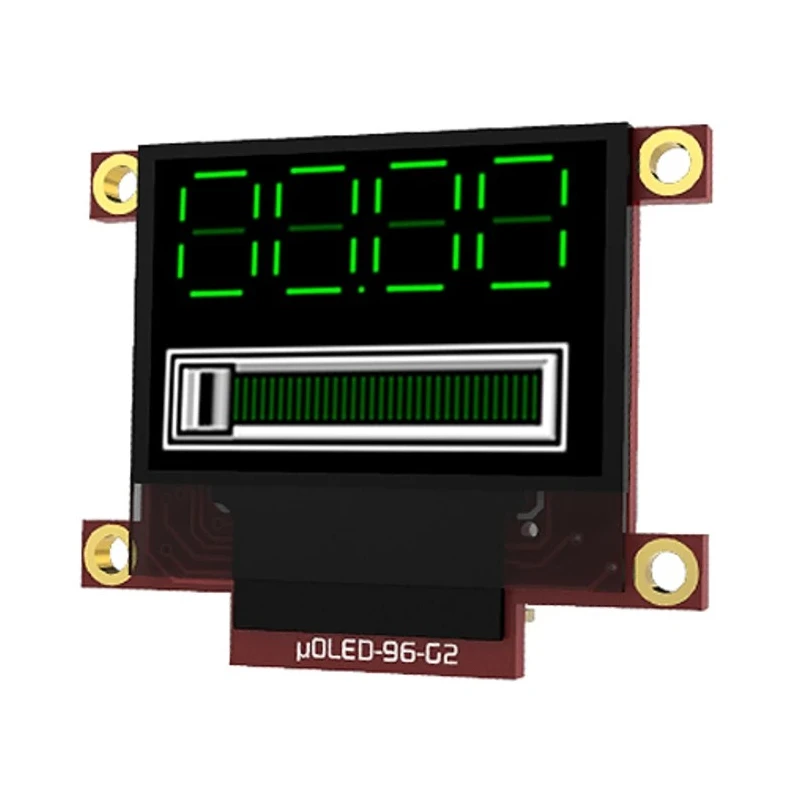

4D Systems SK-96G2 is a 0.96 inch Passive Matrix White OLED Display Starter Kit featuring a 96 x 64 pixel resolution and serial interface. This compact starter kit is designed for industrial, laboratory, and embedded system applications where high contrast and compact size are crucial.

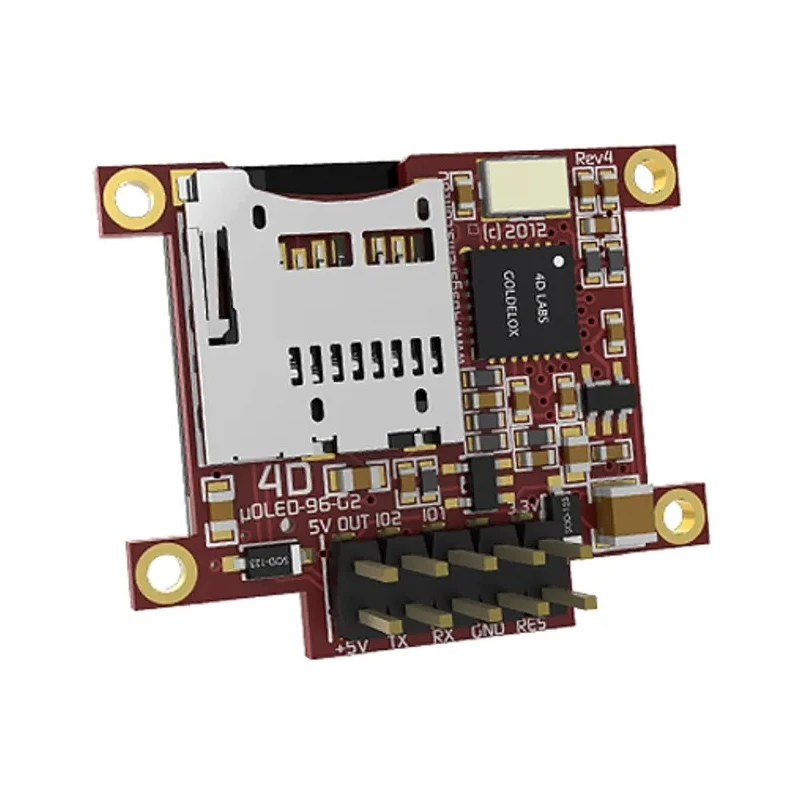

The OLED module features a passive matrix layout with a remarkable contrast ratio of 5000:1 and utilizes the GOLDELOX graphics controller driven by the Extensible Virtual Engine (EVE). The display supports up to 65k colours, enabling rich graphics, animations, icons, and video display capability.
Key technical specifications include a viewing area of 20.1 mm by 13.4 mm and an operating voltage range accommodating 4.0 V to 5.5 V power supplies. The module operates comfortably between -30°C and 70°C, providing stable performance in harsh electrical and environmental conditions.

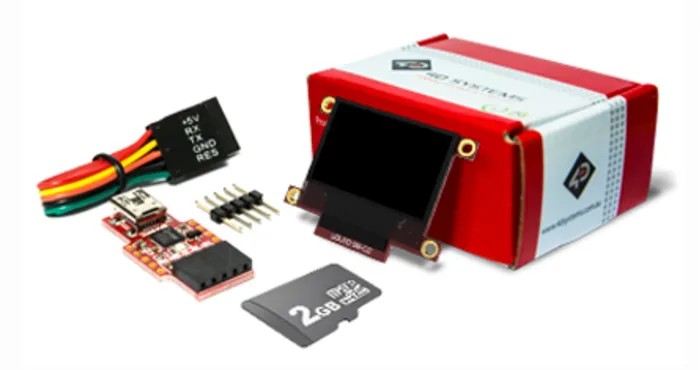

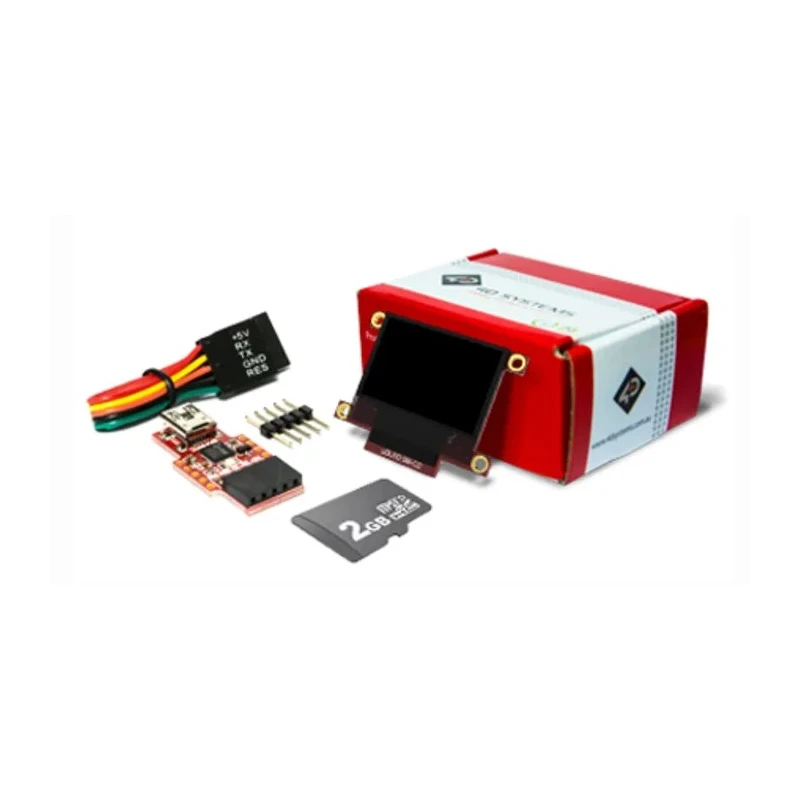

SDK Access is available via Workshop4 IDE supporting 4DGL graphics language development, further extending flexibility and customizability of the display outputs. The starter kit includes a microSD memory card adaptor, 2 GB microSD card, a uUSB-PA5 programming adaptor, 5 way jumper cables, and a quick start user guide to facilitate seamless integration within projects.
This OLED Starter Kit is suitable for use in electronic prototyping, embedded graphical interfaces, instrumentation panels, and other commercial or industrial display needs. The display utilizes passive matrix microOLED technology for crisp graphical presentation.
Serial interface enables straightforward connection to microcontrollers and embedded systems. Robust operating temperature range enables functionality across diverse environments. The product is RoHS compliant, supporting safe and environmentally friendly usage.
Compact form factor simplifies integration into equipment with limited space availability. Explore more 4D Systems OLED modules and starter kits for technologically advanced display solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The screen resolution of this OLED display is 96 x 64 pixels.
The external dimensions of the SK-96G2 display are 26 mm in width, 21 mm in height, and 2 mm in depth.
This model operates within a temperature range of -30°C to 70°C.
The display utilizes a serial interface for connectivity.
The forward voltage required for operation is 5.5V DC, and it operates at a current of 180mA.
The OLED display has a contrast ratio of 5000:1.
The starter kit includes a microSD card adaptor, a 2 GB microSD card, a uUSB-PA5 programming adaptor, and 5 way jumper cables.
The viewing area dimensions of the display are 20.1 mm by 13.4 mm.
Yes, this product is RoHS compliant, supporting safe and environmentally friendly usage.
This display is suitable for electronic prototyping, embedded graphical interfaces, and instrumentation panels.
This display features passive matrix OLED technology.
The maximum power dissipation of the display is 1W.
