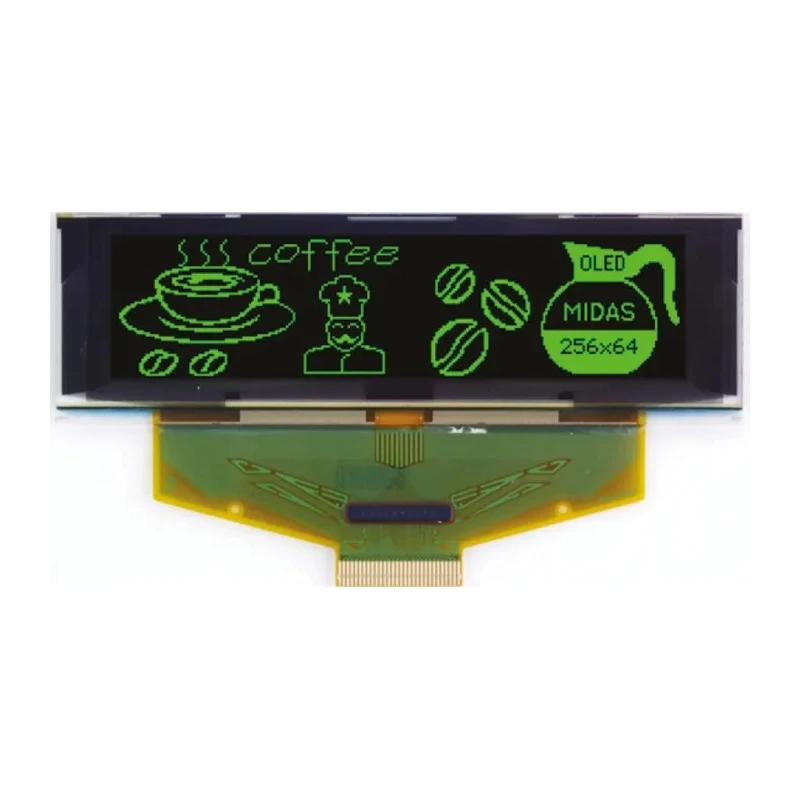

Midas 3.12 in Passive Matrix Green OLED Display 256 x 64 Pixel TAB Multi MCOT256064BA-GM
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Midas |
| Operating Temperature Range | -30 to 70°C |
| Model | MCOT256064BA-GM |
| Maximum Operating Temperature | 85°C |
| Display colour | Green |
| Minimum Operating Temperature | -30°C |
| External Width | 88mm |
| External Depth | 2mm |
| External Height | 27.8mm |
| Interface Type | Multi |
| Screen Resolution | 256 x 64 pixel |
| Standards/Approvals | RoHS |
| Touch Screen Type | OLED |
| Forward Voltage | 3.5V dc |
| Forward Current | 32.9mA |
| Viewing Area Dimensions | 78.78 x 21.18 mm |
| Diagonal Display Size | 3.12in |
| Contrast Ratio | 2000:1 |
| Matrix Type | Passive |
| Driver Mounting | TAB |
| 2000 | 1 |
| Contrast Ratio2000 | 1 |
| Operating life | 60,000 hours at 25°C |
Key Features
- Diagonal display size of 3.12 inches with viewing area of 78.78 x 21.18 mm.
- Passive matrix OLED technology provides high visibility and sharp green display color.
- 256 x 64 pixel screen resolution offers clear graphical performance.
- Operating temperature range from -30°C to 85°C for industrial resilience.
- Compact dimensions with external width of 88 mm, height 27.8 mm, and depth 2 mm.
- Forward voltage is 3.5V DC with forward current of 32.9 mA for efficient power use.
- Driver mounting through TAB (Taped Automated Bonding) enables low-profile assemblies.
- Midas Graphic PMOLED with typical operating life of approximately 60,000 hours at 25°C.
Product Description
Midas MCOT256064BA-GM is a 3.12 inch Passive Matrix OLED Display featuring a green monochrome display with 256 x 64 pixel resolution. The display module employs TAB (Taped Automated Bonding) technology allowing compact, low-profile integration suitable for various industrial and electronic applications.
This OLED display offers high contrast ratio of 2000:1 and a wide viewing angle exceeding 160 degrees both horizontally and vertically, ensuring excellent readability under diverse viewing conditions. It operates efficiently with a forward voltage of 3.5 V DC and a forward current of 32.9 mA.
The display dimensions are compact with an external width of 88 mm, height of 27.8 mm and depth of just 2 mm, making it well-suited for embedded systems and compact devices.
Engineered to withstand a broad operating temperature range from -30°C up to 85°C, this Midas OLED module is robust against environmental stress, meeting RoHS compliance for hazardous substances.
The typical operating life is approximately 60,000 hours at 25°C, making it a reliable choice for long-term instrumentation, industrial control panels, laboratories, and electronic displays.
These displays are commonly utilized in industrial automation, electronic instrumentation, control equipment, and other embedded applications requiring vivid green monochrome graphical output with stable performance.
Diagonal display size of 3.12 inches with 256 x 64 pixel resolution. Passive matrix OLED technology for high contrast and visibility. Compact dimensions: 88 mm width, 27.8 mm height, 2 mm depth. Wide operating temperature range from -30°C to 85°C.
Drive interface supports multiple interface types for flexible integration. Driver mounting via TAB for compact module design. High contrast ratio of 2000:1 with viewing angle > 160°. Typical operating life of 60,000 hours ensuring long-term reliability.
RoHS compliant and made in Taiwan, Province Of China.
This Midas OLED Display MCOT256064BA-GM is ideal for electronic and industrial equipment requiring precise, high-quality monochrome graphical displays with low power consumption and extended operating life.
Explore more OLED Displays and specialist electronic components in the Electronics & Electricals category at EnvMart to find suitable solutions for your applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The display resolution is 256 x 64 pixels, providing clear graphical performance.
It operates within a temperature range of -30°C to 85°C, making it suitable for various industrial applications.
The external dimensions are 88 mm in width, 27.8 mm in height, and 2 mm in depth, allowing for compact integration.
The forward voltage is 3.5V DC and the forward current is 32.9 mA, ensuring efficient power use.
The typical operating life is approximately 60,000 hours at 25°C, providing long-term reliability.
It employs passive matrix OLED technology, which provides high visibility and sharp green display color.
The contrast ratio is 2000:1, ensuring excellent readability under diverse viewing conditions.
Driver mounting is achieved through TAB (Taped Automated Bonding), allowing for low-profile assemblies.
The viewing area dimensions are 78.78 mm by 21.18 mm, providing a clear view of the displayed content.
Yes, it meets RoHS compliance for hazardous substances, making it suitable for environmentally conscious applications.
It is commonly utilized in industrial automation, electronic instrumentation, and control equipment requiring vivid graphical output.
The viewing angle exceeds 160 degrees both horizontally and vertically, ensuring visibility from various perspectives.
