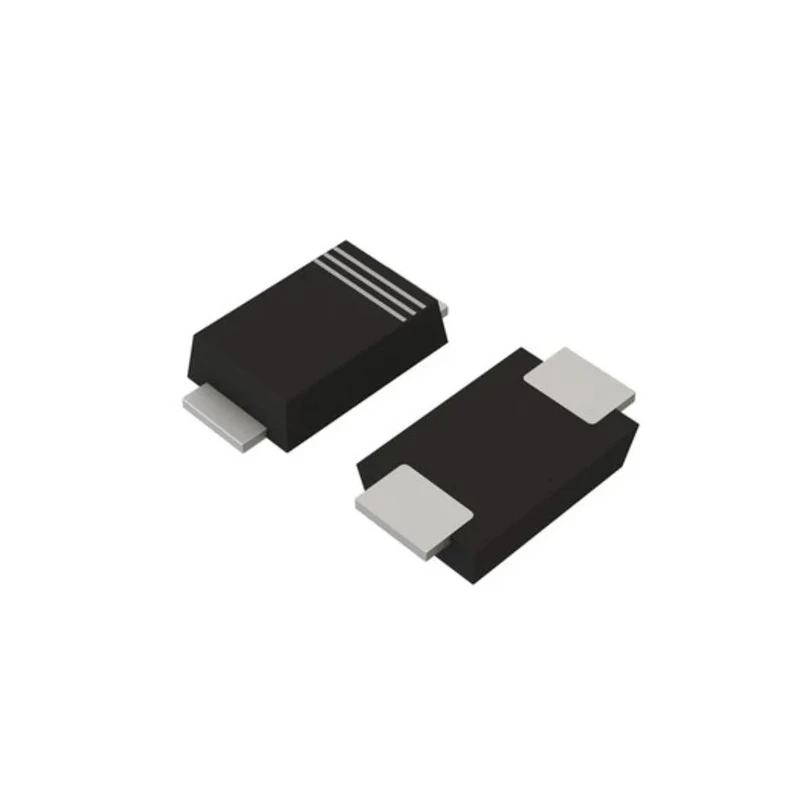

ROHM 100 V 1 A Schottky Barrier Diode Surface Mount SOD-128 RB168LAM100TFTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 1.05mm |
| Length | 3.9mm |
| Model | RB168LAM100TFTR |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | RB168LAM100TF |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-128 |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Maximum Forward Voltage Vf | 0.81V |
Key Features
- The diode features a silicon epitaxial planar structure for high reliability.
- It has a maximum forward voltage of 0.81 V to ensure low power loss.
- The device operates up to a maximum temperature of 150°C.
- AEC-Q101 automotive qualification ensures suitability for automotive applications.
- Compact dimensions of 3.9 mm length, 2.7 mm width, and 1.05 mm height allow for space-saving PCB design.
- Single diode configuration with 2-pin surface mount package provides easy integration.
- Peak reverse repetitive voltage rating of 100 V makes it suitable for general rectification tasks.
Product Description
ROHM RB168LAM100TFTR is a high-reliability Schottky Barrier Diode designed for surface mount applications. It features a silicon epitaxial planar type structure providing superior performance and low forward voltage drop, making it ideal for power rectification in electronic circuits.
The diode is packaged in a small SOD-128 case, enabling compact PCB layouts and integration in space-constrained electronic assemblies. With a maximum continuous forward current of 1 A and a peak reverse repetitive voltage of 100 V, this device is suitable for a wide range of general rectification and power management applications in consumer and automotive electronics.
Operating at temperatures up to 150°C, the diode maintains stability and reliability under harsh conditions. Its compliance with AEC-Q101 automotive standard validates its use in automotive systems requiring stringent quality and reliability.
The diode's typical forward voltage drop of 0.81 V contributes to improved efficiency and reduced power loss in circuits. The device's dimensions (Length: 3.9 mm, Width: 2.7 mm, Height: 1.05 mm) facilitate easy mounting on densely populated boards.
Silicon epitaxial planar Schottky barrier diode structure for enhanced performance. Surface mount type with SOD-128 package for compact design. Maximum forward current rating of 1 A ensures versatility in power applications.
Peak reverse voltage of 100 V suitable for rectification and switching. AEC-Q101 automotive standard compliance assures reliability in automotive environments. Wide operating temperature range up to 150°C for robust performance.
Compact physical dimensions simplify PCB layout and assembly.
This Schottky Barrier Diode from ROHM is well-suited to industrial, automotive, and consumer electronics requiring efficient power rectification and high reliability. It can be utilized in power supply circuits, voltage clamping, and protection circuits in various electronic devices.
Explore the comprehensive selection of Schottky Diodes & Rectifiers on EnvMart for your electronic component needs, including high-quality products from ROHM.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 1 A.
The peak reverse repetitive voltage rating for this model is 100 V.
The dimensions of the SOD-128 package are 3.9 mm in length, 2.7 mm in width, and 1.05 mm in height.
The maximum operating temperature for this diode is 150°C.
The typical forward voltage drop of this model is 0.81 V.
Yes, this diode complies with the AEC-Q101 automotive standard, ensuring its reliability in automotive applications.
This diode supports surface mounting, packaged in a SOD-128 configuration.
The diode configuration of this model is single.
This diode can be used in power supply circuits, voltage clamping, and protection circuits in various electronic devices.
The RB168LAM100TFTR is a Schottky rectifier, known for its low forward voltage drop and high efficiency.
This diode has a 2-pin configuration.
The country of origin for this diode is India.
