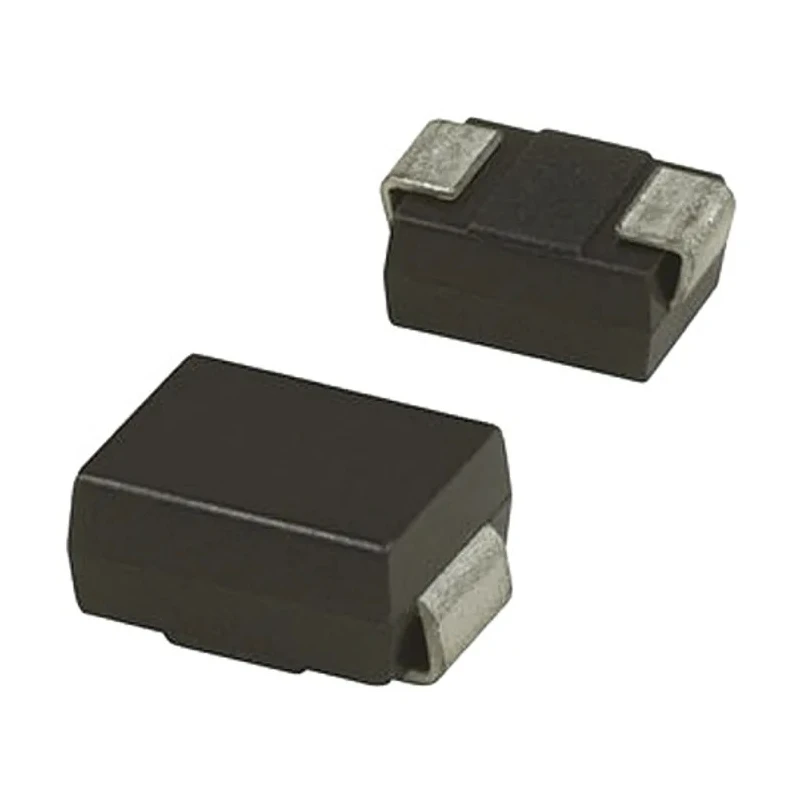

onsemi 600 V 2 A Switching Diode Surface Mount DO-214AA Package MURS260T3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.13mm |
| Length | 4.32mm |
| Model | MURS260T3G |
| Width | 3.56mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 35A |
| Maximum Forward Voltage Vf | 1.45V |
| Peak Reverse Recovery Time trr | 75ns |
Key Features
- Designed for high-speed switching applications with low forward voltage drop.
- Surface mount DO-214AA package suitable for automated PCB assembly.
- Maximum continuous forward current rating of 2 amperes.
- Peak reverse repetitive voltage rating of 600 volts.
- Extremely low peak reverse current of 5 microamperes.
- Robust operating temperature range from -65°C to 175°C.
- Peak non-repetitive forward surge current up to 35 amperes.
- Fast peak reverse recovery time of 75 nanoseconds.
Product Description
onsemi MURS260T3G is a high-performance Schottky switching diode designed to handle up to 2 A of continuous forward current with a peak reverse repetitive voltage of 600 V. Packaged in a compact DO-214AA surface mount package, this diode is ideal for applications requiring efficient rectification and switching in power electronics.
This device features a single diode configuration with a low forward voltage of 1.45 V, ensuring minimal power loss during operation. The diode supports an extensive operating temperature range from -65°C up to 175°C, making it suitable for harsh industrial and automotive environments.
The peak non-repetitive forward surge current rating of 35 A allows handling of transient current spikes, while the fast peak reverse recovery time of 75 ns reduces switching losses and improves circuit efficiency. The extremely low peak reverse current of 5 μA enhances performance in sensitive electronic circuits.
Certified to the AEC-Q101 automotive standard, the MURS260T3G diode ensures high reliability for automotive and other demanding applications. Its compact dimensions facilitate easy integration onto printed circuit boards for various electronic and power management devices.
Designed for high-speed switching and rectification applications. DO-214AA surface mount package suitable for automated assembly. Wide operating temperature range for industrial and automotive use. High surge current and low forward voltage for efficient power handling.
Automotive-grade quality with AEC-Q101 certification. Compact size allowing space-saving PCB layouts. Low leakage current improves circuit reliability.
This diode is extensively used in electronic components, power management, automotive electronics, and industrial automation systems. It effectively supports switching regulator circuits and power supplies where high efficiency and reliability are crucial.
Explore comprehensive semiconductor and discrete diode selections at EnvMart for all your electronic component needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this model is 2 amperes.
It has a peak reverse repetitive voltage rating of 600 volts.
This diode is packaged in a DO-214AA surface mount package.
The operating temperature range for the MURS260T3G is from -65°C to 175°C.
The peak non-repetitive forward surge current rating is up to 35 amperes.
It features a fast peak reverse recovery time of 75 nanoseconds.
The maximum forward voltage drop is 1.45 volts.
The peak reverse current is rated at 5 microamperes.
This diode has a pin count of 2.
Yes, it is certified to the AEC-Q101 automotive standard.
It uses a single diode configuration.
This model is suitable for high-speed switching and rectification applications in power electronics and automotive electronics.
